Assembly
Handle
2.
both cables are aligned with roller guides before pivoting
NOTE: Make certain the upper ends of each cable are
seated properly in its bracket.
Secure the handle by tightening the plastic knob located 2.
on both the left and right sides of the handle. Remove
and discard any rubber bands, if present. They are for
packaging purposes only.
Chute Assembly
Close the flange keepers to secure the chute assembly 2.
to the chute base. The flange keepers will click into place
when properly secure. See Fig. 3-3.
NOTE: If the flange keepers will not easily click into place,
use the palm of your hand to apply swift, firm pressure to
the back of each.

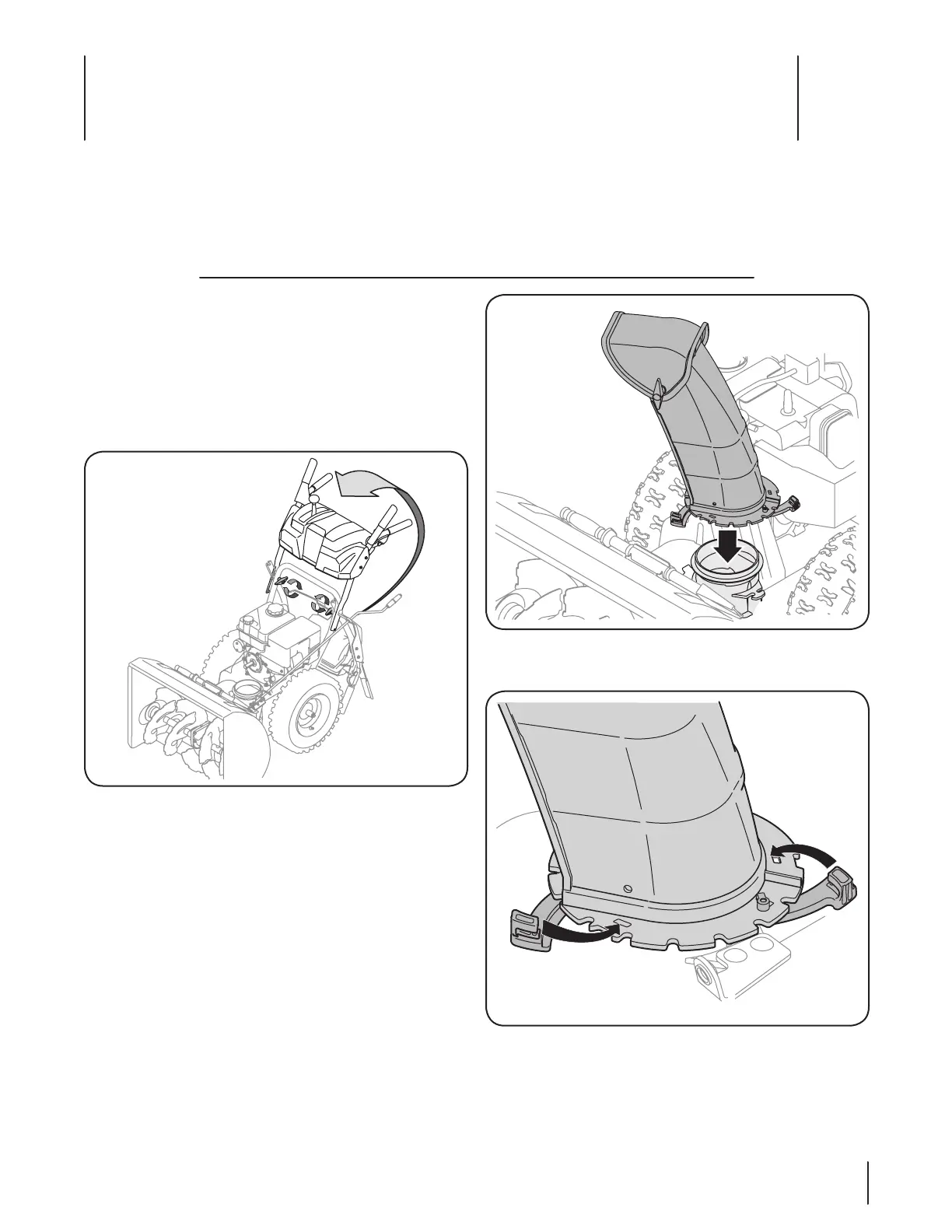

Figure 3-3
