12 Section 3 — ASSembly & Set-Up
Adjustments
Cutting Height
The cutting height adjustment lever is located above the rear left
wheel.
1. Depress height adjustment lever towards wheel.
2. Slide lever to desired position for a change in cutting
height. Refer to Figure 3-10 for low wheel adjustment and
Figure 3-11 for high wheel.

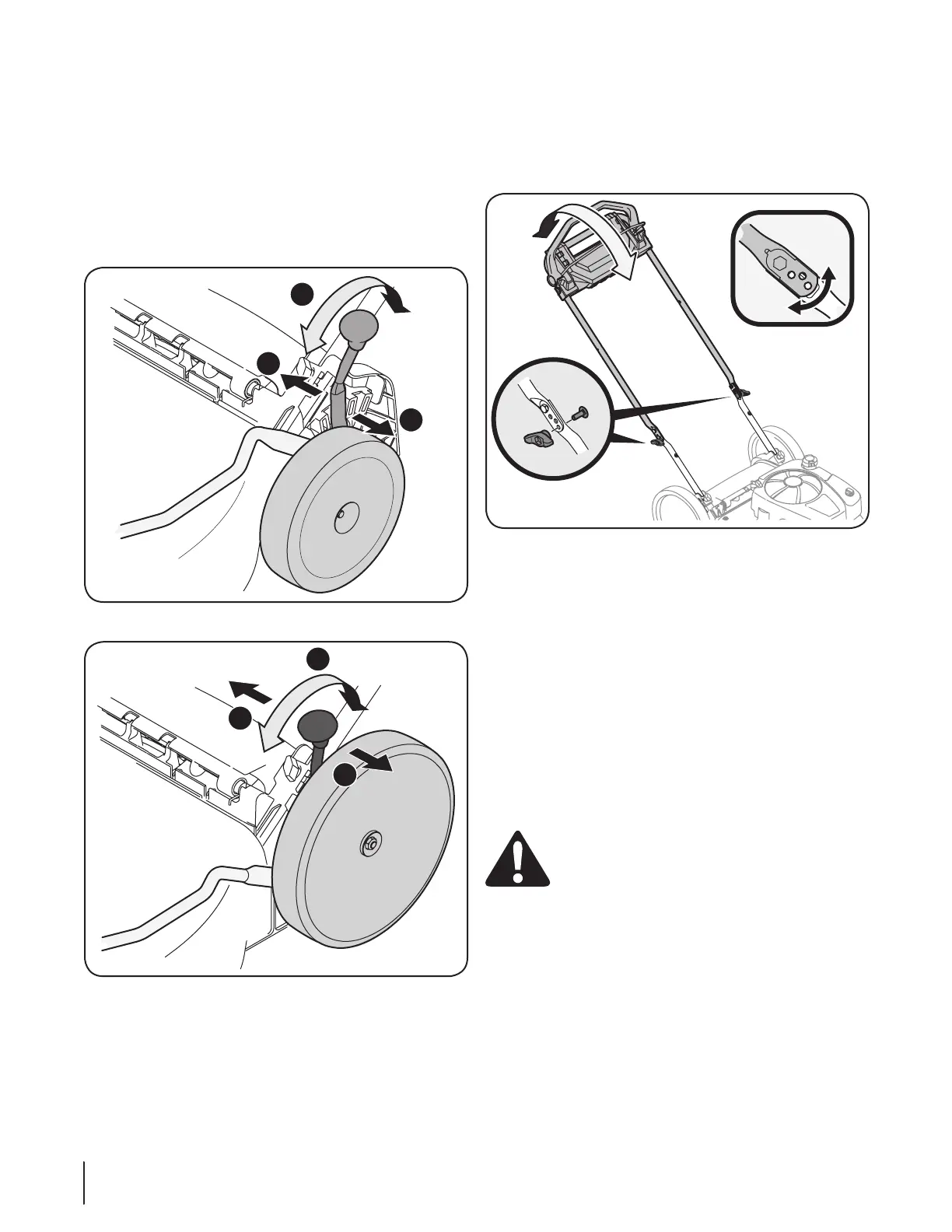

Figure 3-10
Figure 3-11
3. Release lever towards deck and place lever on one of the
six height adjustment teeth.
Handle Pitch
For convenience of operation, you may adjust the pitch of the
handle as follows:
1. Remove wing nuts and carriage bolts from handle. See
Figure 3-12.
Figure 3-12
2. Position the handle in one of the three positions that is
most comfortable. See Figure 3-12 inset.
3. Secure into position with wing nuts and carriage bolts
removed earlier.
Set-Up
Gas and Oil Fill-Up
Refer to the separate engine owner’s manual for additional
engine information.
1. Add oil provided before starting unit for the first time out
of the box.
2. Service the engine with gasoline as instructed in the
separate engine owner’s manual.
WARNING: Use extreme care when handling
gasoline. Gasoline is extremely flammable and the
vapors are explosive. Never fuel the machine
indoors or while the engine is hot or running.
Extinguish cigarettes, cigars, pipes and other
sources of ignition.
