Truma DLE60C User Manual

2

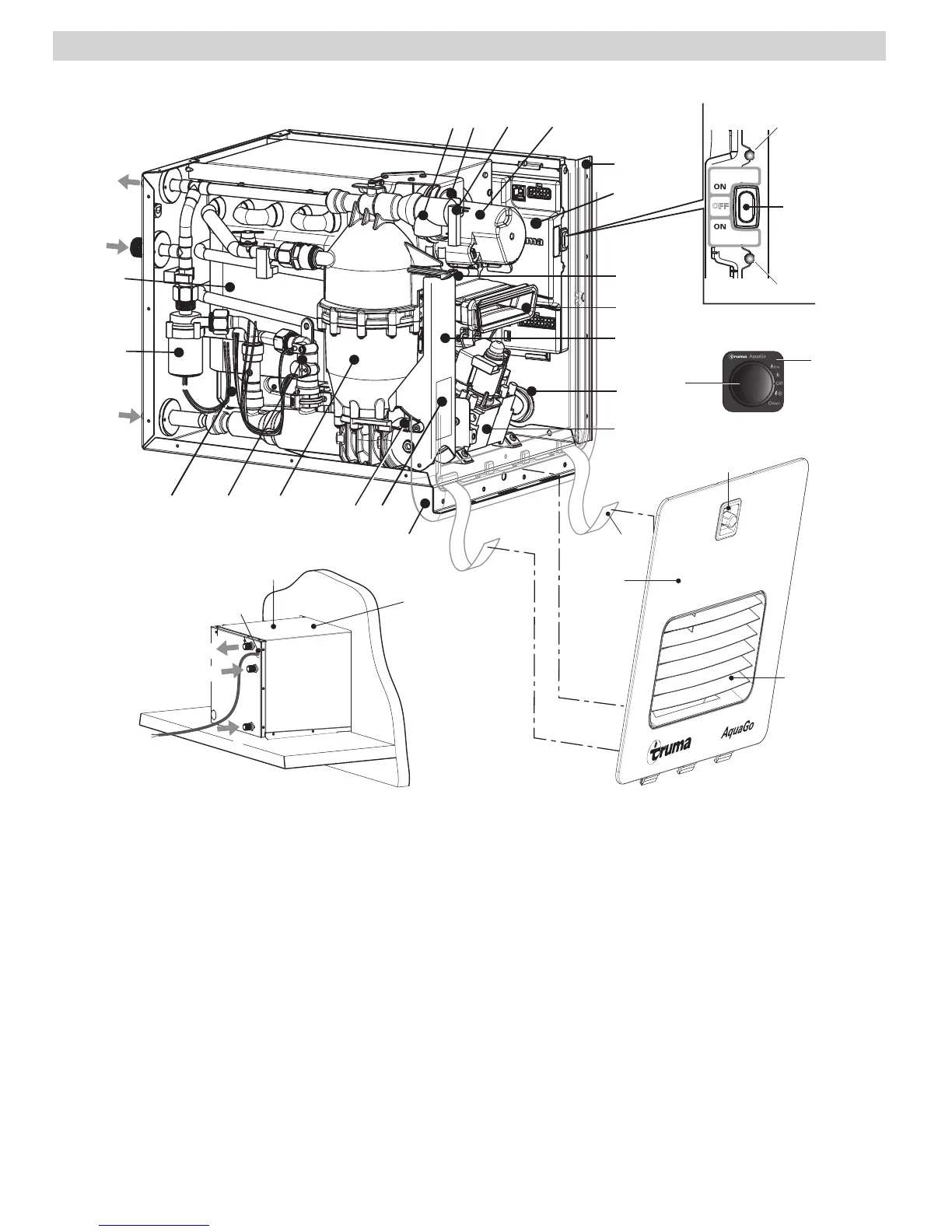

Overview / Designation of parts
Legend
1 Cold water connection 1/2 in. NPT
2 Hot water connection 1/2 in. NPT
3 Circulation line connection 1/2in. NPT
(AquaGo® comfort plus model only)
4 Pressure relief valve
4a Test lever
5 Flue fan
6 Unit casing
7 Control unit
8 POWER switch
9 Latch
10 Flue duct
11 Easy Drain Lever
11a Water inlet filter
12 Gas pipe grommet (side)
13 Gas valve
14 Cover plate
15 Temperature stabilizer
16 Water flow sensor
17 Burner
18 Circulation pump (AquaGo® comfort
and AquaGo® comfort plus models)
19 Heat exchanger
20 Access door (assembly)
21 Turn lock
22 Webbing
23 Venting grid (air inlet, exhaust)
24 Grommet for 12 V cable
(power supply)
25 Type plate
26 Exhaust pressure switch
LED 1 Power ON LED – green
LED 2 Error code LED – red
LED 3 Status LED 3 – yellow
Fig. 1 (Unit Casing/Frame partially omitted)
Fig. 2 (rear view of appliance)
3
2
24
6
Top
1
18
1
2
6
7
12
10
9
11
13
4a4 26 5
15
19
14
1617
3
2511a
27
20
23
21
22
22
LED 1
LED 2
8
LED 3
Power
Power
Truma AquaGo® instant water heater (appliance)
