TSC Printronix MB240T User Manual

60
6.8 Diagnostic
Item
Description
Print Config.
Print current printer configuration to the label. The configuration printout contains printhead test pattern, which is useful
for checking the dot damage on the printhead heater.
Dump Mode
Captures the data from the communications port and prints out the data received by printer. In the dump mode, all
characters will be printed in 2 columns. The left side characters are received from your system and right side data are
the corresponding hexadecimal value of the characters. It allows users or engineers to verify and debug the program.
Dump mode requires 4” wide paper width.
Printhead
Check printhead’s temperature and bad dots.
Display
Check LCD’s color state.
Sensor
Check sensors intensity and reading state.

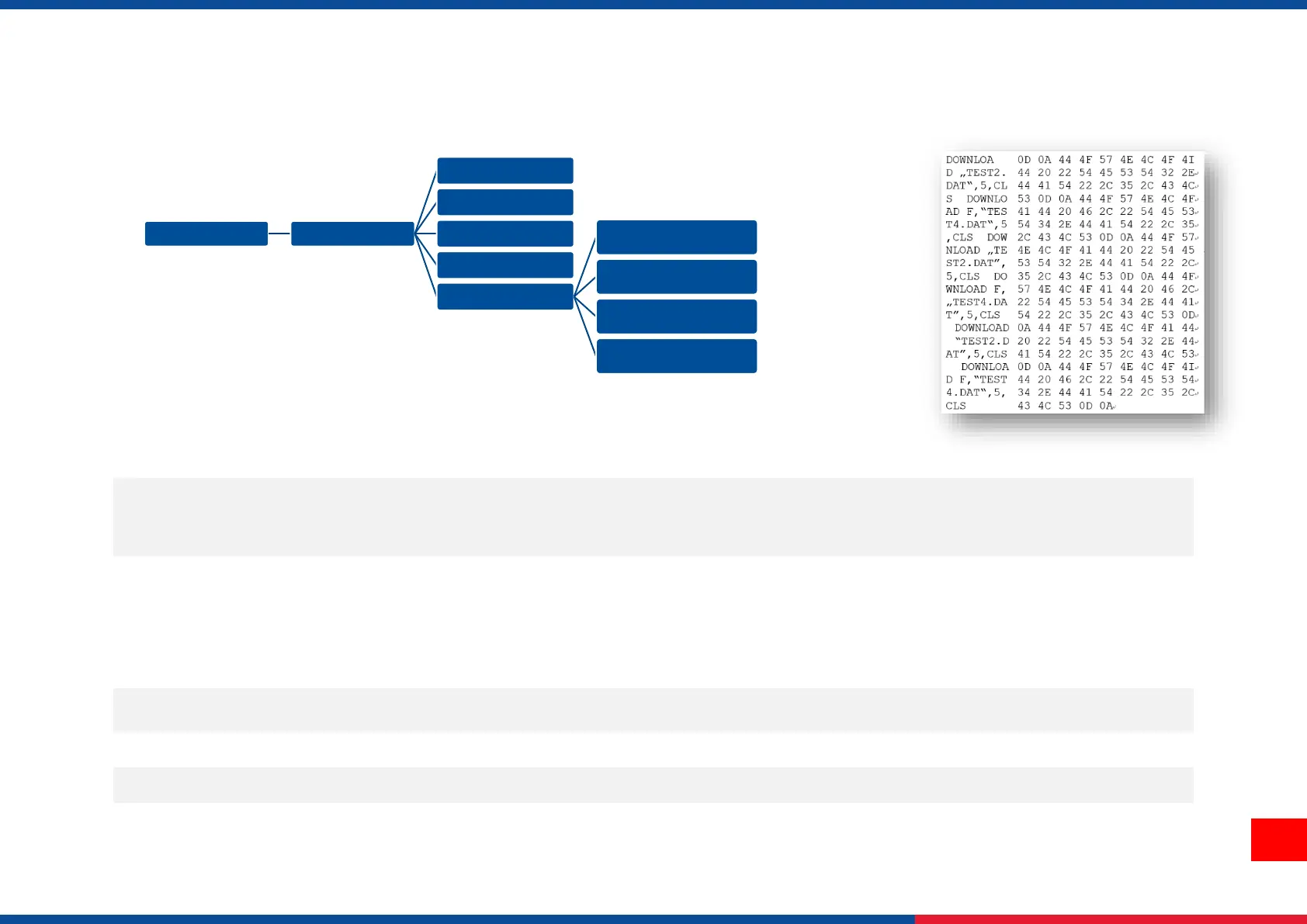

Menu Diagnostic
Print Config.
Dump Mode
Print Head
Display
Sensor
Diag Gap
Diag Black Mark
Diag Ribbon End
Diag Media

TSC Printronix MB240T Specifications

General

Type	Industrial Barcode Printer
Print Method	Thermal Transfer/Direct Thermal
Resolution	203 dpi
Max. Print Speed	6 ips
Max. Print Width	4.09" (104 mm)
Media Type	Label, Tag, Ticket
Media Core Diameter	1" (25.4 mm)
Ribbon Core Diameter	1 inch
Interface	USB, Serial, Ethernet
Power	100-240 VAC, 50/60 Hz
Supported Barcodes	Code 39, Code 128, UPC-A, UPC-E, EAN-8, EAN-13, Interleaved 2 of 5, Codabar, POSTNET, PDF417, QR Code, Data Matrix, MaxiCode
Operating Temperature	41°F to 104°F (5°C to 40°C)
