TSC TC200 Series User Manual

TC200/ TC300/ TC210/ TC310
Bar Code Printer Service Manual
28

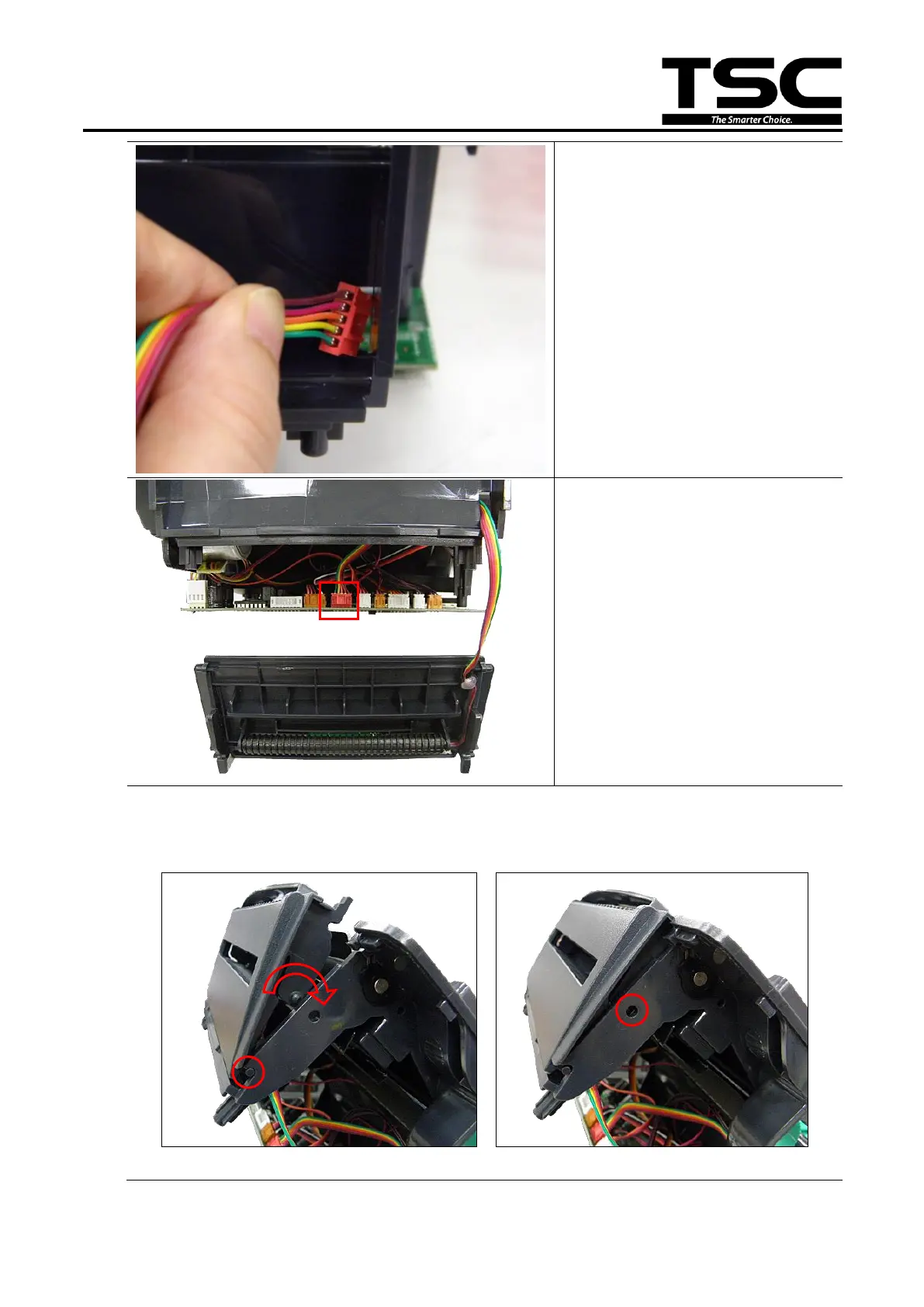

4. Thread the 5-pin peel-off
module harness through the
front slot of lower inner cover.
5. Plug in the peel-off module
harness connector to the
5-pin red socket on the main
board.
Note:
The connector located on J604
for TC210/TC310 series.
The connector located on JP19
for TC200/TC300 series.
6. Embed the tenons into the both sides mortise of lower inner cover and close the
peel-off cover.

TSC TC200 Series Specifications

General

Print Method	Thermal Transfer / Direct Thermal
Resolution	203 dpi
Processor	32-bit RISC CPU
Memory	8 MB SDRAM
Communication Interfaces	USB
Media Handling	continuous
Max Print Length	110 inches
Sensors	Gap/Black Mark
Media Type	Roll feed, die-cut, continuous, fan-fold, tags, ticket in thermal transfer or direct thermal paper
Media Core Diameter	1.0 inch, 1.5 inch
Power Source	AC 100-240V, 50/60Hz
Input	AC 100-240V, 50-60Hz
Output	DC 24V, 2.5A
Max Print Width	4.25 inches
Max Print Speed	6 ips
Label Length	0.39 inches to 110 inches
