U-Line Wine Captain 2000 Series Use And Care Guide

15 U-Line Self Closing Doors

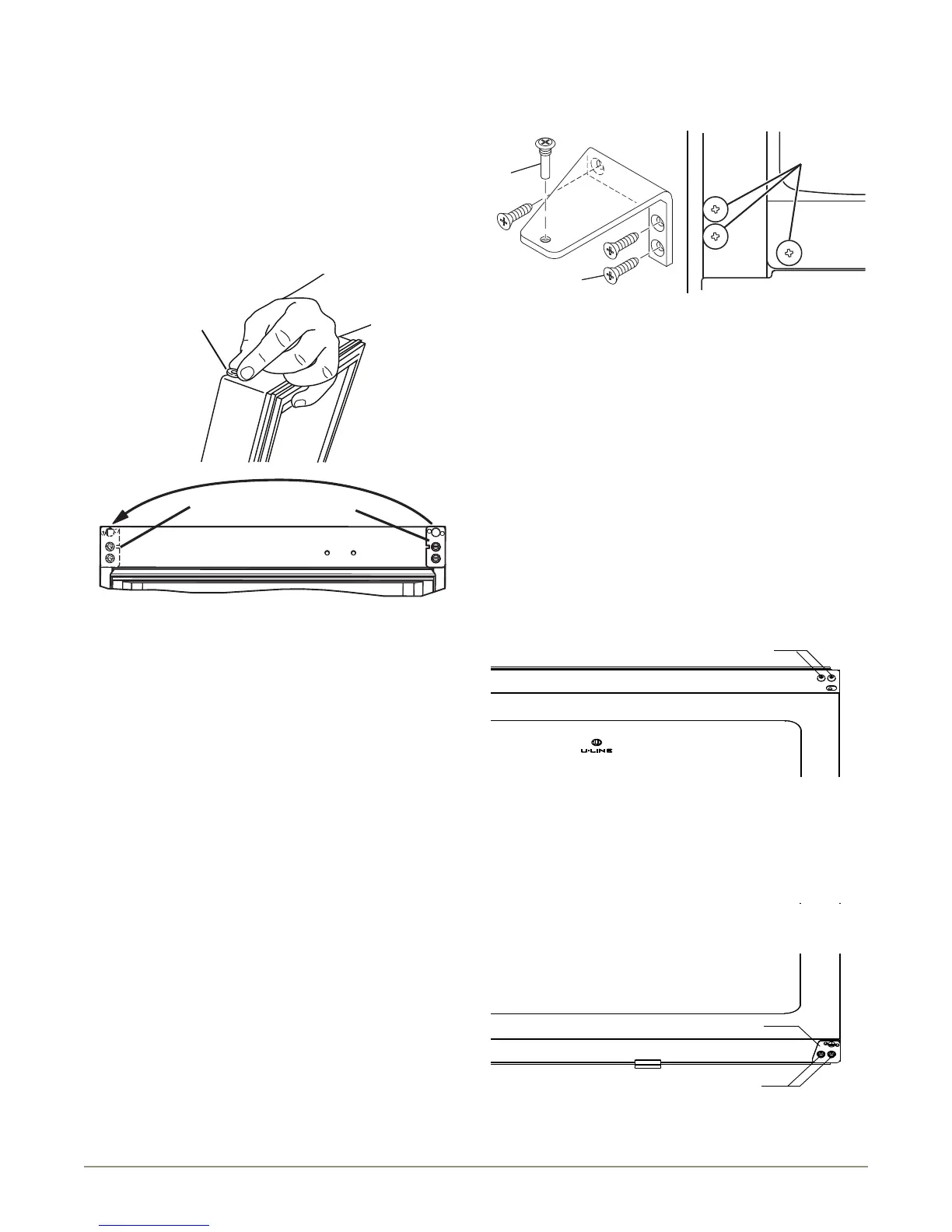

Remove preexisting bottom hinge.
Remove the preexisting bottom hinge (three screws) (2).
Reinstall hinge to top opposite.
Install the hinge just removed from the bottom to the TOP
opposite side of the cabinet (three screws) (2).
Reinstall Hole Plugs.
4. Install plastic screw plugs (three each, top and bottom) (3) into
holes where hinge hardware was removed.
Prepare door for reinstallation.
1. Remove plastic hole plug from top of door handle and reinstall
on opposite side.
2. With bottom of door facing up, remove pivot plate (5) (two
screws).
3. Flip over and install pivot plate on opposite side of door. Ensure
notch in plate faces center.
Install Door.
1. Hold door upright and tilted forward.
2. Lift door on to bottom hinge closer inserts.
3. Tilt door forward into position.
4. Hold door to keep it from falling.
5. Reinstall hinge screw pin (1) into top hinge using a Phillips
screwdriver.
Align and adjust the door:
Align and adjust the door, see DOOR ALIGNMENT AND
ADJUSTMENT on page 13.
Reversing Stainless Steel Glass Doors
Remove Door
1. Hold door to keep it from falling.
2. Remove hinge screw pin (1) from top hinge using a Phillips
screwdriver.
3. Remove door by tilting forward and lifting door off bottom hinge
closer inserts.
4. Reinstall hinge screw pin (1) into top hinge using a Phillips
screwdriver.
Remove hole plugs.
1. Remove plastic screw plugs from (three each, top and bottom)
(3) from new hinge location. Save for reinstallation later.
Remove Stainless Frame
1. Remove two screws from top of door. Save screws for later
installation.
2. Remove pivot plate from bottom of door by removing 2 screws.
Set pivot plate and screws aside for later installation.
1
5
NOTCH
3
1
2
Screws
Top Of Door
Pivot Plate
Screws
Bottom Of Door
