U-Line Wine Captain 2224WC User Guide

U-2218BEVINT-00A
Item Description U-Line P/N
1 Anti tip bracket w/screws 80-54012-00
2 Back panel 80-54175-00
3 Compressor electricals only 80-54149-00
4 Compressor w/electricals 80-54150-00
5 Condenser assembly 80-54022-00
6 Condenser fan w/screws 80-54014-00
7 Display module 80-54007-00
8 Door assembly w/o hinges 80-54018-00
9 Drain pan w/double sided tape 80-54217-00
10 Drain trough 80-54480-00
11 Drier 80-54055-00
12 Evap fan w/cover and screws 80-54151-00
13 Evaporator assembly 80-54152-00
14 Evaporator cover 80-54021-00
15 Evaporator fan 80-54321-00
16 Frame assembly, black 80-54826-00
17 Gasket, door, injection molded 80-54003-00
18 Glass shelf (1) w/brackets 80-54015-00
19 Grille w/screws 80-54011-00
20 Hinge covers(2 pcs) 80-54001-00
21 Hinge mounting hole covers(4) 80-54024-00
22 Hinges(2) w/screws and covers 80-54013-00
23 LED light strip and cover assy 80-54000-00
24 Leg Levelers (4) 80-54019-00
25 Main board (no case or wires) 80-54008-00
26 Packaging 80-54143-00
27 Power cord 80-54171-00
28 Rack Assembly Bottom 80-54030-00
29 Rack Assembly Middle 80-54028-00
30 Reed switch 80-54134-00
31 Slide Assembly Long 80-54047-00
32 Slide Assembly short 80-54048-00
33 Thermistor (1 pc) 80-54006-00
34 Thermistor cover and pin 80-54023-00
35 Tool, leg leveler 80-54794-00
36 WIFI antenna 80-54804-00
37 Wire harness 80-54251-00
38 Wood fronts w/screws 80-54497-00

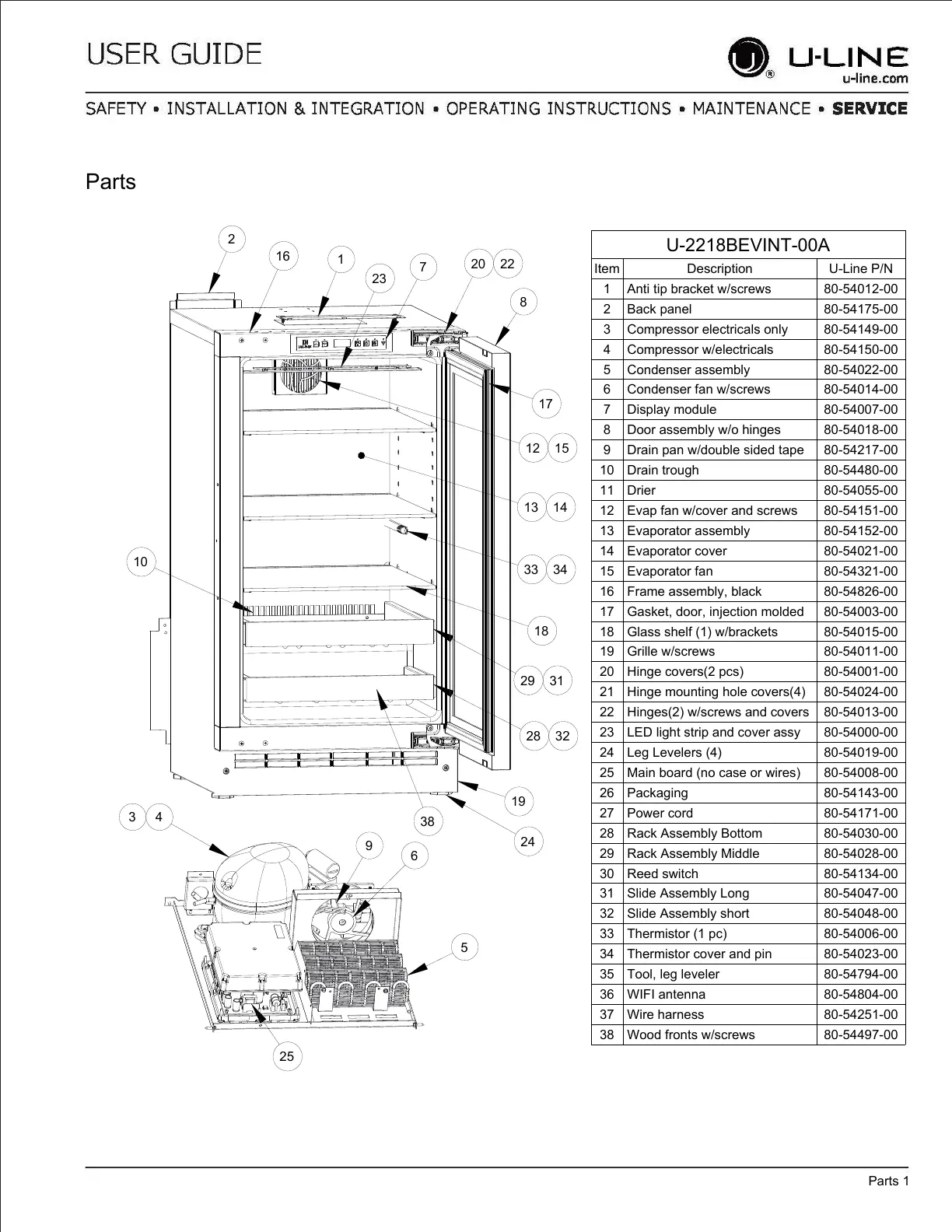

Parts
Parts 1
1
2
5
3 4
6
7
8
9
38
16
17
23
25
33 34
24
29 31
10
12 15
28 32
19
13 14
18
20 22
