7. 4. 6 ASSEMBLY
1 Slide the drip tray into place..
2 Lubricate the tap piston, the hexagonal joint and the mixer
at the points indicated in figure 16 (NG6) or figure 17 (NG10),
using only the grease that came with the machine or other
grease for use with food.

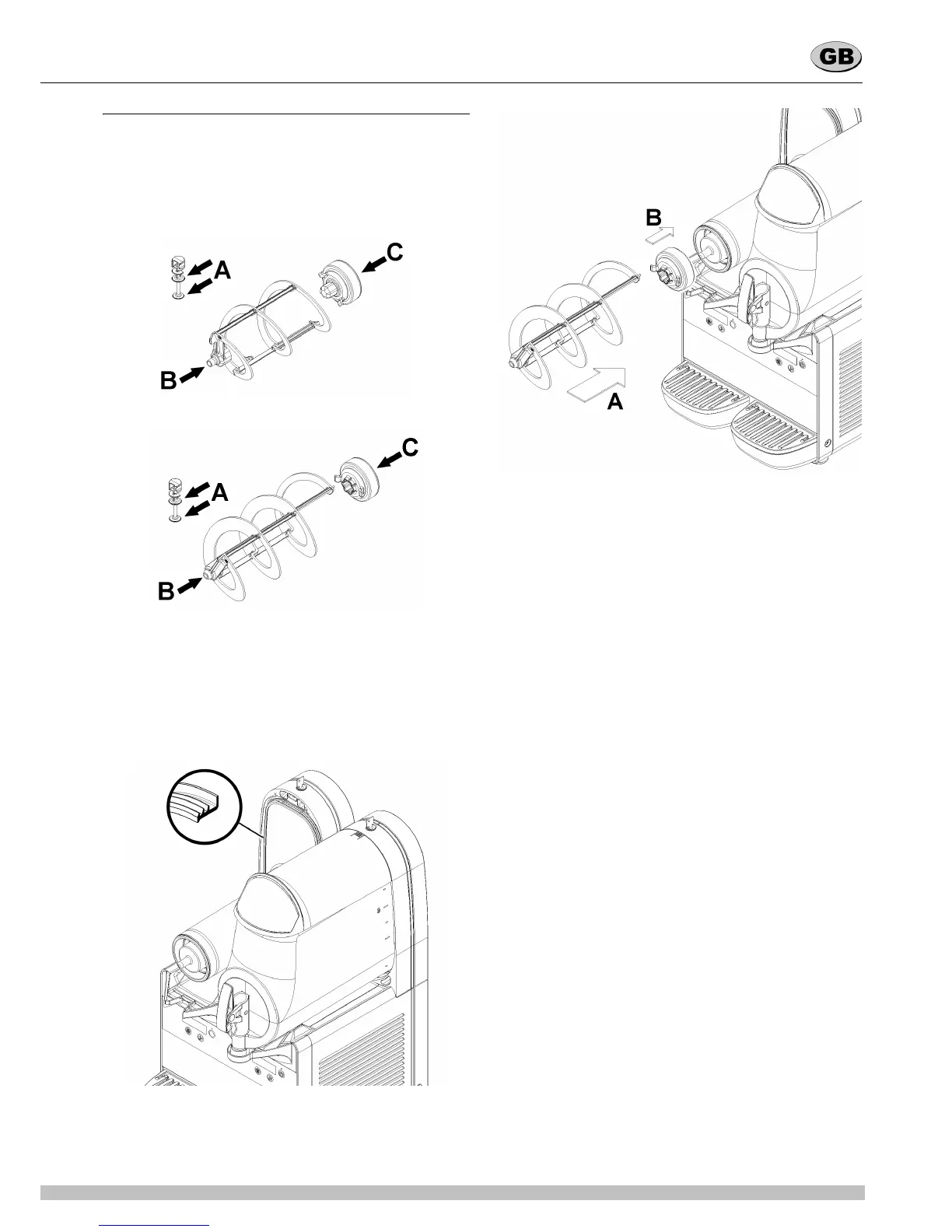

figure 16
figure 17
3 Reassemble the tap on the container in reverse order
compared to that shown in figure 11.
4 Replace the container gasket.
N.B. the rim with the greater diameter must be rested on the
rear wall (see figure 18).
figure 18
5 Reassemble the hexagonal joint and then the mixer (see
figure 19).
figure 19
6 Replace the container by pushing it towards the back wall,
making sure it fits properly onto the gasket. The locking lever
will be lowered until it rests on the drip tray surface (see figure
