Ultima Competition Series User Manual

INSTALLATION INSTRUCTIONS - ULTIMA PERFORMANCE AIR CLEANER

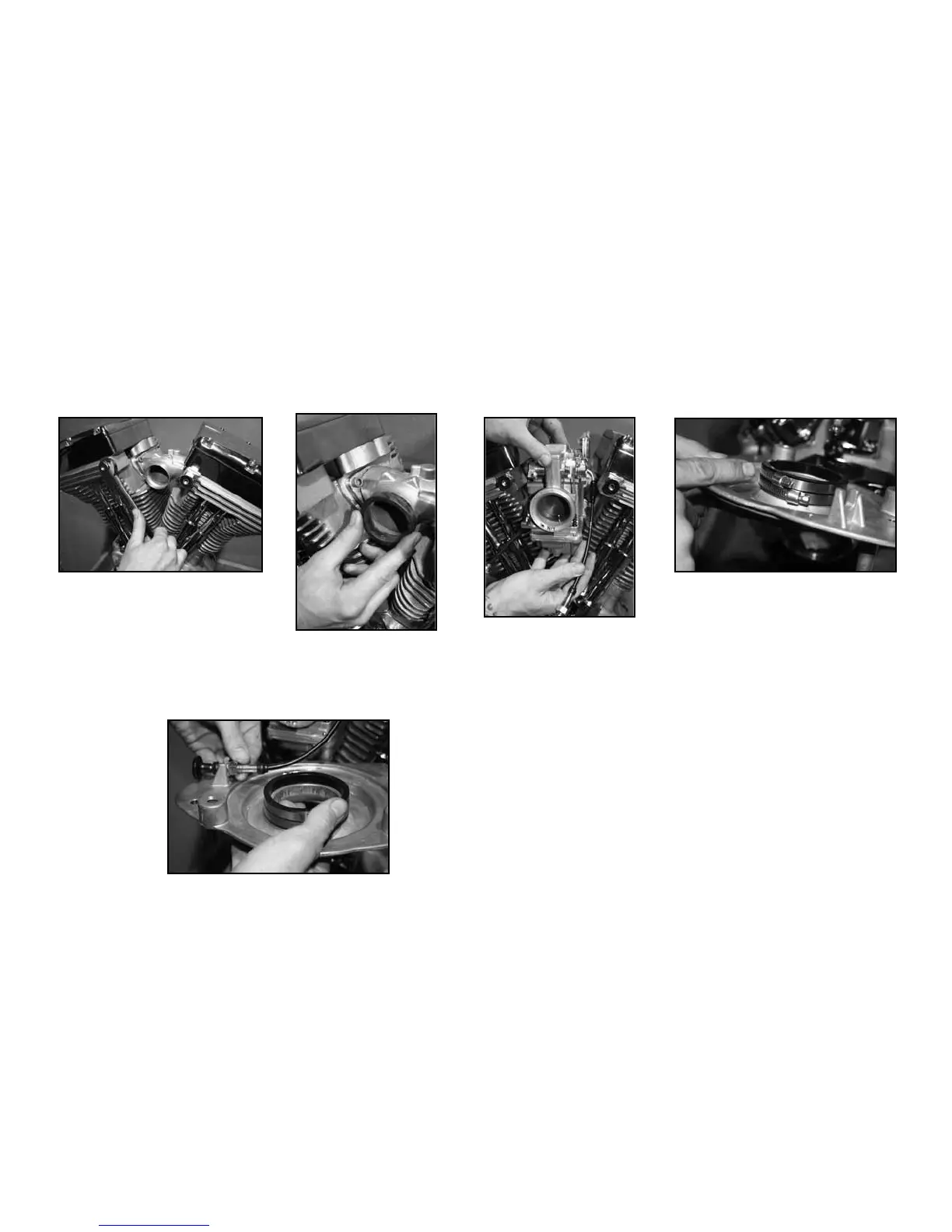

Step 1: Install the head
breather/spacer into the head
using a quality pipe thread sealant
on the 1/2-13 threads. Do not
overtighten.
Step 2: Install carb to
manifold seal onto the
manifold.
Step 3: Install carb into the
manifold. Lightly lubing the seal
beforehand will aid in seating
the carb fully into the manifold.
Leave enrichener facing forward.
Step 4: Install coupling onto the air
filter backing plate after installing
both 3” hose clamps onto the
coupling. Larger I.D. on coupler goes
to the backing plate.
Step 5: Install enrichener knob onto the backing plate. Do
not fully tighten at this time.
Step 6: Install backing plate/coupler onto the carburetor.
Lightly lubing the coupler will aid in fully seating assembly
onto the carb. Do not tighten hose clamps at this time.
