Adjustments of vertical deflection factor V/div gear position can be set to coarse adjustment
and fine adjustment.
For coarse adjustment, V/div can be adjusted in step of multiple of 1, 2 and 5, the V/div
range is 1mV/div～20V/div.
Fine adjustments refer to changing deflection factor with smaller stepping within the current
vertical gear position range. Vertical deflection factor can be consecutively adjusted within
all vertical gears.

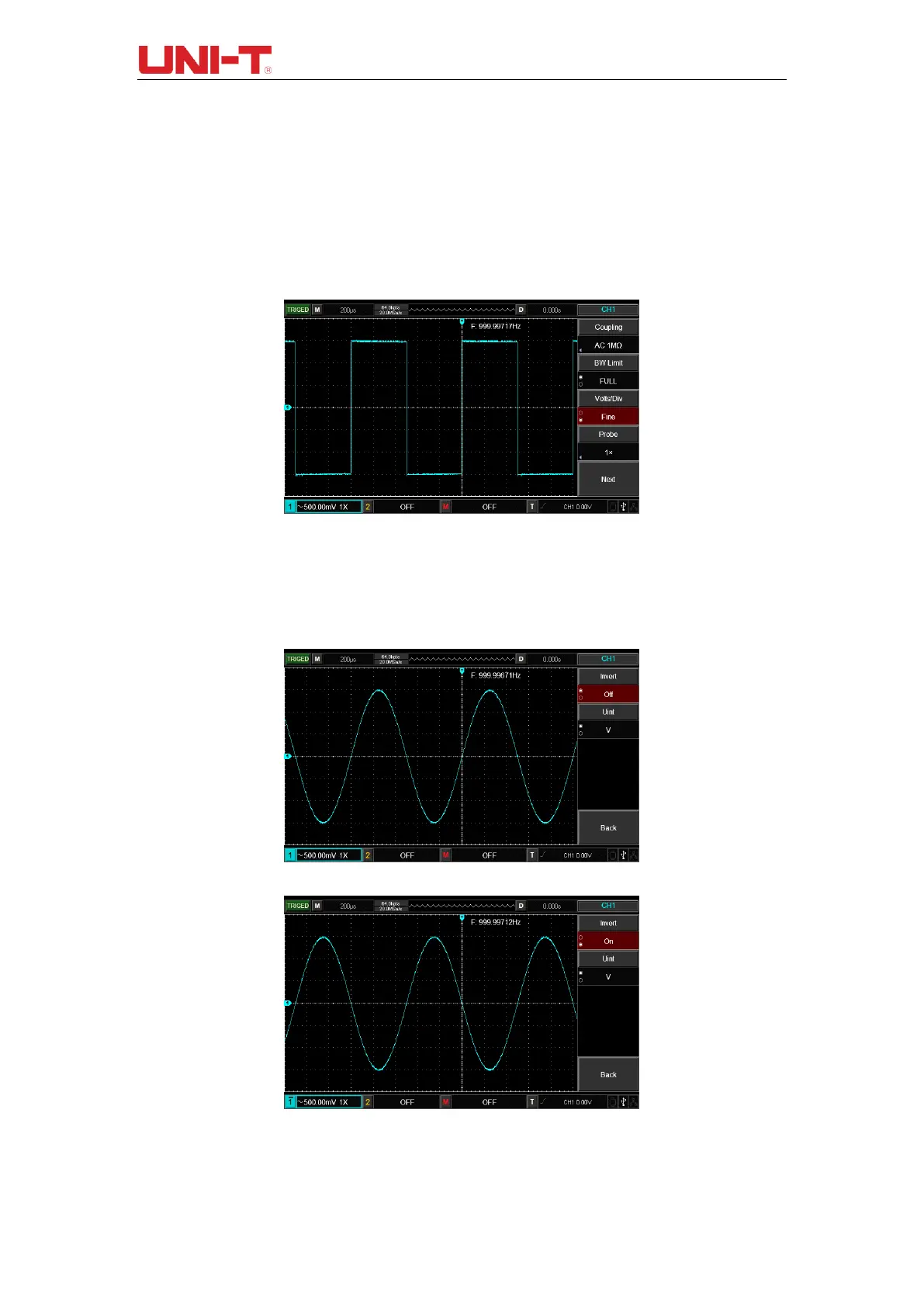

Figure 2-7 Coarse and Fine Adjustment of Vertical Deflection Factors
2.5 Settings of waveform inverting
Waveform inverting can be set by F5 function button. The measured input signal will be
displayed with 180 degrees difference. Please see Figure 2-8 for a non-inverted waveform
and Figure 2-9 for an inverted waveform.
Figure 2-8 Vertical Channel Inverted Settings (Invert: OFF)
Figure 2-9 Vertical Channel Inverted Settings (Invert: ON)
