PREPARATION
Before beginning installation of product, make sure all parts are present. If any part is missing or
damaged, do not attempt to assemble the product. Compare parts to package contents list and
hardware contents list.
Estimated Installation Time: 2 hours.
Tools Required for New Installation (not included): pipe wrench, pliers, Phillips screwdriver, pipe clamp,
2-step PVC glue system (primer and sealer), thread tape, tire gauge.
Parts Required for New Installation (not included): well seal, 1-1/4 in. male PVC adapter (2), 1 in. male
PVC adapter, 1-1/4 in. foot valve, 1-1/4 in. PVC pipe and couplings, 1 in. PVC pipe and couplings, 1-1/4
in. PVC elbow, 1 in. discharge tee, galvanized bushing, pressure gauge (optional) or pipe plug, 1-1/4 in.
union (optional), 1 in. union (optional), electrical wire, electrical wire strain relief, shut off valve (optional).
IL1104
Water Level
25 ft.
Max
Suction
Lift
3/4 or 1 in.
Discharge Pipe
1-1/4 in.
Suction
Pipe
Discharge
to Home
Pipe
Support
Foot Valve
1
FOR USE WITH A PRESSURE TANK. DO NOT
USE FOR IRRIGATION APPLICATIONS!

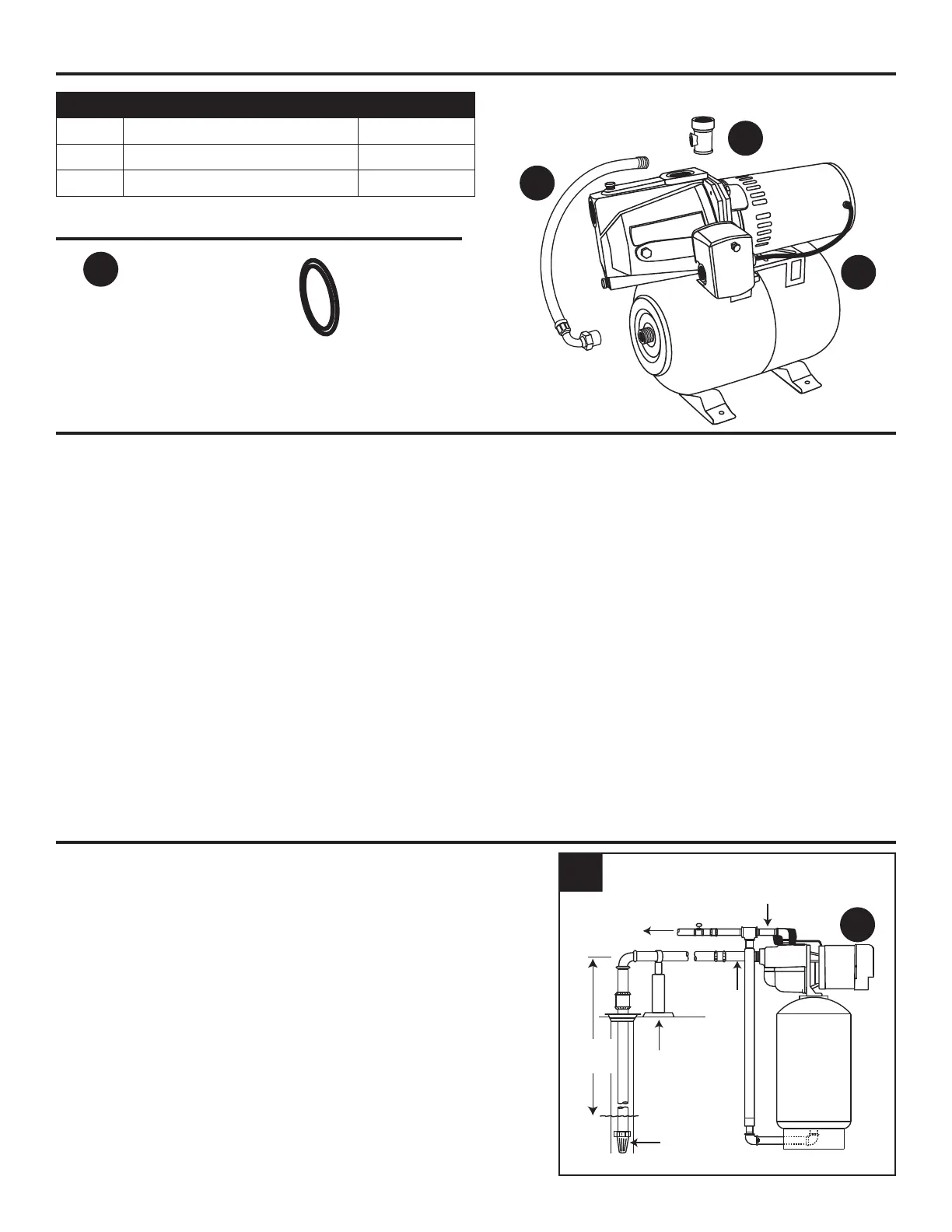

Typical Pump Setup
1. Shallow well jet pumps are designed for use
where the suction lift is 25 ft. or less. They
can be used with drilled or cased wells.
A
GENERAL PUMP INFORMATION
PART DESCRIPTION QUANTITY
A Pump/Tank 1
B Tank Hose 1
C Tank Tee 1
B
AA
Tank Hose
Gasket
x 1
HARDWARE CONTENTS
PACKAGE CONTENTS
C
To Next Page
