V2 Gold Series User Manual

ENGLISH

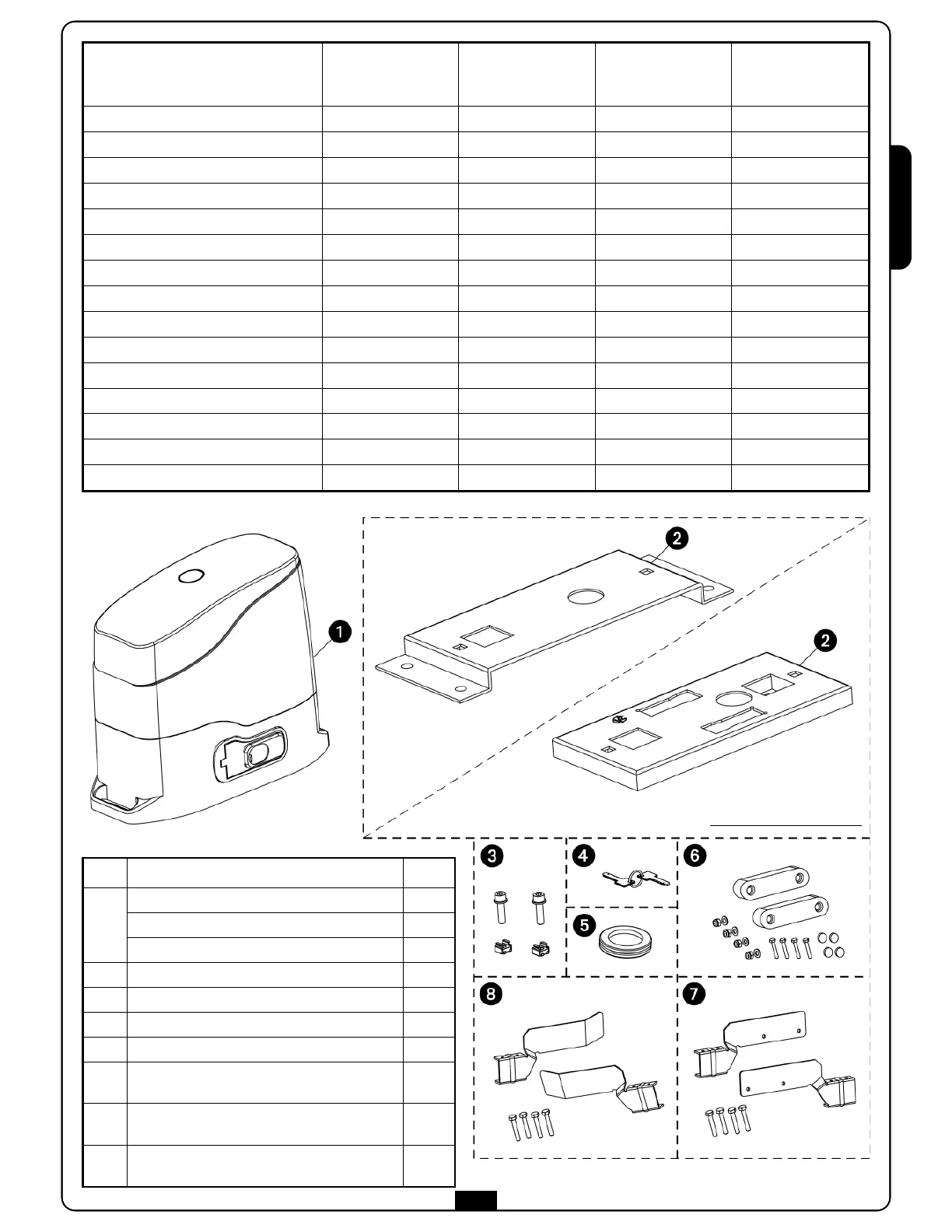

Ref Description Q.ty
1
• Electro-mechanical actuator 1
• Capacitor 1
• Control unit 1
2 Metal fastening plate 1
3 Cage nuts + Bolts M8 X 30 + Washers 2
4 Motor overriding key 2
5 Wire lead gasket 2
6
Magnetic limit switch
(only for the model with magnetic limit switch)
2
7
Magnet holder
(only for the model with magnetic limit switch)
1
8
Mechanical limit switch
(only for the model with mechanical limit switch)
2
TECHNICAL
SPECIFICATIONS
GOLD600D-230V
GOLD600DM-230V
GOLD600D-120V
GOLD600DM-120V
GOLD400D-230V
GOLD400DM-230V
GOLD400D-120V
GOLD400DM-120V
Gate maximum weight 600 Kg 600 Kg 400 Kg 400 Kg
Power supply 230V / 50Hz 120V / 60Hz 230V / 50Hz 120V / 60Hz
Maximum power 500 W 500 W 350 W 400 W
Idling current 1.6 A 3.2 A 1.1 A 2.6 A
Full load current 2 A 4 A 1.4 A 3.5 A
Capacitor 16 µF 40 µF 10 µF 35 µF
Gate maximum speed 0.16 mt/sec 0.16 mt/sec 0.16 m/s 0.16 m/s
Maximum thrust 480 N 480 N 380 N 380 N
Duty cicle 30% 30% 30% 30%
Pinion M4 - Z18 M4 - Z18 M4 - Z18 M4 - Z18
Operation temperature -20°C ÷ +60°C -20°C ÷ +60°C -20°C ÷ +60°C -20°C ÷ +60°C
Weight 10 Kg 10 Kg 10 Kg 10 Kg
Protection IP44 IP44 IP44 IP44
Maximum load on 24 VACattachments 3W 3W 3 W 3 W
Protection fuses F1 = 5A F1 = 8A F1 = 5 A F1 = 8 A
Accessory code MSM002
27

V2 Gold Series Specifications
