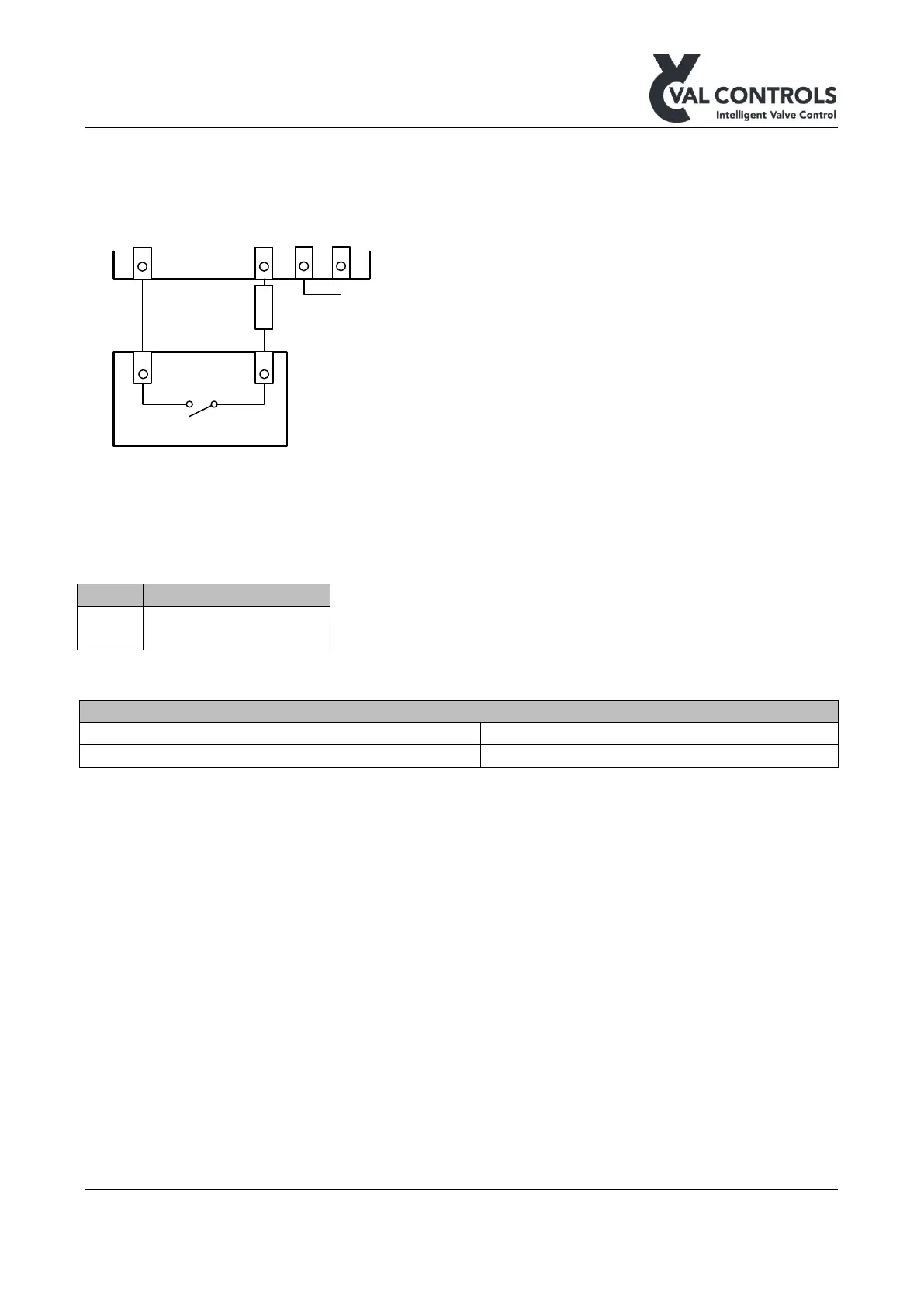

4.2 Digital input – DI12

DI12 substitutes AI0

Switch

DI12

+ -

1kΩ ½W

2 6

The external resistor and connection between terminal 2 and 6 must be mounted to get the correct

functionality.

4.2.1 Terminals

DI12

1 (+)

5 (-)

4.2.2 Electrical specifications

DI12

Type

Switch

Cable length

1000 meters
