Vespa LX 50 4T User Manual

01_06

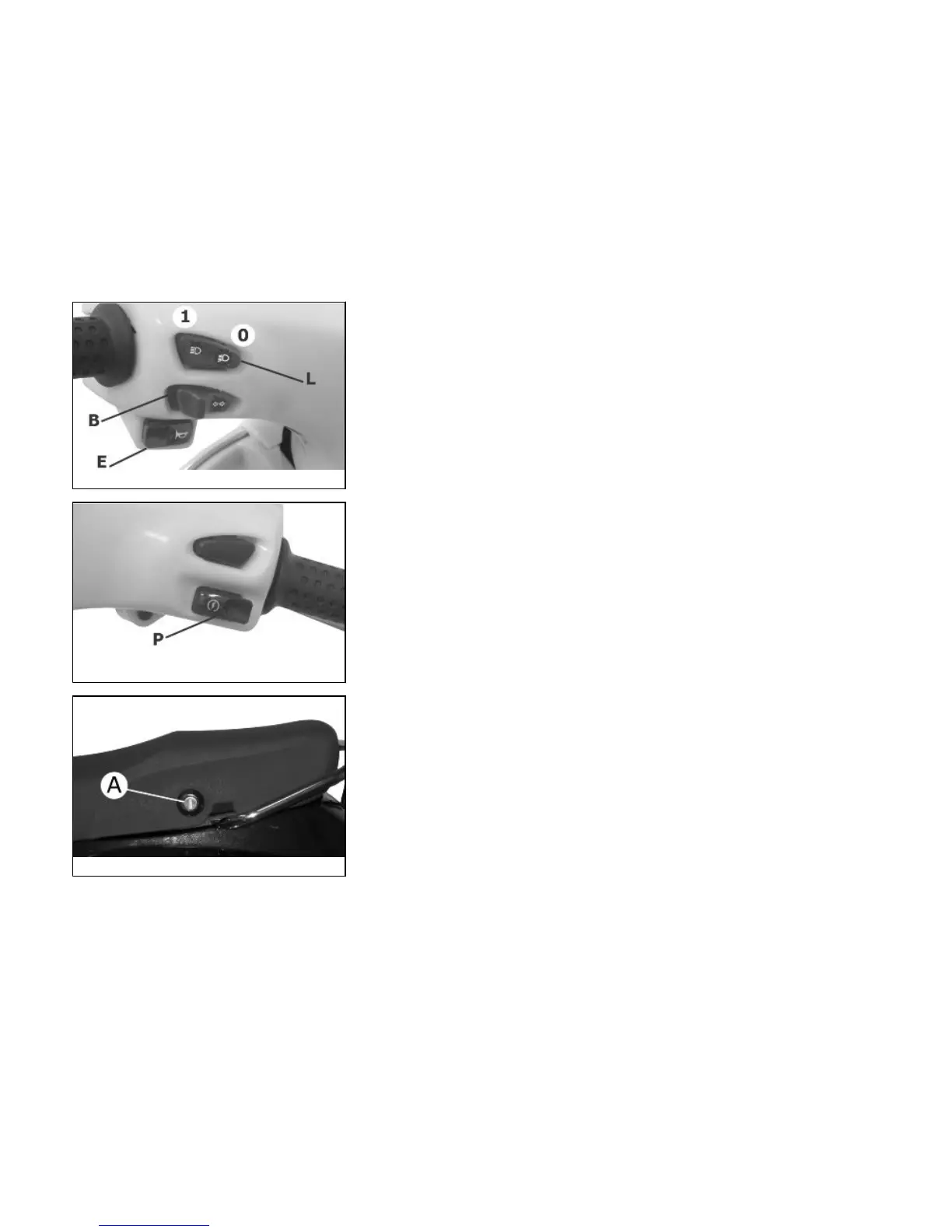

Light switch (01_06)
0 = Dipped beam and position light
1 = High beam and position light
01_07
Start-up button (01_07)
To start the engine, press the starter button, «P», after pulling either one of the two
brake levers.
01_08
Opening the saddle (01_08)
Insert the key into the saddle lock «A», turn it anticlockwise and tip the saddle forward.
12
1 Vehicle

Vespa LX 50 4T Specifications

General

Engine Type	Single-cylinder, 4-stroke
Displacement	49.9 cc
Cooling System	Air-cooled
Fuel System	Carburetor
Front Brake	200 mm disc
Rear Brake	110 mm drum
Front Tire	110/70 - 11"
Rear Tire	120/70 - 10"
Height	1, 140 mm
Transmission	Automatic
Fuel Tank Capacity	7 liters
Seat Height	785 mm
Dry Weight	96 kg
Max Power	4.35 hp @ 8, 250 rpm
Length	1, 770 mm
Width	705 mm
Front Suspension	Single arm with helical spring and hydraulic shock absorber
