6

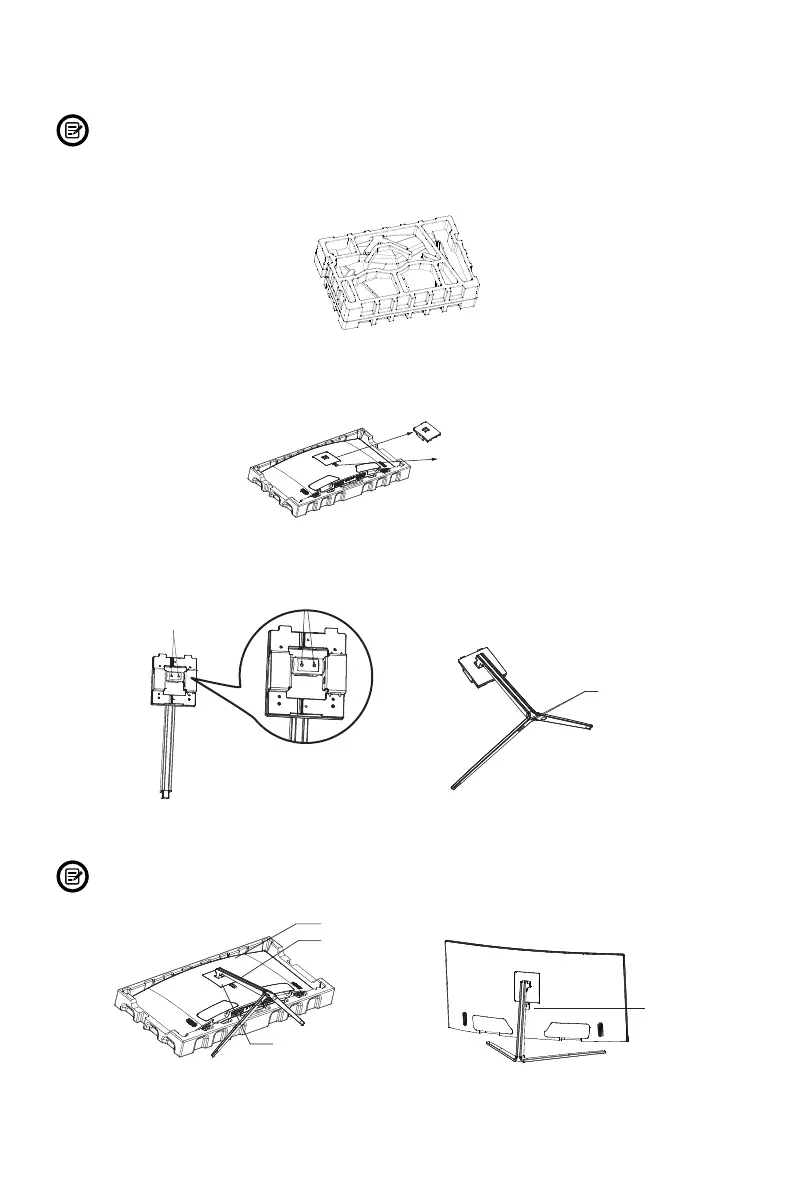

Section 4: Stand Installation
Keep the foam over the monitor before attaching the stand.
1. Open the package, take out the product with foam still attached, and gently place it on a
desktop or table.
2. Take out the two parts of the stand, remove the foam covering the back of the monitor, and
press the button to remove the stand plate.
Button
Stand Plate
3. Use the included screwdriver and two 12mm NO.1 screws to fasten the stand plate to the
stem. Next, use the remaining NO.1 screws to fasten the base to the stem.
NO.1 Screw
14mm x 2
Stand Stem
NO.1 Screws
12mm x 2
4. Insert the stand’s plate into the opening on the back of the monitor. It should click into
place. Make sure the stand is securely attached to the back of the monitor then remove the
monitor from the remaining foam section and stand it up on a table or desk as desired.
If needed, the stand can easily be detached from the monitor by pressing the button near
the stand plate. Make sure the monitor is laid on a at surface before removing the stem.
Monitor
Stem
Stand Plate
Button
To Next Page
