Vizio D39H-D0 User Manual

2

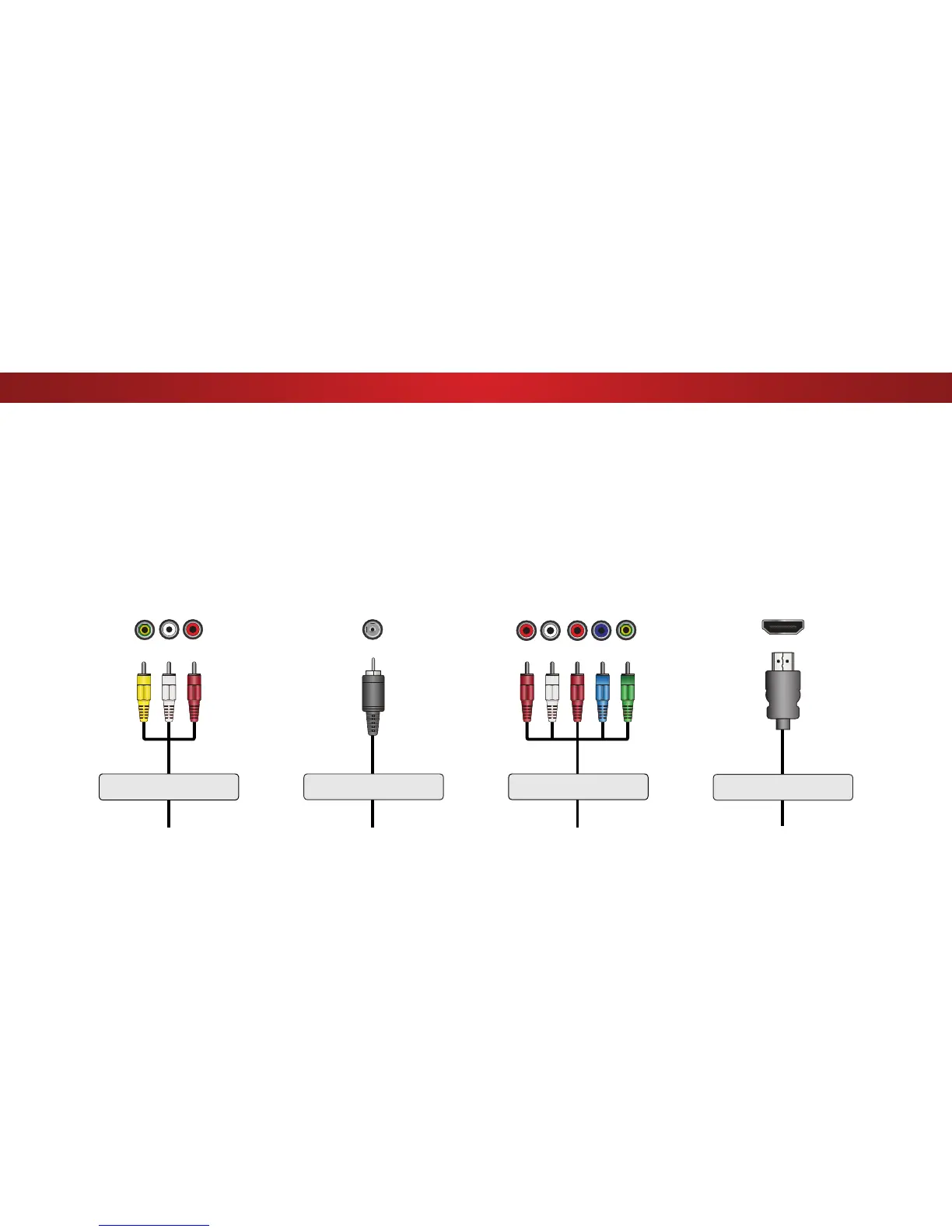

CONNECTING A DEVICE - AUDIO & VIDEO CABLE TYPES
AV CABLE
AV cables (or Composite cables) are the
traditional way of connecting your devices to
your TV. Video signals are sent over the yellow
connector while audio is sent over the red and
white connectors.
• Video Resolutions up to 480i
• Analog Connection
• Audio and Video Signals
GOOD
COMPONENT VIDEO
Y/V L R
COAXIAL CABLE
Coaxial cables are the traditional way of
connecting antennas and cable television
signals to your TV. Coaxial cables carry both
audio and video signals through a single
connector.
• HD Video Resolutions up to 1080i
• Analog Connection
• Audio and Video Signals
BETTER
COAXIAL CABLE
Coaxial
COMPONENT CABLE
Component cables are designed to carry high
denition video signals along with additional
audio connections. Colors are delivered with color
information split up three dierent ways over
three connectors for video (separated into Red,
Blue and Green signals) and the left and right
audio connectors (Red and White).
• HD Video Resolutions up to 1080p
• Analog Connection
• Audio and Video Signals
HDMI CABLE
HDMI is the intelligent, all-digital interface that
delivers both dazzling quality and unmatched ease
of use. HDMI technology transmits crystal-clear
digital video along with multi-channel surround
audio. HDMI-connected devices have the ability
to automatically adjust themselves for optimal
viewing.
• HD Video Resolutions up to 1080p
• HD Audio
• Digital Connection
• Audio and Video Signals
BETTER
COMPONENT VIDEO
R L Pr/Cr Pb/Cb Y
HDMI
HDMI
BEST
14

Vizio D39H-D0 Specifications

General

Screen shape	Flat
Response time	- ms
Display diagonal	38.5 \
Display brightness	- cd/m²
Display resolution	1366 x 768 pixels
Display technology	LED
Native aspect ratio	16:9
Native refresh rate	120 Hz
LED backlighting type	Full-Array
Contrast ratio (dynamic)	200000:1
Display number of colors	16.78 million colors
Motion interpolation technology	-
3D	No
Number of OSD languages	3
On Screen Display (OSD) languages	ENG, ESP, FRE
Audio decoders	DTS
RMS rated power	20 W
Number of speakers	2
DVI-D ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Component video (YPbPr/YCbCr) in	1
Remote control type	XRT122
Sustainability certificates	ENERGY STAR
Power consumption (standby)	0.5 W
Power consumption (typical)	30 W
Product color	Black
Panel mounting interface	100 x 100 mm
Package depth	132.08 mm
Package width	970.03 mm
Package height	614.93 mm
Package weight	7900 g

Weight and Dimensions

Depth (with stand)	210.06 mm
Width (with stand)	882.65 mm
Height (with stand)	576.07 mm
Weight (with stand)	6400 g
Depth (without stand)	73.91 mm
Height (without stand)	520.95 mm
Weight (without stand)	6200 g
