Front view

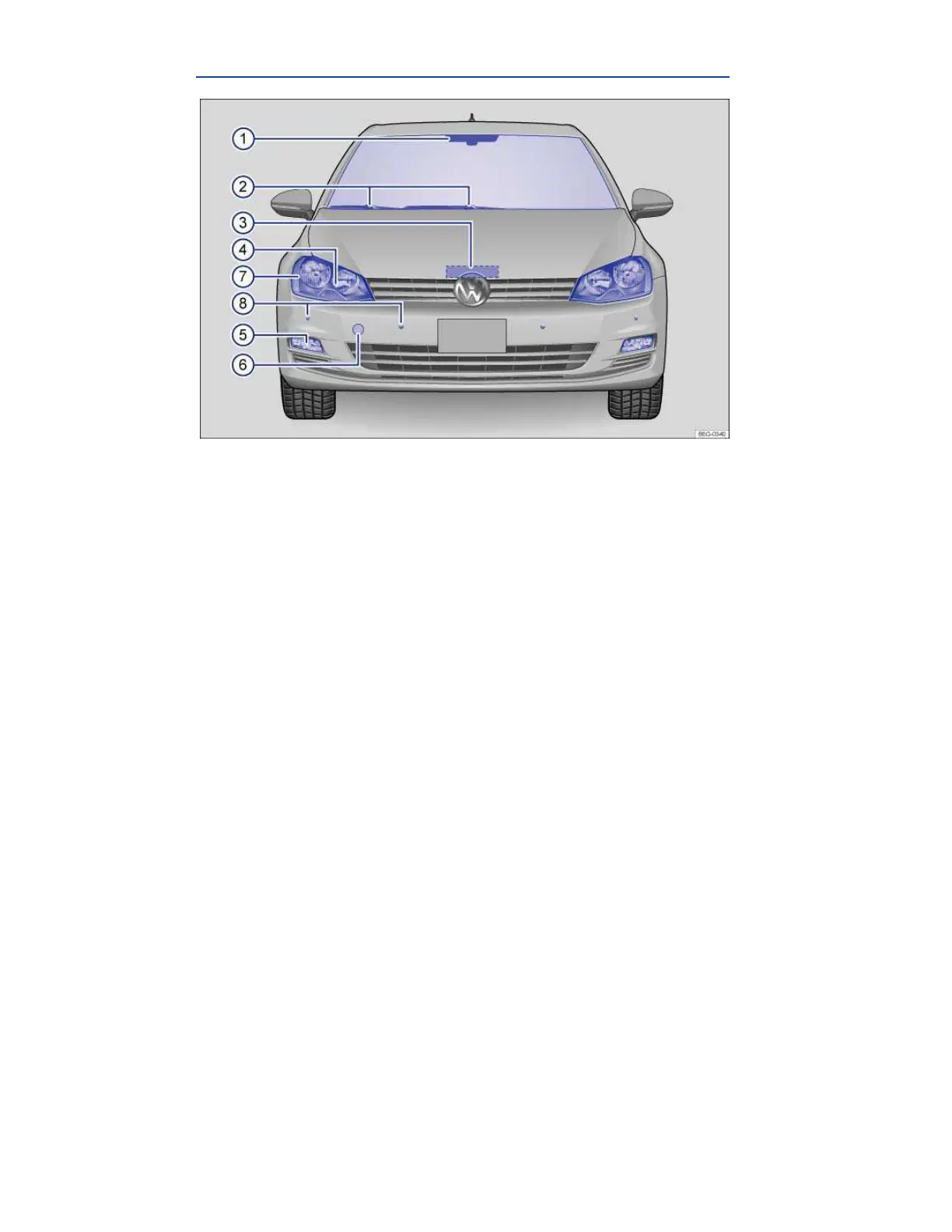

Fig. 2 Vehicle front overview.
Key to fig. 2:
(1) Inside mirror with sensor on mirror base for:
– Rain sensor (if equipped)
– Low-light sensor (if equipped)
– Light Assist (if equipped)
(2) Windshield wipers
(3) Engine hood release
(4) Headlights (on left and right)
(5) Fog lights/static cornering lights (on left and right)
(6) Threaded hole for the front towing eye (behind cover)
(7) Side marker/parking lights (on left and right)
(8) Park Distance Control (PDC) sensors (if equipped)
