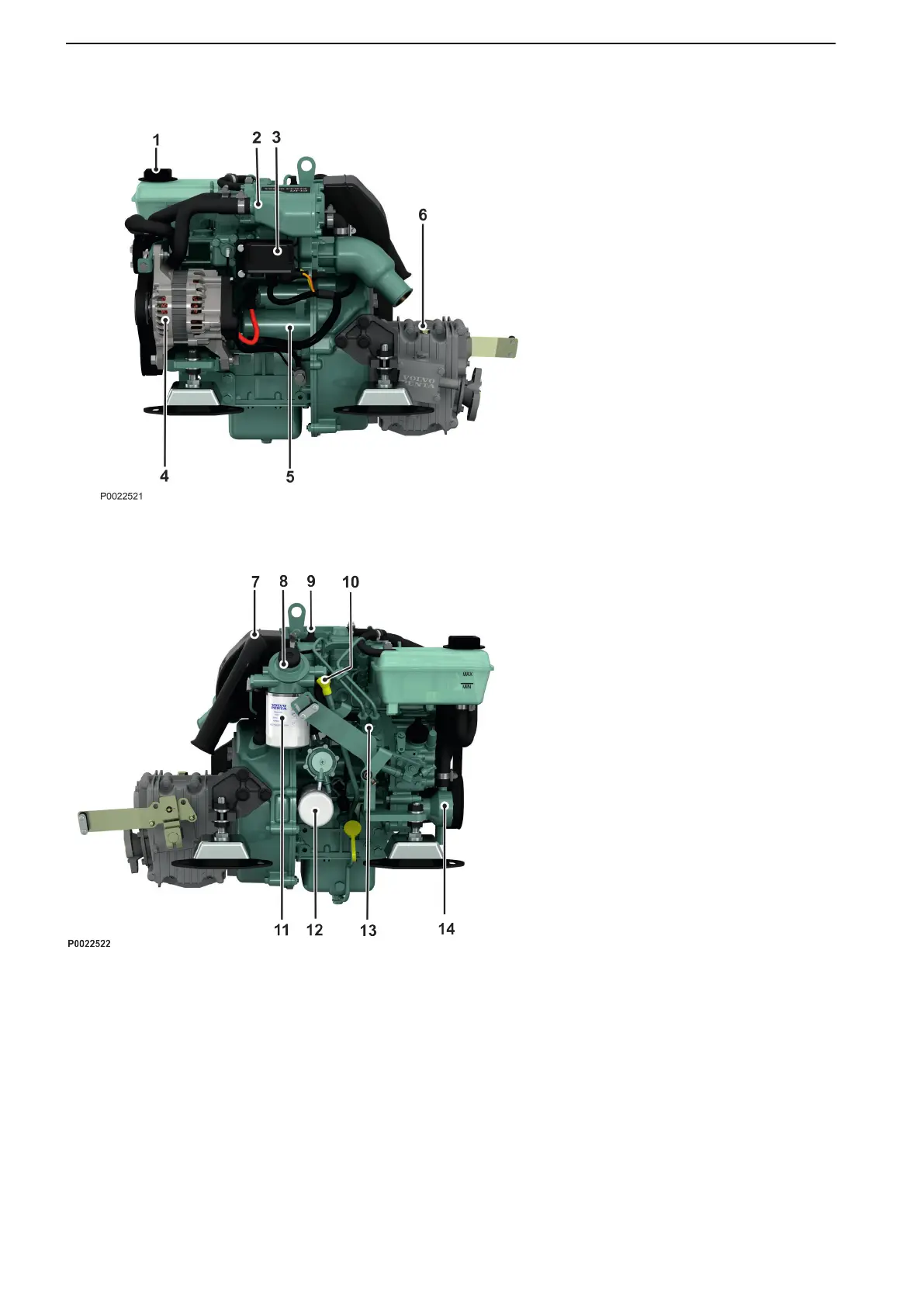

D1-13 with MS10A reverse gear 1 Coolant filling
2 Heat exchanger
3 Relay box
4 Alternator
5 Starter motor
6 Oil dipstick, reverse gear
D1-13 with MS10A reverse gear 7 Air filter/air intake
8 Fuel hand pump
9 Oil filler, engine
10 Oil dipstick, engine
11 Fuel filter
12 Oil filter
13 Injection pump
14 Raw water pump
Maintenance
48 47711262 01-2019 © AB VOLVO PENTA
