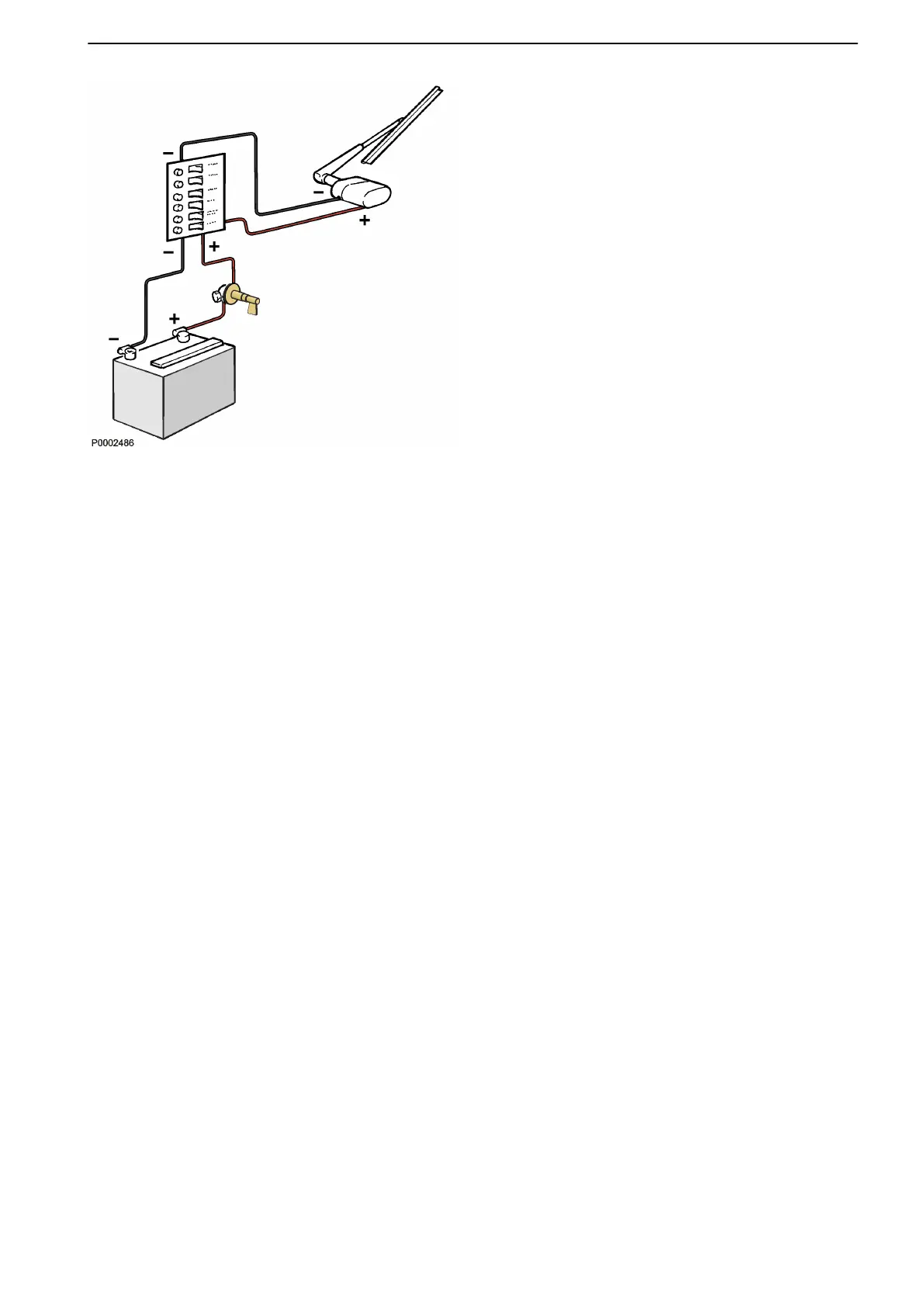

4 The start battery must have a main switch (C)
connected to the battery's plus (+) side. The main
switch must break the circuit to all equipment and
be switched off when the boat is not in use.
5 If an auxiliary battery is used, a main switch (1) must
be placed between the auxiliary battery's plus (+)
terminal and the circuit breaker panel for the boat's
electrical equipment. The main switch must break
the circuit to all equipment connected to the
auxiliary battery and must be switched off when
power is no longer required. All equipment
connected to the auxiliary battery must have
separate main switches.
For simultaneous charging of two independent battery
circuits a separate charging distributor (accessory)
should be installed on the standard alternator.
Maintenance
47711262 01-2019 © AB VOLVO PENTA 69
