1. Coolant filler cap
2. Heat exchanger
3. Relay box with fuses
4. Generator
5. Starter motor
6. Oil cooler, reverse gear
7. Dipstick, reverse gear/S-drive
8. Air cleaner (ACL)/Air intake
9. Dipstick, engine
10. Oil filler cap, engine
11. Fuel pump
12. Oil filter
13. Fuel filter
14. Injection pump
15. Seawater pump
16. Cooling water intake, S-drive
17. Sea cock, S-drive
18. Folding propeller
19. Sacrificial anodes
20. Oil drain plug, S-drive
Presentation

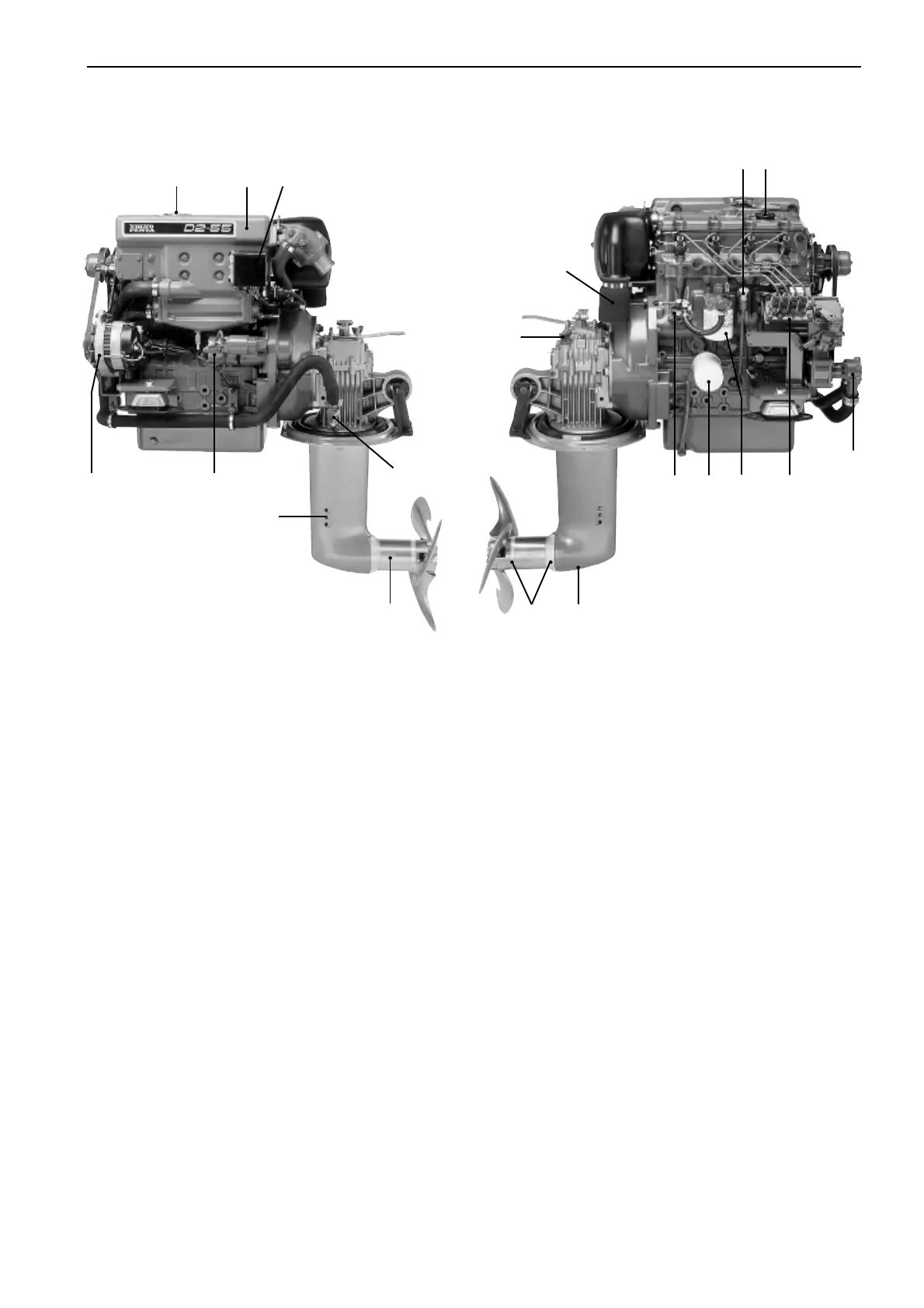

D2-55 with sailing boat drive MS25S
18
16
1 3
5
17
2
4
D2-55 with sailing boat drive MS25S
12
8
10
7
19 20
9
13 14
15
11
