Volvo Penta D2-55 User Manual

13
1. Coolant filler cap
2. Relay box with fuses
3. Heat exchanger
4. Charge air cooler
5. Turbo
6. Oil cooler, reverse gear
7. Starter motor
8. Generator
9. Dipstick, reverse gear/S-drive
10. Air cleaner (ACL)/Air intake
11. Dipstick, engine
12. Oil filler cap, engine
13. Fuel pump
14. Oil filter
15. Fuel filter
16. Injection pump
17. Seawater pump
18. Cooling water intake, S-drive
19. Sea cock, S-drive
20. Folding propeller
21. Sacrificial anodes
22. Oil drain plug, S-drive

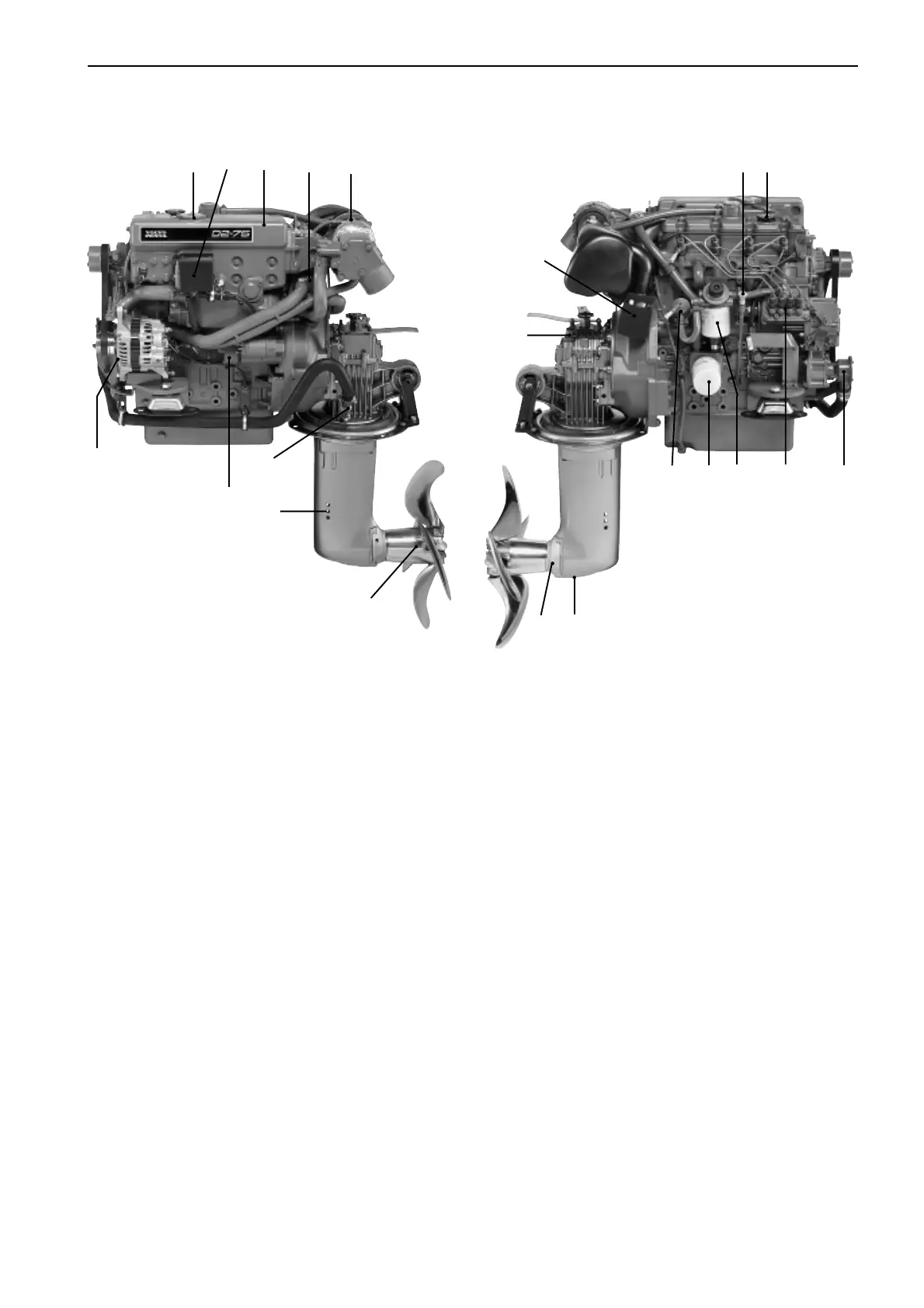

D2-75 with sailing boat drive 150S
20
18
19
14
10
12
9
21 22
11
15
16
17
13
D2-75 with sailing boat drive 150S
7
23
1
8
5
4
Presentation
7742957 - Downloaded from www.volvopenta.com 22/09/2008 11:33:23

Volvo Penta D2-55 Specifications

General

Engine Type	Diesel
Number of Cylinders	4
Power Output	55 hp
Aspiration	Naturally aspirated
Alternator	115 A
Fuel System	Direct injection
Bore x Stroke	84 mm x 100 mm
Cooling System	Freshwater cooling with heat exchanger
Width	523 mm
Displacement	2.2 l (134 cu in)
