62
Maintenance: Cooling system, general
Cooling system D34A MS KC

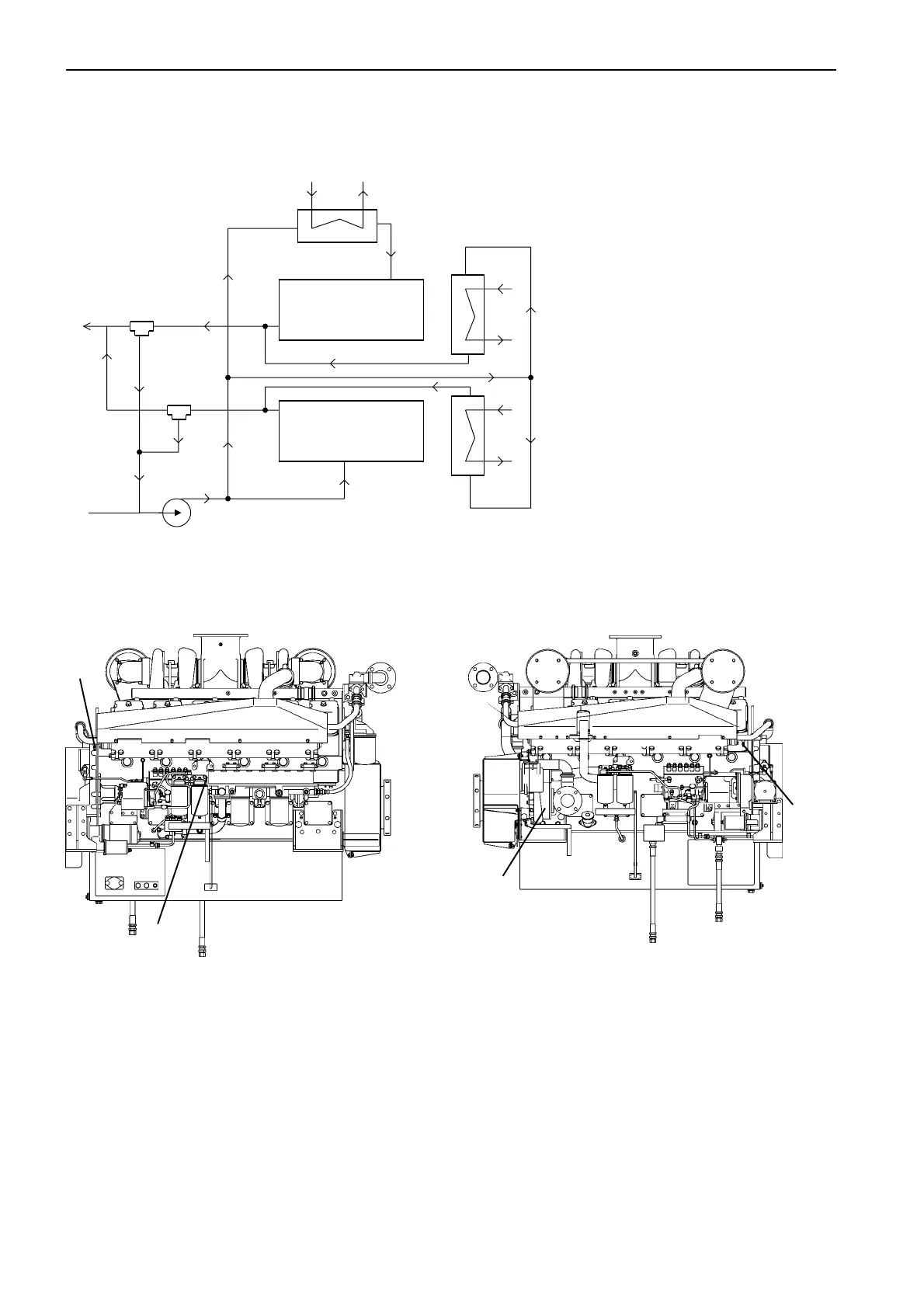

The engine cooling water is cooled by, e.g, a box cooler, a grid cooler, or any other external heat exchanger. The
same coolant (fresh water) is cooling the complete engine.
1.
Freshwater inlet
2.
Freshwater pump
3.
Engine
4.
Lubrication oil cooler
5.
Charge air cooler
6.
Thermostat valve
7.
Freshwater outlet
1.
2.
3.
3.
4.
5.
5.
6.
6.
7.
Freshwater drain points (D)
D
D
D
D
