Volvo Penta MD7A User Manual

9

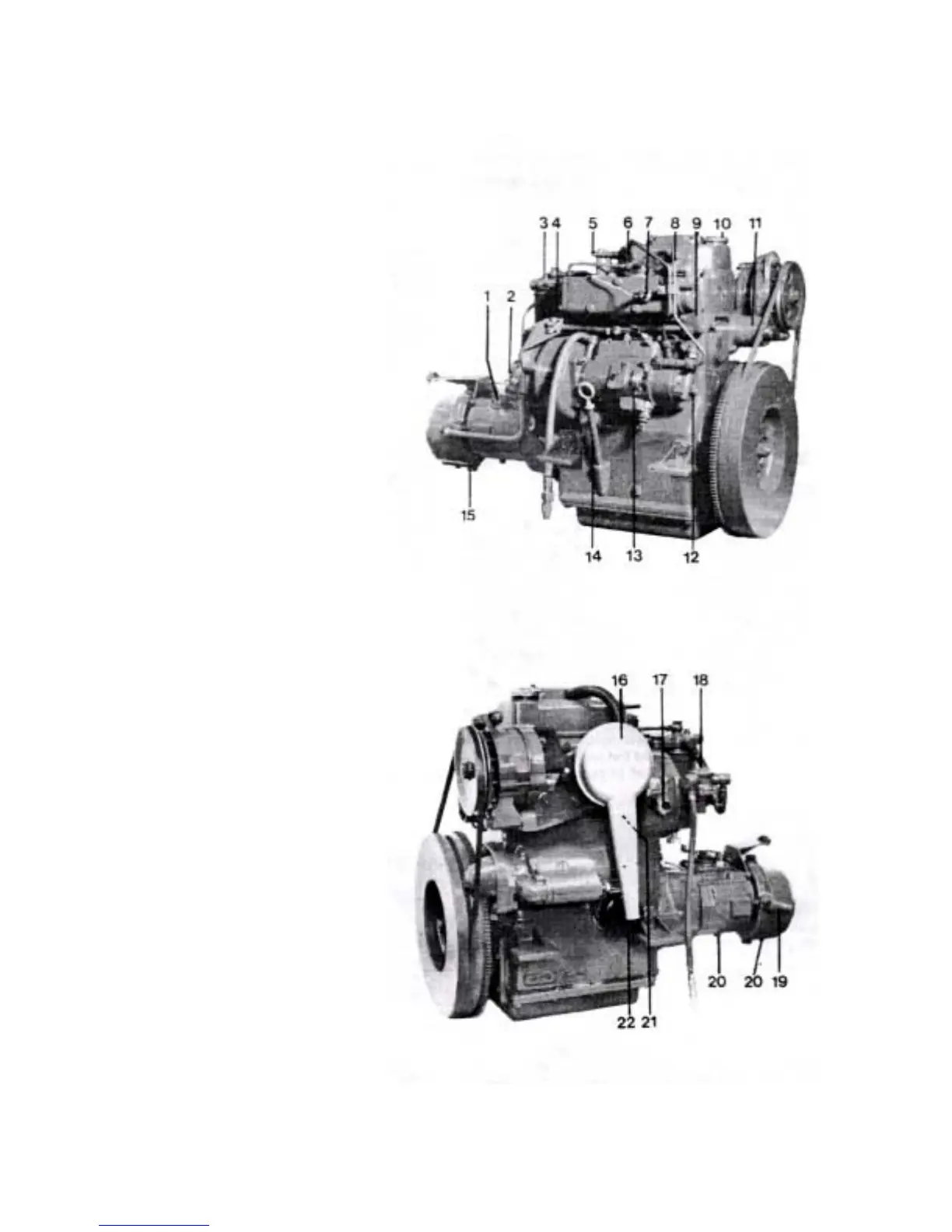

MD7A
1. Oil dip-stick and oil filling, reverse gear
2. Cover, cooling water pump
3. Bleed-screw, fine filter
4. Fine filter
5. Decompression handle
6. Pressure pipe nut
7. Temperature sender
8. Injector
9. Thermostat housing
10. Oil filling, engine
11. Hand start
12. Cooling water drain, engine
13. Fuel injection pump
14. Oil dip-stick, engine
15. Cooling water drain, reverse gear
16. Air cleaner and intake silencer
17. Sender, rev, counter
18. Fuel pump (with hand pump)
19. Cooling water inlet, reduction gear
20. Oil drain, reverse gear, reduction gear
21. Warner, low oil pressure
22. Oil filter

Volvo Penta MD7A Specifications

General

Engine Type	Diesel
Number of Cylinders	2
Cooling System	Raw water cooled
Type	Marine diesel engine
Rated RPM	3000 rpm
Compression Ratio	22:1
Fuel System	Indirect injection
Displacement	0.8 liters
Weight	150 kg
Max Power Output	13 hp
