Identification Numbers
NOTICE!

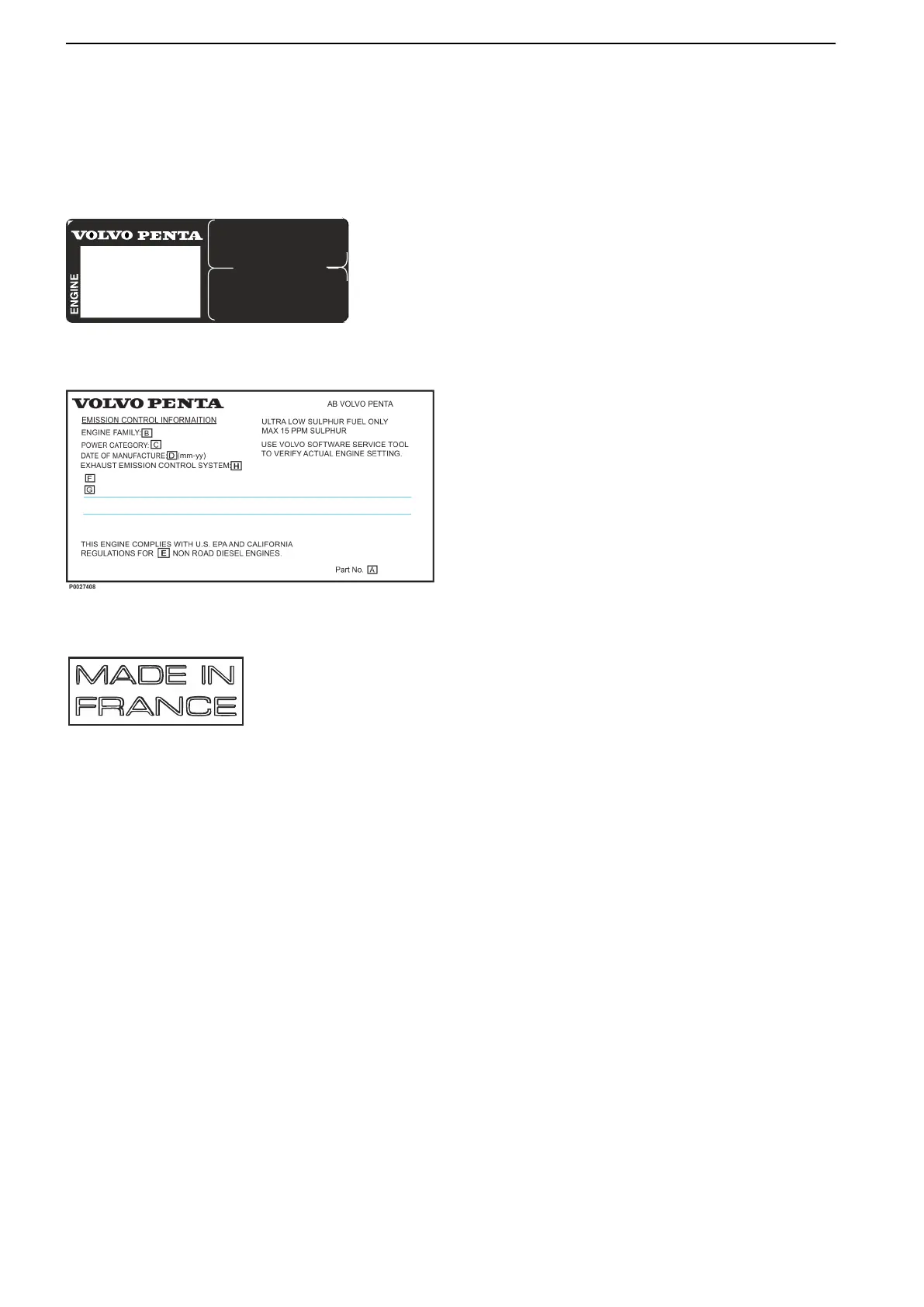

The engine labels are placed on the valve
cover.
A
Engine Designation
B
Specification number
C
Serial number (also stamped in engine block)
D
Engine power at operating speed
A.
Label part number
B.
EPA Engine family
C.
Power Category
D.
Date of manufacturing
E.
Model Year
F.
-
G.
-
H.
Exhaust Emission Control System
Country of manufacture.
xxxxx A
xxxxxxxx B
xxxxxxxxxx C
xxxxxxxxxxxx D
P
19329
00
P0020083
Technical Data
90
47710925 01-2019 © AB VOLVO PENTA
91
93
Table of Contents
Table of Contents
3
Foreword
5
Safety Information
6
Introduction
15
Fuel, Oils and Coolant
16
Maintenance and Replacement Parts
17
Excessive Strain on a Product and Components
17
Environmental Care
18
Emission Aftertreatment System
20
Volvo Penta Dealer Network
20
Volvo Penta Action Service
21
Presentation
22
Engines
22
EMS (Engine Management System)
23
EATS (Exhaust Aftertreatment System)
24
Overview
26
Operation
28
Instruments and Controls
31
Control Interface Module
31
Display Control Unit
35
Starting
39
Before Starting
39
Starting the Engine
40
Starting in Extreme Cold
40
Never Use Start Spray
41
Starting Using Auxiliary Batteries
41
Operation
42
Reading the Instruments
42
Alarms
42
Maneuvering
42
Operation at Low Load
42
Engine Shutdown
44
Before Engine Shutdown
44
Stop the Engine
44
Auxiliary Stop
44
After Engine Shutdown
45
Fault Handling
46
Diagnostic Function
46
CIM (Control Interface Module)
46
DCU II (Display Control Unit)
47
Erasing Fault Codes
47
Fault Tracing
48
EATS Warnings and Inducements
50
Warning Symbols
50
Quality Shortcomings and Component Defects
51
EATS Inducements
52
Fault Code Register
53
Maintenance Schedule
56
Maintenance
57
Orientation
58
Engine, General
59
Air Filter, Check and Replace
59
Charge Air Pipe, Leakage Check
60
Drive Belt and Alternator Belt, Inspection
60
Drive Belt, Change
61
Alternator Belt, Replace
62
Lubrication System
62
Oil Level, Checking and Topping up
63
Engine Oil, Change
63
Oil Filter/By-Pass Filter, Change
64
Fuel System
65
Draining Condensate, Fuel System
65
Engine Fuel Filter Replacement
66
Fuel Pre-Filter, Change
67
Fuel System, Bleeding
68
Cooling System
70
Coolant Level, Checking and Topping up
71
Coolant, Draining
72
Charge Air Cooler, External Cleaning
72
Cooling System, Cleaning
73
Inlet and Exhaust System
75
Filling Adblue®/Def
75
Adblue/Def-Pump Filter, Change
78
Electrical System
81
Main Switch
81
Electrical Connections
81
Battery
82
Storage
84
Technical Data
86
Engines
86
Lubrication System
87
Fuel System
88
Cooling System
90
Coolant, Mixing
90
Water Quality
91
Inlet and Exhaust System
91
Electrical System
91
Identification Numbers
92
Index
95
