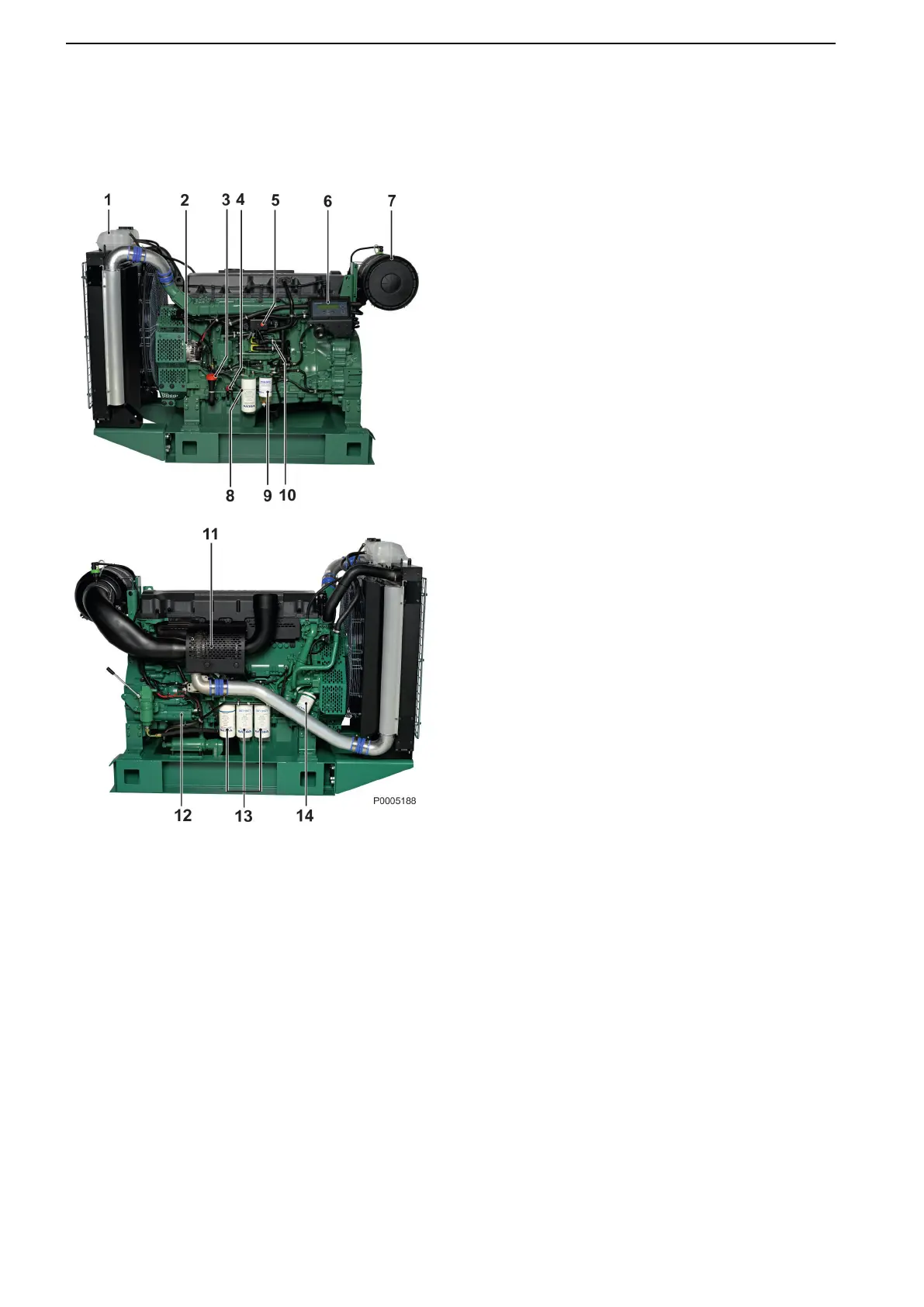

Orientation
TAD1360-65VE
1
Expansion tank
2
Alternator
3
Oil filler cap, engine
4
Oil dipstick
5
Auxiliary Stop
6
Control Panel
7
Air Filter
8
Fuel Filter
9
Fuel pre-filter with water separator
10
Control Unit, EMS
11
Turbo
12
Starter motor
13
Oil filter
14
Coolant Filter
Maintenance
76
47711089 09-2018 © AB VOLVO PENTA
77
79
Table of Contents
Default Chapter
3
Table of Contents
3
Foreword
5
Safety Information
6
Introduction
16
Fuel, Oils and Coolant
17
Maintenance and Replacement Parts
18
Excessive Strain on a Product and Components
18
Environmental Care
19
Emission Aftertreatment System
21
Volvo Penta Dealer Network
21
Volvo Penta Action Service
22
Presentation
23
Engines
23
EMS (Engine Management System)
24
EATS (Exhaust Aftertreatment System)
25
Overview
26
Operation
29
Instruments and Controls
31
Display Control Unit
31
DCU II (Display Control Unit)
38
DU (Display Unit)
42
CIU (Control Interface Unit)
46
Easy Link Instruments
46
Starting
47
Before Starting
47
Starting the Engine
48
DCU (Display Control Unit)
48
DCU II (Display Control Unit)
49
Starting in Extreme Cold
49
Never Use Start Spray
50
Starting Using Auxiliary Batteries
50
Operation
51
Reading the Instruments
51
Alarms
51
Maneuvering
52
Operation at Low Load
52
Engine Shutdown
54
Before Engine Shutdown
54
Stop the Engine
54
Auxiliary Stop
55
After Engine Shutdown
55
Fault Handling
56
Diagnostic Function
56
DCU (Display Control Unit)
57
DCU II (Display Control Unit)
57
DU (Display Unit)
58
CIU (Control Interface Unit)
59
Easy Link Instruments
60
Erasing Fault Codes
60
Fault Tracing
62
EATS Warnings and Inducements
64
Warning Symbols
64
Quality Shortcomings and Component Defects
65
EATS Inducements
66
EATS Inducements
69
Fault Code Register
70
Maintenance Schedule
75
Maintenance
77
Orientation
78
Engine, General
80
Air Filter, Check and Replace
80
Charge Air Pipe, Leakage Check
81
Drive Belt and Alternator Belt, Inspection
81
Drive Belt, Change
82
Alternator Belt, Replace
83
Lubrication System
83
Oil Level, Checking and Topping up
84
Engine Oil, Change
85
Oil Filter/By-Pass Filter, Change
86
Fuel System
87
Draining Condensate, Fuel System
87
Engine Fuel Filter Replacement
88
Fuel Pre-Filter, Change
89
Fuel System, Bleeding
90
Cooling System
91
Coolant Level, Checking and Topping up
92
Coolant, Draining
93
Charge Air Cooler, External Cleaning
93
Cooling System, Cleaning
94
Inlet and Exhaust System
96
Filling Adblue®/Def
96
Adblue/Def-Pump Filter, Change
99
Adblue/Def-Pump Filter, Change
102
Electrical System
105
Main Switch
105
Electrical Connections
105
Battery
106
Storage
108
Technical Data
110
Engines
110
Lubrication System
111
Viscosity
111
Fuel System
112
Cooling System
114
Coolant, Mixing
115
Water Quality
115
Inlet and Exhaust System
116
Electrical System
116
Identification Numbers
117
Index
119
