Group 37 Wiring diagram FM, FH, NH12 Example of wiring diagram

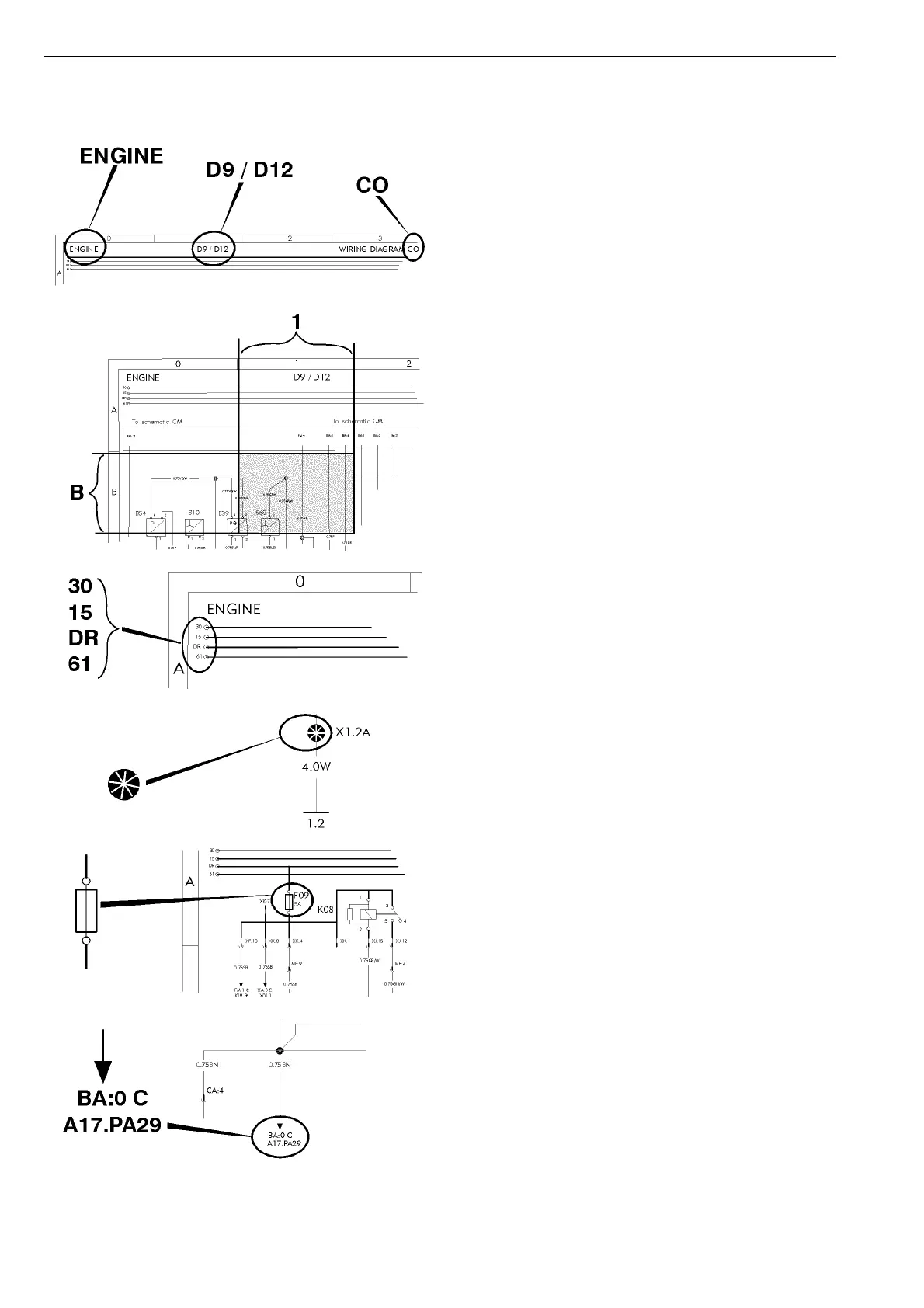

Example of wiring diagram
Component wiring diagram title, variant/subtitle and
symbol.
Coordinates (B 1).
30 Voltage battery, kl.30.
15 Voltage with starter key in drive position, kl.15.
DR Voltage with starter key in drive position, preheat
position and start position, kl.DR.
61 Voltage when alternator charges, kl.61.
Splice.
Fuse.
Reference arrow, for diagram BA, coordinates 0 C,
component A17, connector PA pin 29.
