Removing
Remove the safety grille as follows:
1. Fold the rear seat backrest forward slightly
(to relieve the load from the gas struts).
2. Remove the caps from the nuts on either
side that secure the safety grille.
3. Unscrew the nuts until the threads are flush
with the edge of the nuts.
4. Turn the grille backward in the car slightly
to release it from the trim. Do not angle the
grille too much as it can become wedged,
making it difficult to pull out.
5. Repeat for the other mounting and then
carefully lift the grille out of the car.
Attaching
To fit the safety grille:
1. Follow the instructions in the reverse order.
2. Tighten the two nuts to 24 Nm.
In the event of uncertainty about attaching or
removing the safety grille, consult a workshop
- an authorised Volvo workshop is recom-
mended.
Cargo cover*
G020766
Cargo cover.
Fitting the cargo cover.

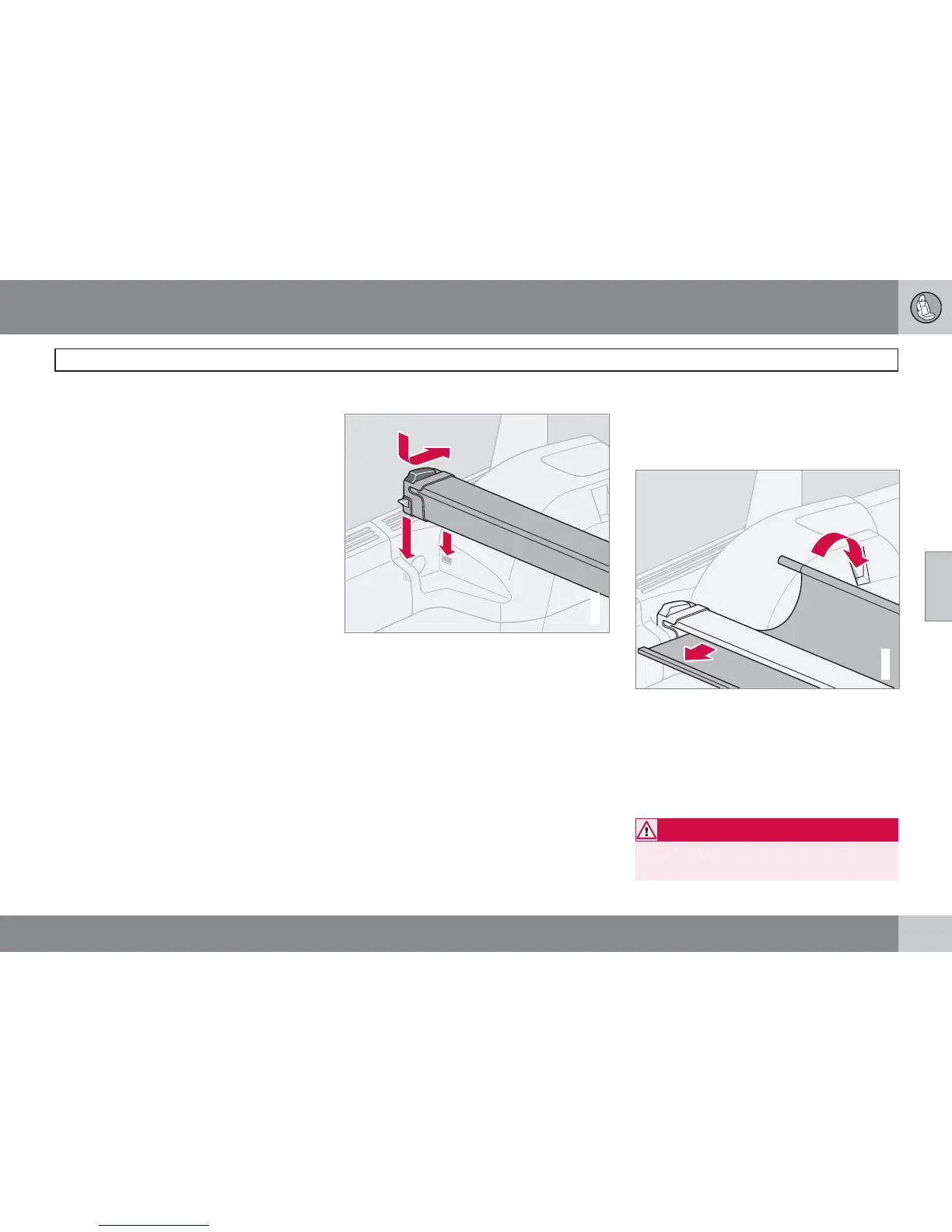

Fit the cargo cover as follows:
1. Move the front section of the cargo cover
backwards/over the cassette.
2. Following which, fit the cargo cover in its
tracks along the side panels, furthest into
the cargo area.
3. Push the button forward so that the
catches are retracted. Following which,
press the cargo cover down in the track.
4. The button springs back when the cargo
cover is correctly located.
5. Repeat the procedure on the opposite
side.
G020767
6. Check that the cargo cover is fitted firmly
in the cargo area.
7. Fit the front section of the cargo cover in
the wedge shaped tracks on the side pan-
els, against the rear seat.
8. The cargo cover is now ready for use.
WARNING
Do not place objects on the cargo cover or
on its front section.
