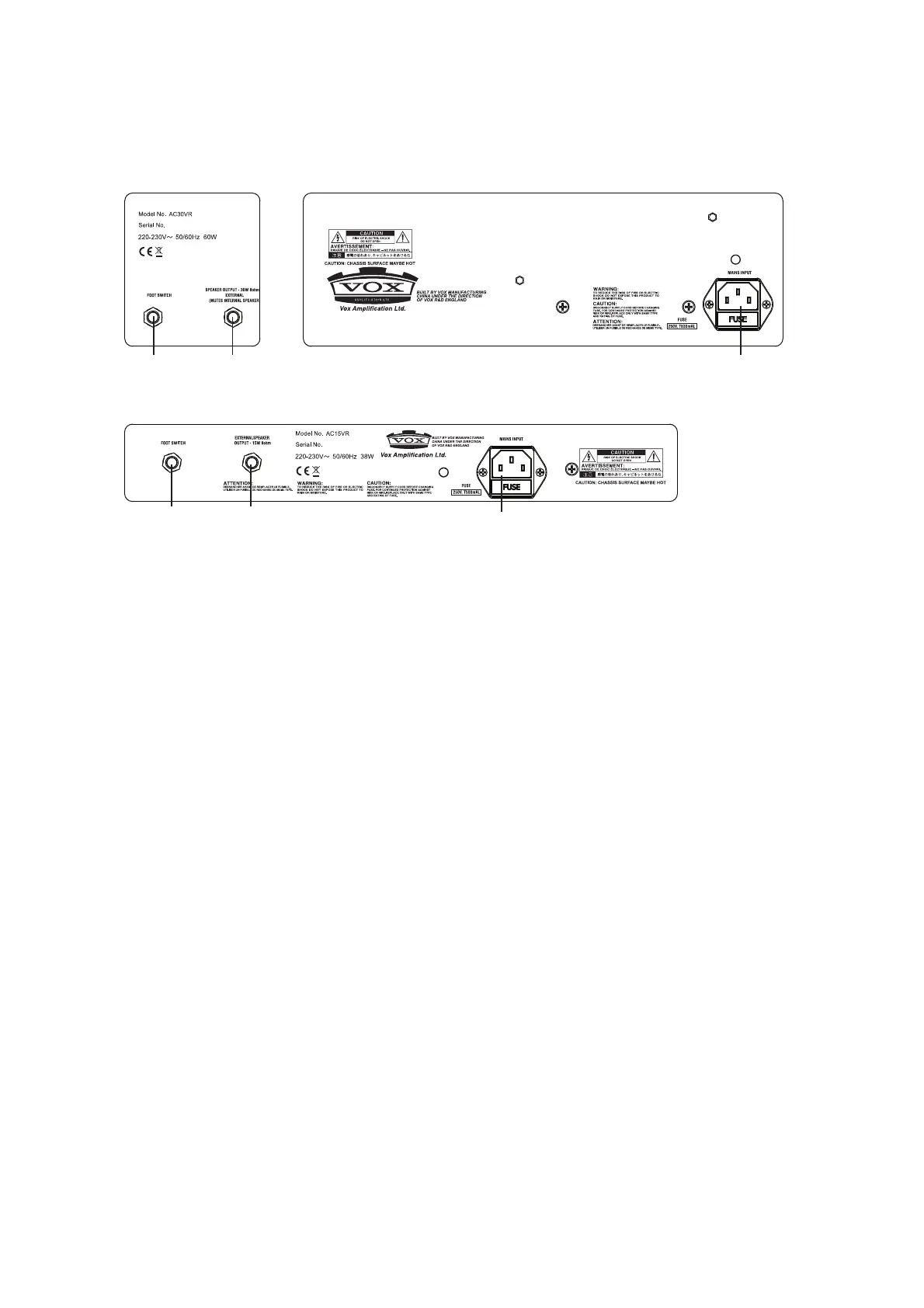

REAR PANEL FEATURES
1. FOOTSWITCH JACK
Connect the optional VFS2 Dual Footswitch to this jack.
2. EXTERNAL SPEAKER OUTPUT JACK
An external loudspeaker system can be connected to your
amplifier by using this socket. This socket disconnects the
amplifier from the internal loudspeaker.
WARNING! To ensure that your system works cor-
rectly, you must observe the following points.
a) Only use an external cabinet with a combined
impedance of 8ohms.
b) Don’t connect a speaker whose rated input capac-
ity is less than 15 watts (for AC15VR) or 30 watts (for
AC30VR). The speaker may be destroyed if you
ignore this caution—not recommended!
c) You must use a speaker cable to connect an exter-
nal speaker. Don’t use a shielded cable like the one
you use to connect a guitar to an amp.
d) You must turn off the power before connecting the
cable. Connecting the cable while the power is turned
on may damage your amp.
3. MAINS POWER CONNECTOR/FUSE
The mains power required by your amplifier is connected
using this device.
WARNING! Use only the power cord supplied with
your amplifier, or a replacement of the exact same
specification.
WARNING! Only connect this amplifier to a suitable
mains power supply that matches the rating indicated
on the back panel of your AC30VR/AC15VR ampli-
fier. IF IN ANY DOUBT CONTACT YOUR DEALER!
AC15VR
AC30VR
3
21
231
