Wacker Neuson 8003 2 User Manual

OM 75Z3/8003 US – Edition 4.0 * 7003b110.fm 1-25
Introduction
Description
The tank is hot and under pressure.
• Allow the fluids to cool down.
• Carefully and slowly open the cover only after the tank has cooled down, to release the
pressure.
• Wear suitable protective clothing and goggles to open the cover.
Location
Beside the hydraulic oil reservoir opening on the rear window.
Description
Pinch point hazard.
1 Always use the handles to open and close the front window.
2 Always lock the front window with both locks.
3 Ensure that no-one hits the window with their head as you open and close it
– see chapter 3.33 Front window (from serial no. AD06527) on page 3-54.
Location
On the front window.
Description
Crushing hazard.
• Stay clear of the machine's work range during operation.
Location
On either side of the boom.
Description
Accumulator is under high pressure. Always read the Operator's Manual before performing
maintenance or repairs.
Location
Under the seat on the partition wall.
Description
Crushing hazard.
• Stay clear of the machine's work range during operation.
Location
On the boom swivelling console on either side of the chassis.
Description
Collision hazard.
• Stay clear of the machine's slewing range during operation.
Location
On the rear window.

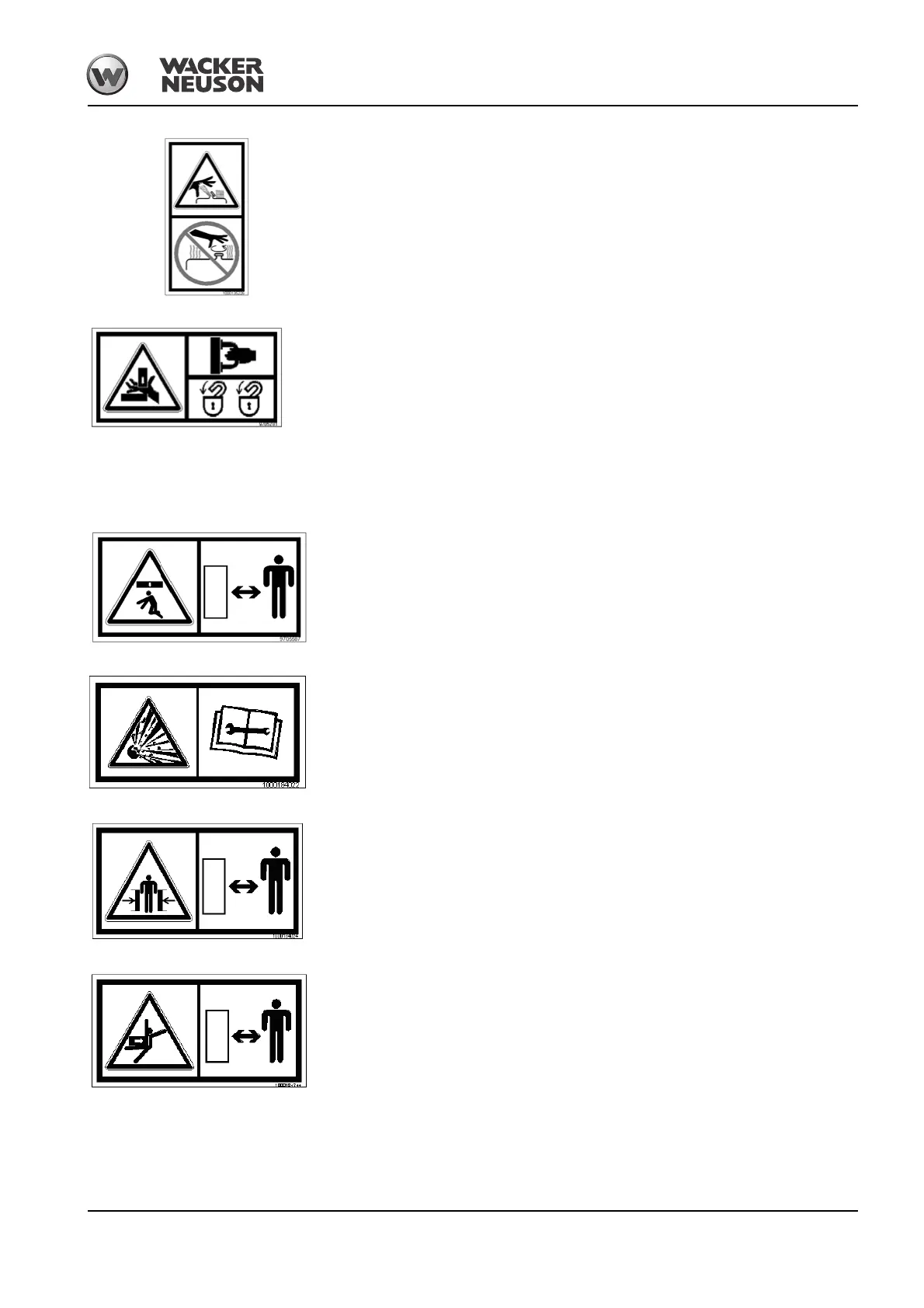

Fig. 52: Hydraulic oil tank under pressure
Fig. 53: Front window
Fig. 54: Boom operation
Fig. 55: Under pressure
Fig. 56: Slewing range
Fig. 57: Slewing range
