4
Please Do Not Return This Product To The Store. Contact your local Wayne-Dalton dealer. To find your local Wayne-Dalton dealer, refer to your
local yellow pages/business listings or go to the Find a Dealer section online at www.wayne-dalton.com

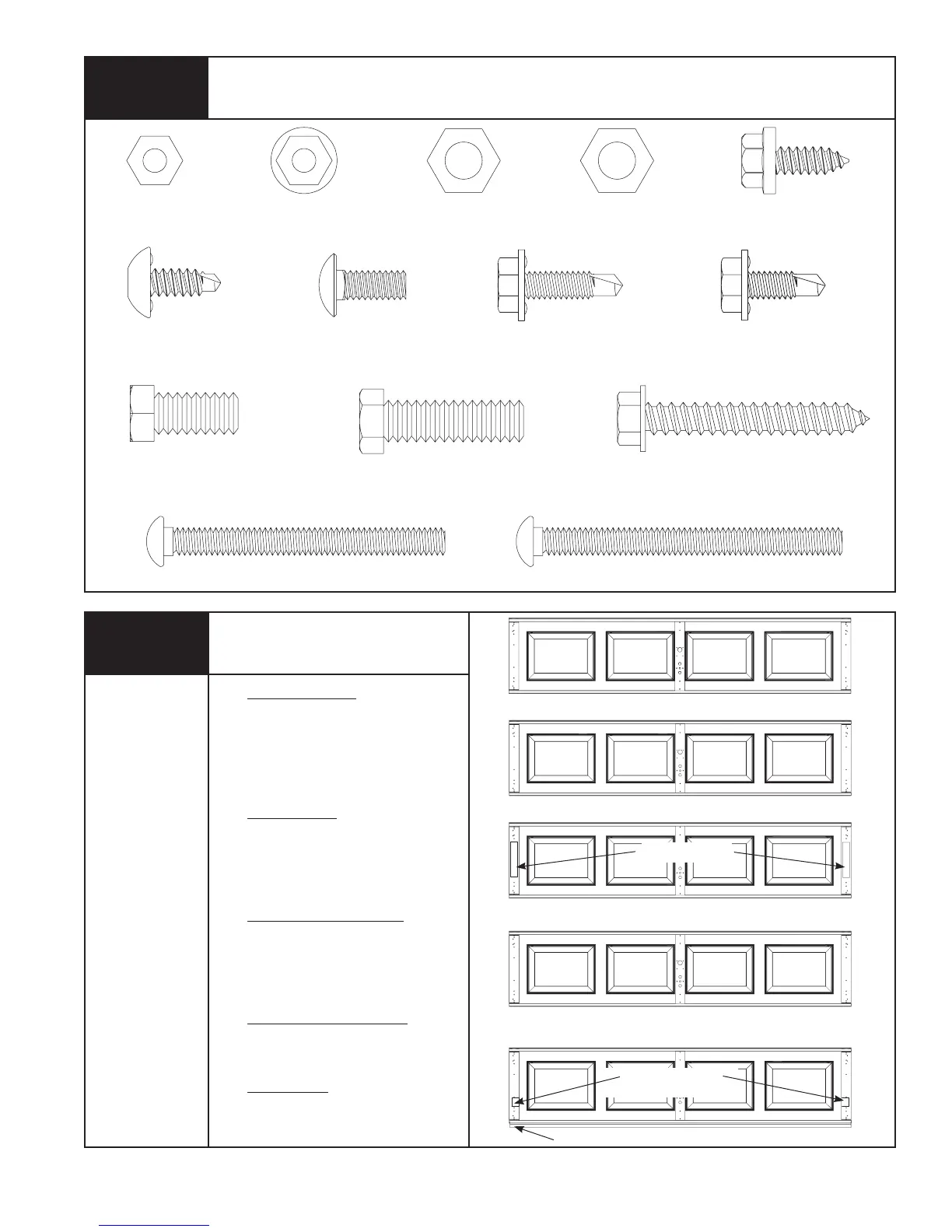

Tools Needed:
1/4”- 20 X 5/8” CARRIAGE
BOLTS (AS REQUIRED)
The BOTTOM SECTION can be
identified by the factory attached
bottom astragal, or by the bottom
bracket warning labels on each end
stile. This section is always the 1st
section on four and five section doors.
The LOCK SECTION may have a yellow
and black warning label on the right
side of the section. This section is
always the 2nd section on four and five
section doors.
The INTERMEDIATE I SECTION may
have a warning label attached to either
right or left hand endstile of the section.
This section is always the 3rd section
from the bottom of the door.
The INTERMEDIATE II SECTION is
always the 4th section on five section
door.
The TOP SECTION is always the 4th
section on four section door and the 5th
section on five section door.
Door Section Identification
5/16” X 2” HEX LAGS (AS REQUIRED)
3/8”- 16 HEX
NUTS (AS REQUIRED)
1/4”- 20 FLANGE HEX
NUTS (AS REQUIRED)
1/4”- 14 X 5/8” SELF TAPPING
SCREWS (AS REQUIRED)
(4) 1/4”- 20 HEX
NUTS
(2) 1/4”- 20 X 5/8” TAMPER
RESISTANT SCREWS
1/4”- 20 X 7/8” SELF DRILLING
SCREWS (AS REQUIRED)
1/4”- 20 X 11/16” SELF DRILLING
SCREWS (AS REQUIRED)
(2) 1/4” X 2- 1/2” CARRIAGE BOLTS
Package Contents Continued...
3/8”- 16 X 1-1/4” HEX HEAD
BOLTS (AS REQUIRED)
TOP SECTION
INTERMEDIATE II SECTION (5 SECTION DOORS ONLY)
LOCK SECTION
BOTTOM SECTION
BOTTOM BRACKET
WARNING LABELS
ASTRAGAL
WARNING LABEL
(2) 1/4” X 2-3/4” CARRIAGE BOLTS
INTERMEDIATE I SECTION
5/16”- 18 HEX NUTS
(AS REQUIRED)
3/8”- 16 X 3/4” HEX HEAD BOLTS
(AS REQUIRED)
To Next Page
