Webasto DBW 2010 Installation Manual

Installation
www.webasto.us Webasto Product N.A., Inc. www.techwebasto.com
11
Hose Connections to Chiller Unit
The DBW 2010 is intragrated into the Chiller unit water circuit via a electrically actuated 3-way valve assembly.
Components:
1. Stop valve at ship’s side inlet
2. Sea water filter
3. Webasto Blue Cool Premium Unit 110 / 220 volts
5. 3-way valve
6. Intermediate storage tank (optional)
7. Water heater – DBW 2010 126°F (52 °C)
8. Webasto BlueCool Air Handler 110 / 220 volts
10. Expansion tank
P1 Sea water pump – 110 / 220 volts
P2 Circulating pump – 110 / 220 volts

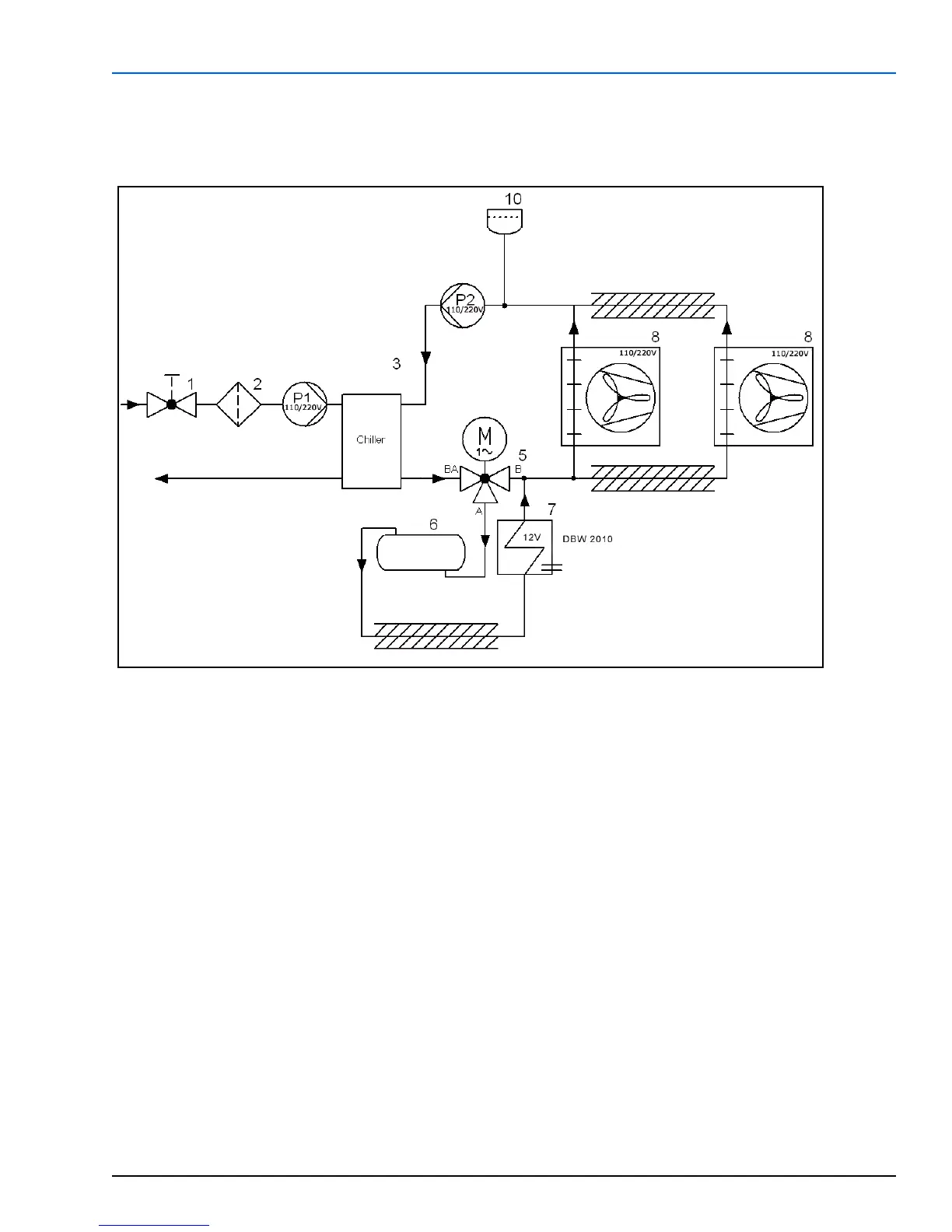

Fig. 6 BlueCool Premium System with a DBW 2010
