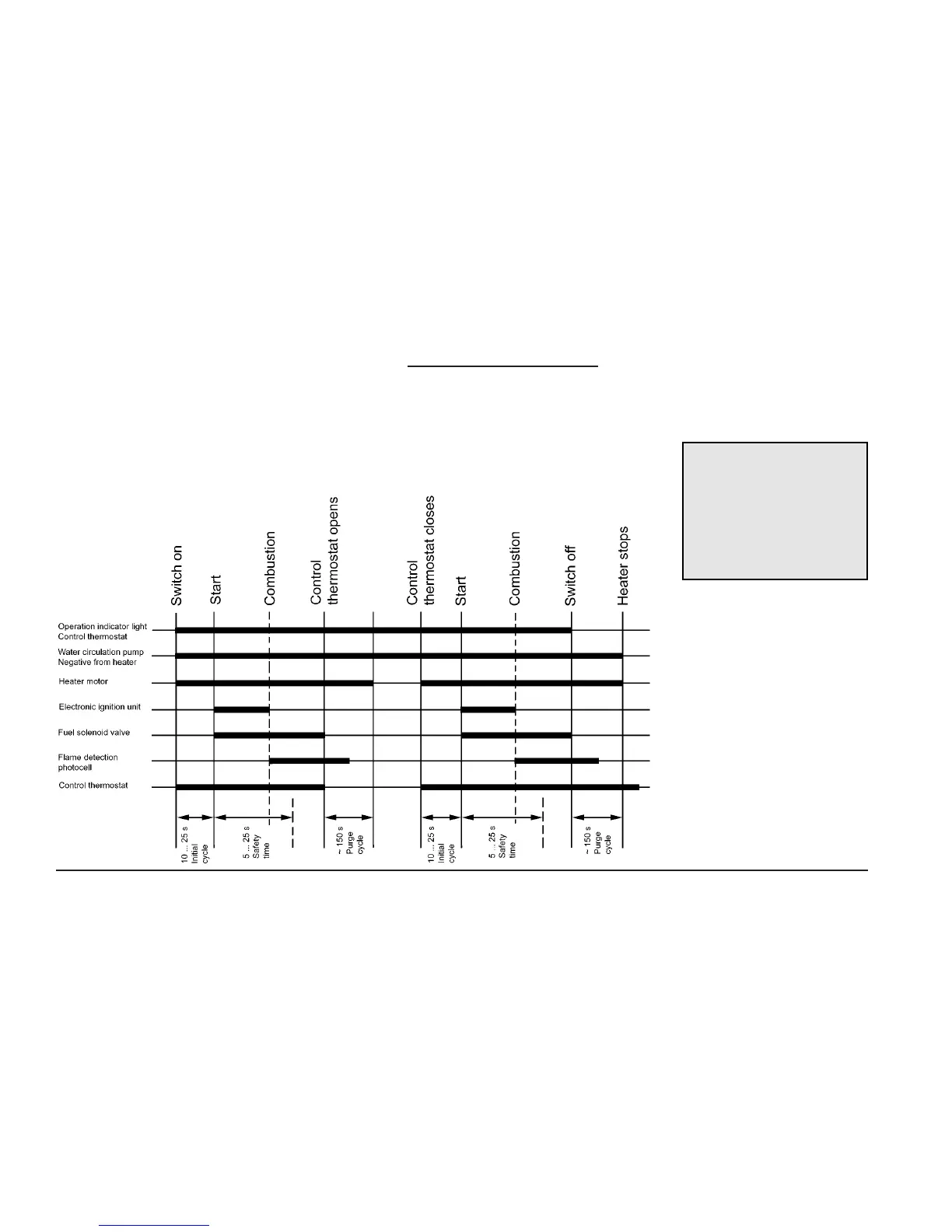

Sequence of Event
s - DBW Series Heaters
The normal sequence of events illustrated here may be used in conjunction
with the malfunction identification table to help determine heater problems.
NOTE:
After the correction of a
malfunction, a functional
test must always be
performed with the heater
installed in the vehicle in
its operational position.
T
able 3:
Sequence of Events
