9
A.2 DIRECTV
The RoadTrip™SD and™SDi
will operate with most DIRECTV receivers. The antenna will locate and con-
tinually track satellites 101° and 119°.
Winegard does not recommend using satellite receivers with hard drives not recommended by the
manufacturer for mobile applications. Winegard recommends using a standard DIRECTV receiver.
RoadTrip will not operate in all areas satellites 101° and 119° are available. Refer to Fig A.2.1 for an opera-
tional coverage map of satellite 101° and to Fig A.2.2 for an operational coverage map of 119°. Satellite
coverage maps are based on level, stationary operation. When tracking with the RoadTrip antenna, road
grades, hills, on and off ramps and other inclines may effect the operation when slope is severe, or
when approaching fringe areas of operation. Reception interruption may also occur during adverse
weather conditions.

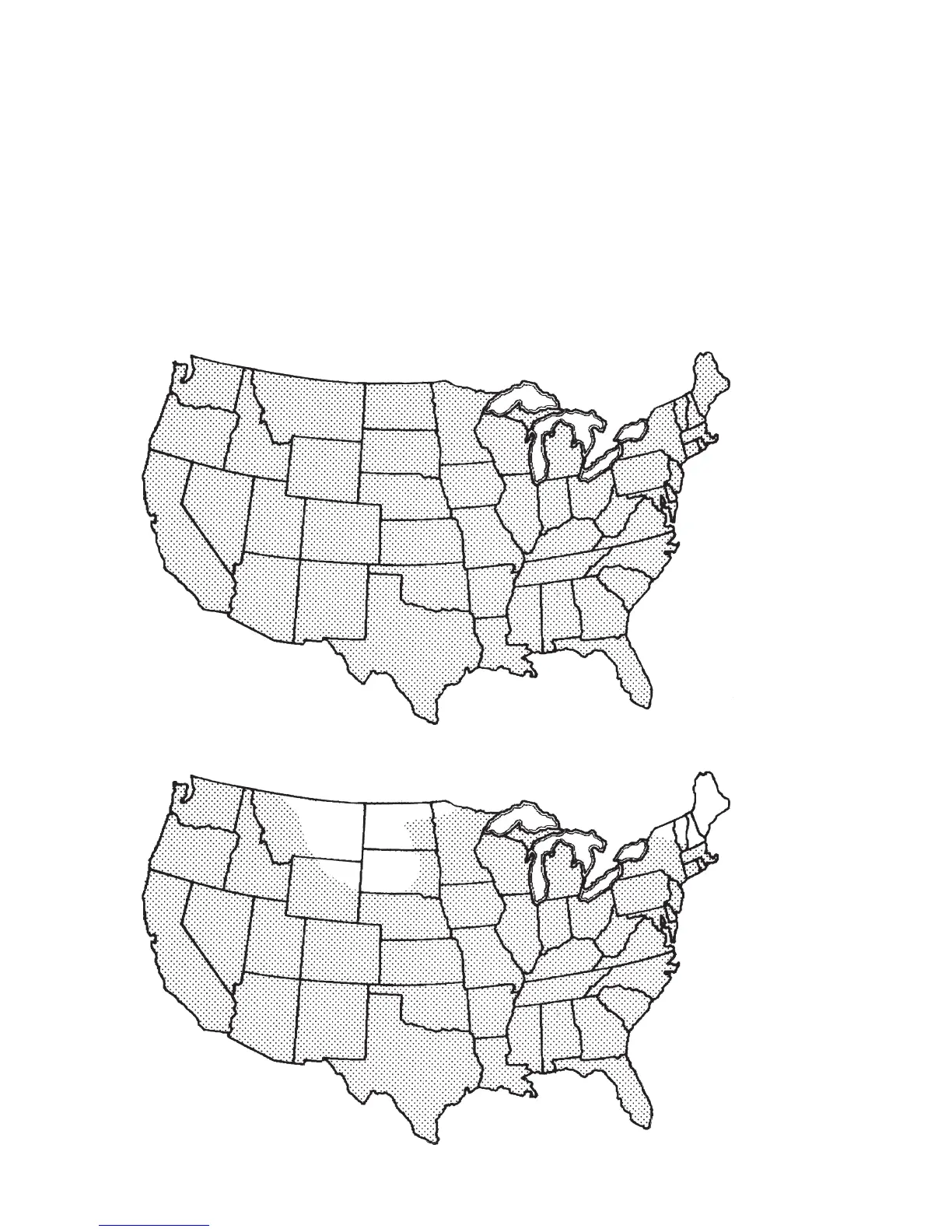

Fig A.2.2 DIRECTV satellite 119° RoadTrip coverage map (Dotted area indicates coverage).*
*Coverage maps are for reference only and do not guarantee coverage.
Fig A.2.1 DIRECTV satellite 101° RoadTrip coverage map (Dotted area indicates coverage).*
