Woods 42C-6 User Manual

24 Parts
29900 (Rev. 7/6/2007)

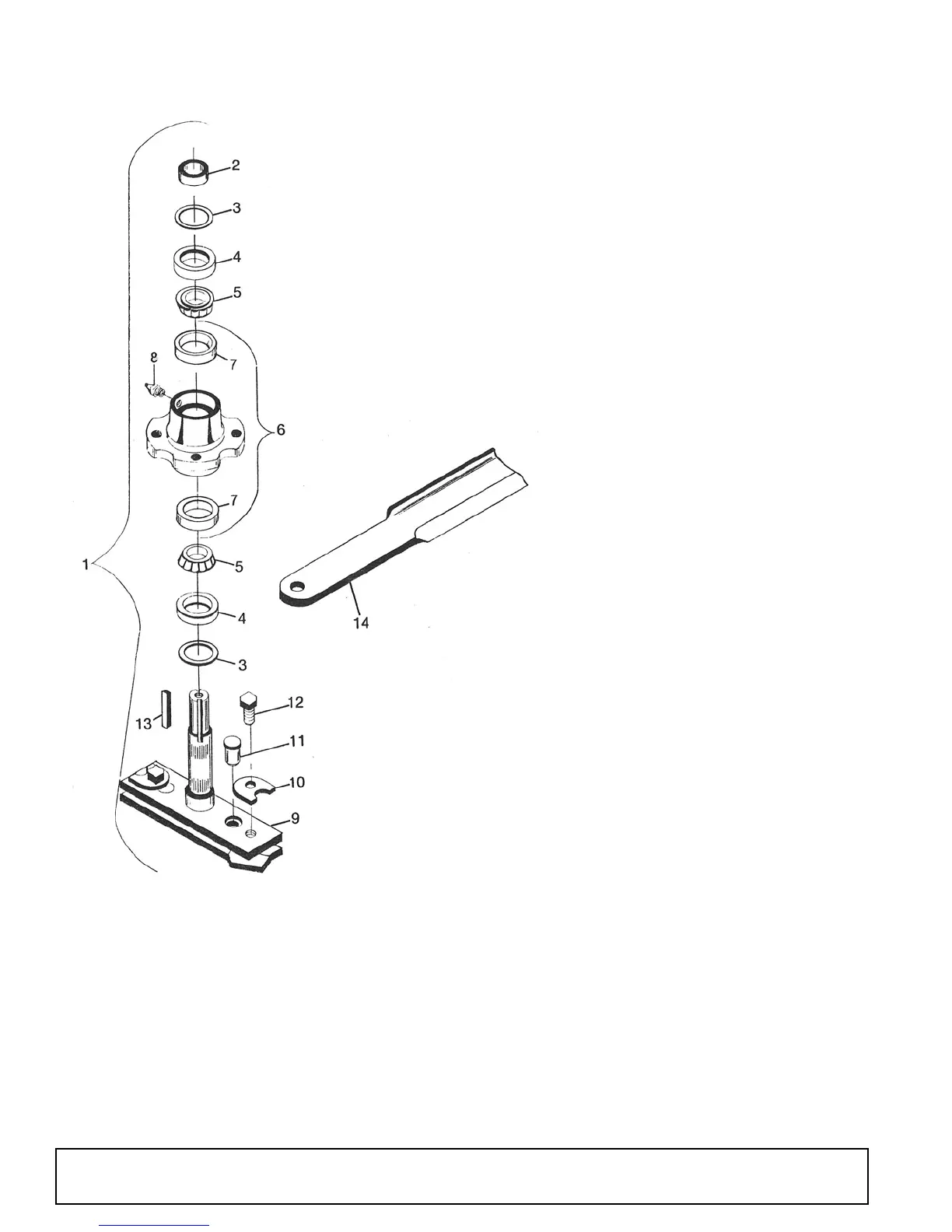

SPINDLE ASSEMBLY
REF PART QTY DESCRIPTION
1 18355 1 CW Blade spindle
2 18359 1 1-3/8 x 1-3/4 x 5/8 Sleeve
3 2718 2 1-3/4 x 2-3/8 x 13 GA Flat
washer
4 2715 2 Seal for 1-3/4 shaft
5 2717 2 Bearing cone
6 18361 1 Spindle housing with cups
7 2716 2 Bearing cup
8 195 * 1 Straight 1/8 pipe thread grease
fitting
9 18356 1 Spindle shaft and crossbar
10 25869 2 Blade pin retainer washer
11 3967 2 QD Blade pin
12 13288 2 1/2 NC x 3/4 Nylok HHCS
13 3912 2 1/4 x 3/8 x 2 Key
14 3975KT 1 Standard suction CW blade
(replace in pairs)
* Standard hardware,
obtain locally
