Xerox ColorQube 8580 Service Manual

September 2014
5-10
ColorQube 8570/8870/8580/8880 Service Manual
PL 6.1
Initial Issue - Xerox Internal Use Only
Parts Lists

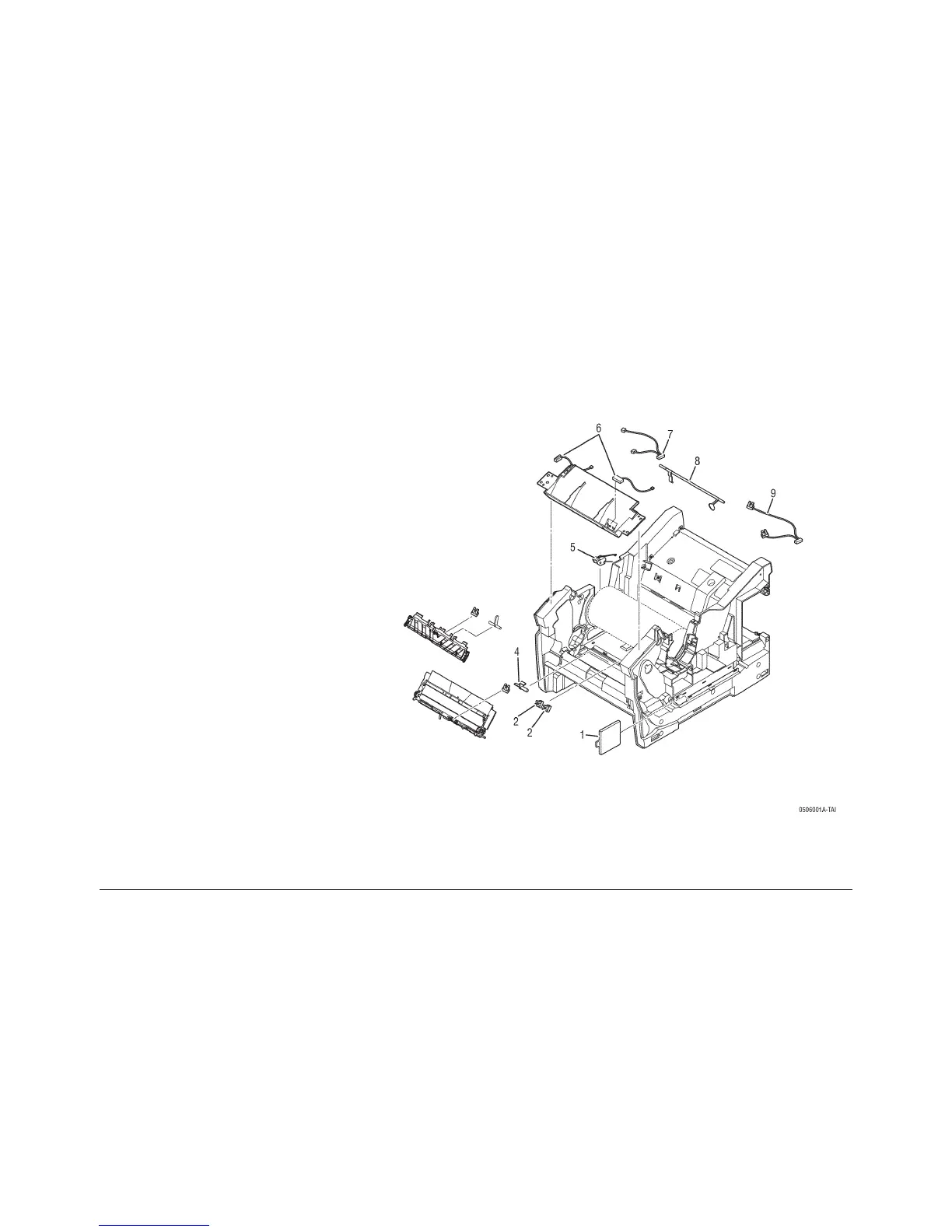

PL 6.1 Sensors and Actuators
Item Part Description
1
1
30K75230 Sensor, Paper Size Switch (Paper
Tray, Sensor Assembly)
2 – Optical Sensor Generic (Snap In)
(No Paper Sensor/ Paper Present
Sensor)
4 130E11550 Paper Present Flag
5 930K01380 Sensor, Drum Temperature
6 110E20390 (Safety) Front Door/Exit Door
Interlock Switch
7 130E12620 Sensor, Waste Tray Opto
8 – Engine Exit Flag
9 930K01500 Exit Module Sensor Assembly
