Installing the Duplex Tray 1. Setting up the DocuColor 2006
Xerox DocuColor 2006 1-29

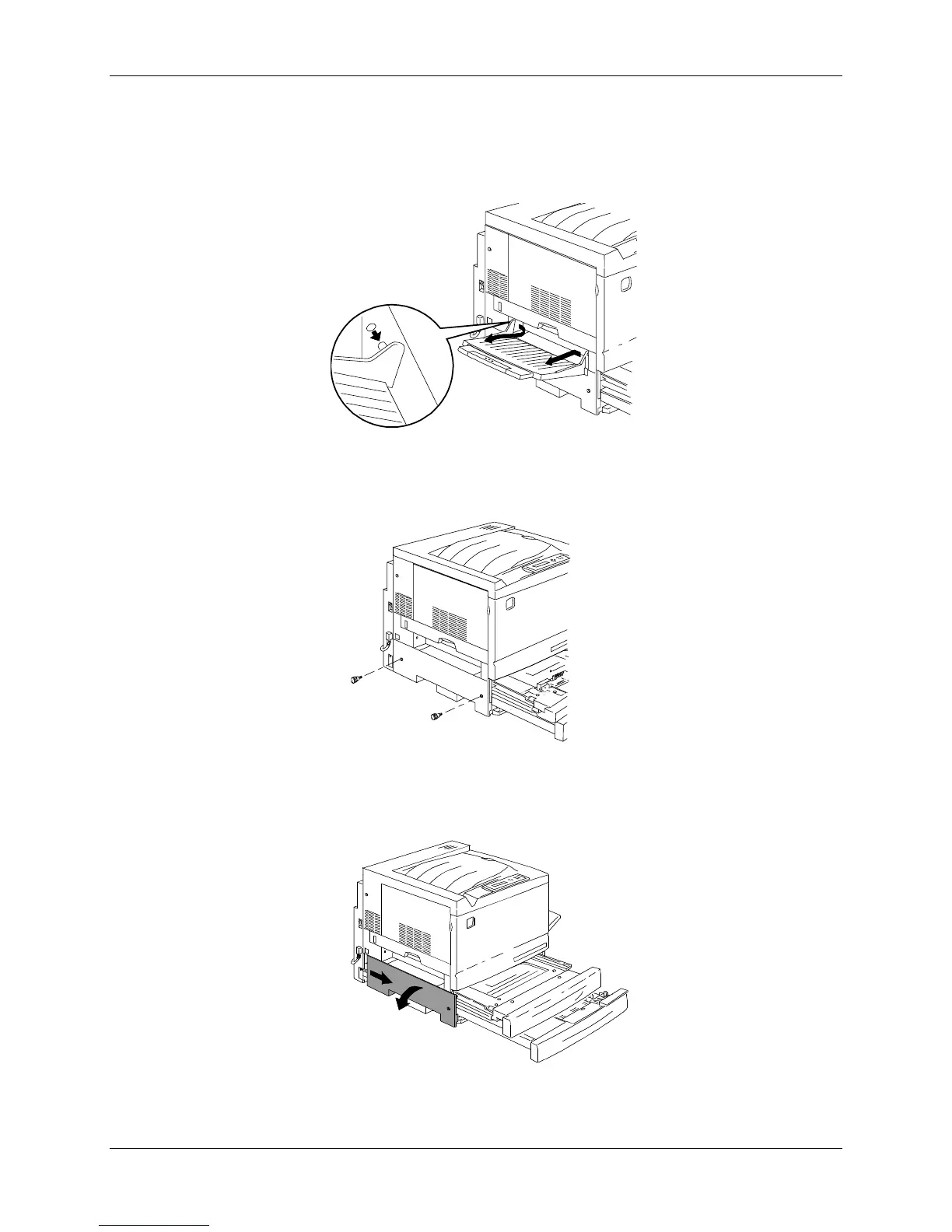

7. Install the Lower Inverter:
a. Gently squeeze the sides of the Output Tray toward each other in
order to remove the tray from the Printer.
301053B-WOL
0
301053b
c. Using a screwdriver, remove the two screws from lower left-hand
cover of the Printer as shown below.
301054B-WO
0
301054b
d. Remove the cover by shifting it to the right then pulling it away from
the Printer. Discard the cover.
301055a
To Next Page
