Xerox
®
Duplex Combo Scanner Maintenance
6-8 User Guide

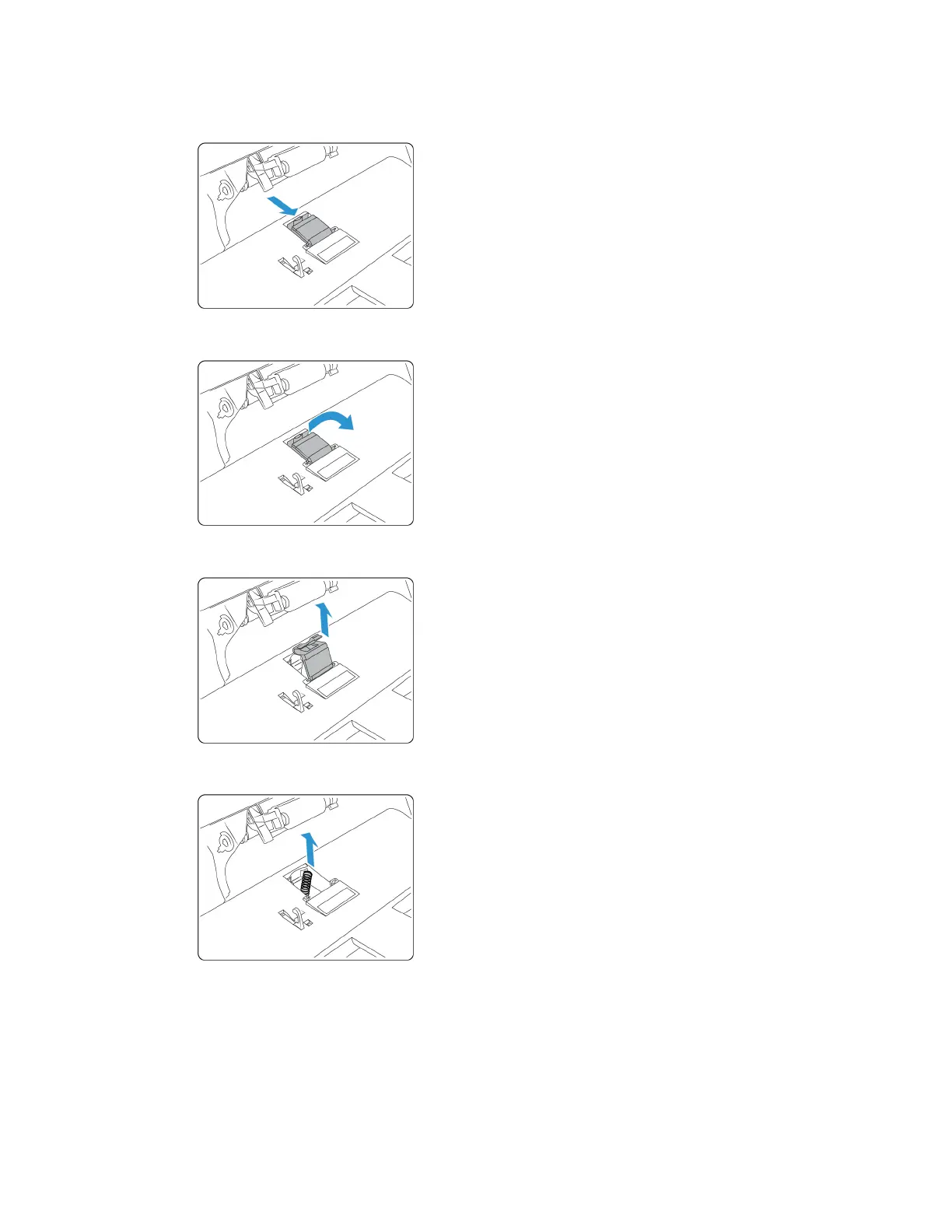

2. Squeeze the plastic clamp that holds the pad assembly in place.
3. Rotate the ADF pad until it is able to slide free.
4. Lift the pad up and out of the scanner.
5. Remove the tensions spring that is located under the ADF pad.
