Xilinx AC701 Manual

AC701 BIST
Rotary Test

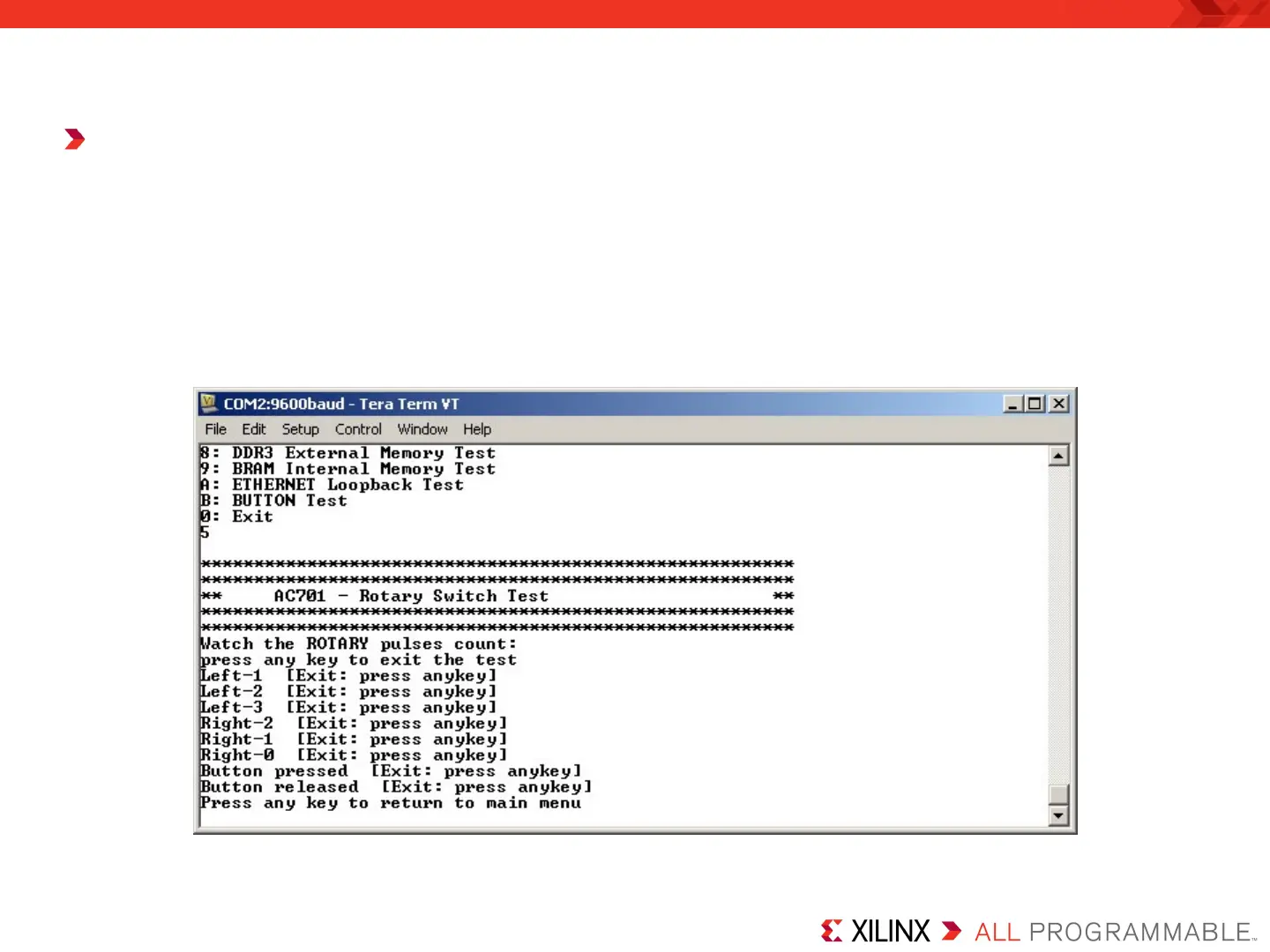

– Type 5 to begin Rotary Test
– Turn the rotary switch (under the LCD) back and forth
Note: Presentation applies to the AC701

Xilinx AC701 Specifications

General

Form Factor	ATX
FPGA Family	Artix-7
DDR3 Width	32-bit
Ethernet	10/100/1000 Mbps
USB	USB 2.0
Storage	MicroSD card slot
Configuration	JTAG, SPI
Primary Interface	PCIe x4
User I/O	LEDs
USB Ports	1
FPGA	XC7A200T
