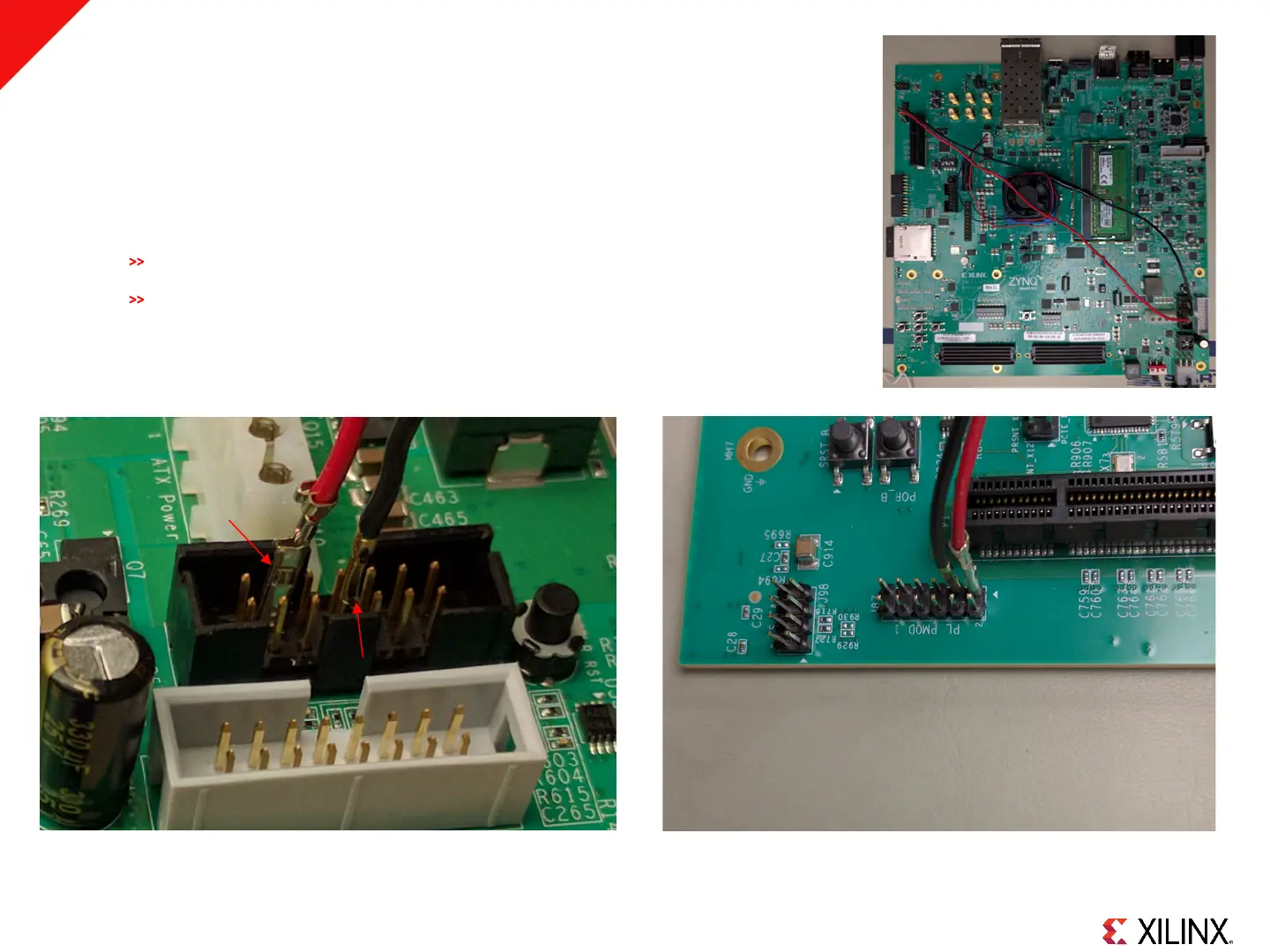

Note: S
ome old
er ZCU102 b
oards, su
ch as
Rev
D.
2, do n
ot have
J164.
For
these
boards
, connect tw
o long jumper
s:
From J87 (PMOD1), Pin 1 t
o J92, Pin 11
From J87 (PMOD1), Pin 3 t
o J92, Pin 8
J92 connections
J87 connections
J92
J87
Pin 8
P
i
n
11
Note:
Presentation applies
to the ZCU102
10
12
Table of Contents
ZCU102 System Controller – GUI Tutorial
1
Revision History
2
Overview
3
Xilinx ZCU102 Board
4
ZCU102 Software Install and Board Setup
5
ZCU102 System Controller Files
6
Updating the Firmware
7
Updating the Firmware
8
Updating the Firmware
9
Updating the Firmware
10
Updating the Firmware
11
Updating the Firmware
12
Running the System Controller GUI
13
Running the System Controller GUI
14
Clocks
15
Setting the clocks
16
Reading the clocks
17
Reading the clocks
18
Restore Default Clock settings
19
Restore Default Clock settings
20
Setting Clock Boot Frequencies
21
Setting Clock Boot Frequencies
22
Voltages
23
Reading onboard ZCU102 voltages
24
Power
25
Reading power values using default calibration
26
Reading power values using default calibration
27
Read INA226 Registers
28
Read INA226 Registers
29
Set INA226 Registers
30
Set INA226 Registers
31
Reading power values using custom calibration
32
Reading power values using custom calibration
33
FMC
34
Set VADJ
35
Set Boot-Up VADJ
36
Reading FMC EEPROM
37
Reading FMC EEPROM
38
Setting FMC HPC clocks
39
GTR MUX
40
Set GTR MUX
41
EEPROM Data
42
Reading the Board EEPROM Data
43
GPIO Commands
44
Set GPIOs
45
System Monitor
46
Reading the FPGA System Monitor Temperatures
47
Reading the FPGA System Monitor Voltages
48
About
49
Reading version information
50
File Changes
51
File changes
52
References
53
References
54
Documentation
55
Documentation
56
