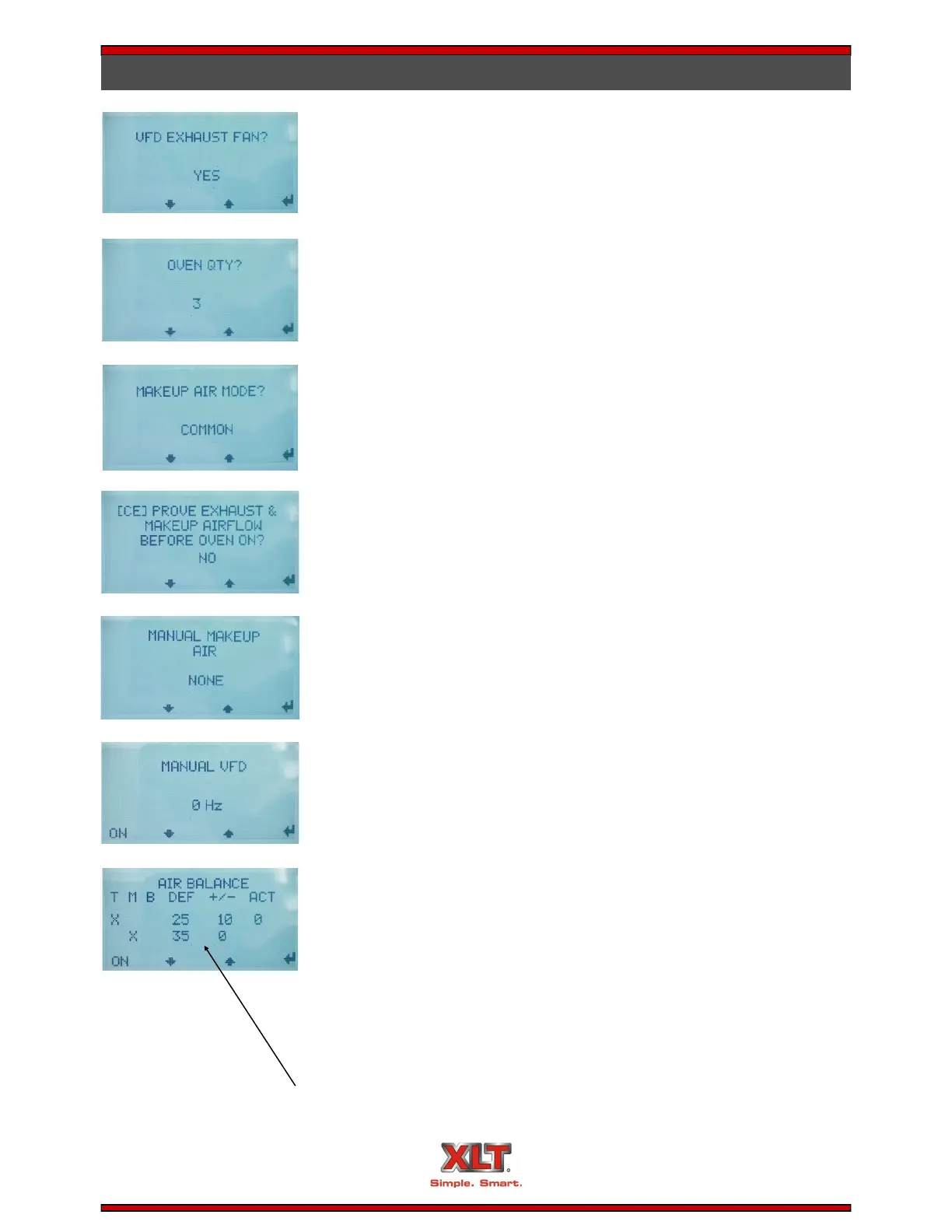

HOOD OPERATOR CONTROLS
VFD Exhaust Fan
Some hoods do not have a VFD and this will not be used. Press Down arrow to ad-
vance.
Oven Quantity
Press ENTER button to make changes and use Up/Down arrows to adjust between 1, 2,
or 3. Press ENTER to accept and advance.
Makeup Air Mode
Press ENTER button to make changes and use Up/Down arrows to adjust between
Common and Per oven. Press ENTER to accept and advance.
Common MUA is on with any oven and has one (1) speed setting. Per Oven MUA on
per oven with up to three (3) speed settings.
Prove Air Flow
Press ENTER button to make changes and use Up/Down arrows to adjust between NO
and YES. Press ENTER to accept and advance.
CE and Australia require proving before turning the oven ON.
Manual Makeup Air
Press ENTER button to make changes and use Up/Down arrows to adjust between
Common, 1, 2, or 3. Press ENTER to accept and advance.
This feature can turn all ON or run individual ovens.
Manual VFD
Press ENTER to highlight value, use Up/Down arrows to increase and decrease value.
ON to activate at selected speed. ENTER to accept and advance.
This feature can run VFD at 5Hz steps from 0-65Hz.
Air Balance
User to press ENTER to edit the -/+ value. Default of 0Hz for the +/- value. Once the -/
+ value is in Edit Mode (flashing), press and hold ENTER for three (3) seconds. This
allows user to select other lines (the entire line flashes at this point). Up/down arrows
to scroll table to get to desired line. Press ENTER again to accept that line and make
active. Press ON to turn fan on to setting (icon changes to OFF so user knows to press
again to turn it OFF). Use +/- to change Hz for that setting until desired value shown.
The Maximum ACT setting is 65Hz. Off when done with that value. Repeat with other
settings as needed. Once all done, ENTER to accept and exit.
This is only portion of the VFD table that fits in display. There are four (4) lines availa-
ble, two (2) are the titles and two (2) are table values. Scroll Up/Down to see more of
the table.
