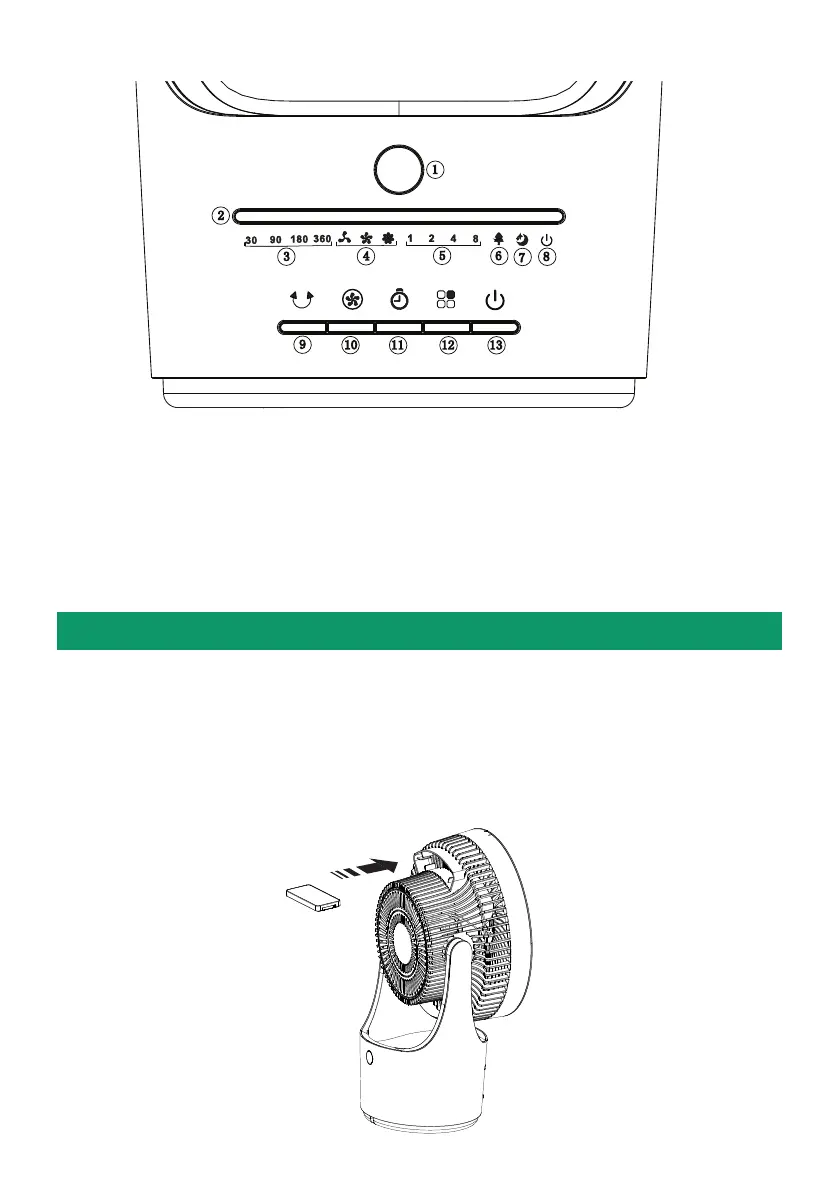

Control Panel
1. IR recieving window 6. Natural mode 11. Timer Button
2. LED light display 7. Sleep mode 12. Mode Button
3. Oscillation angles 8. Standy mode 13. Standby Button
4. Fan speeds 9. Oscillation Button
5. Runback timer
intervals
10. Fan Speed Button
Open up the carton to take out the product, instructions and the remote control, then store
or dispose of the packaging materials carefully.
This product does not need to be assembled, it is ready to operate once all packaging
materials are removed. The handle in the rear housing should be used to lift and carry the
product, it can also be used to store the remote control when not in use. (See Fig. 4)
Fig. 3
Installation Instruction
Fig. 4
