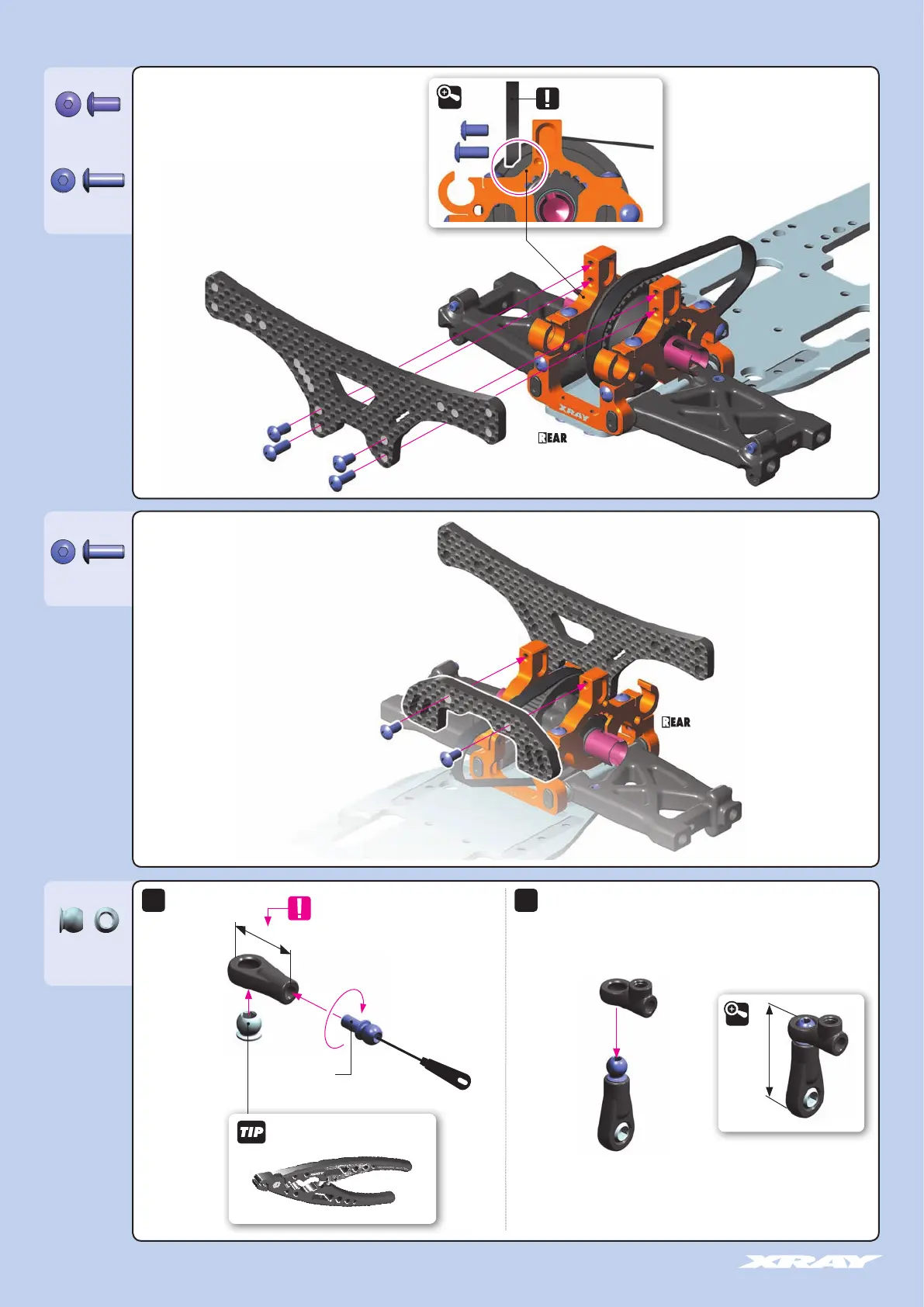

2. REAR SUSPENSION
303241
BALL 5.8
6mm THREAD
IMPORTANT
21mm
2x 2x
2.0mm
27mm
DETAIL
902308
SH M3x8
902308
SH M3x8
902306
SH M3x6
3x6mm
3x8mm
DETAIL
NOTE ORIENTATION
Install the pivot balls with Professional
Multi Tool (HUDY #183011)
