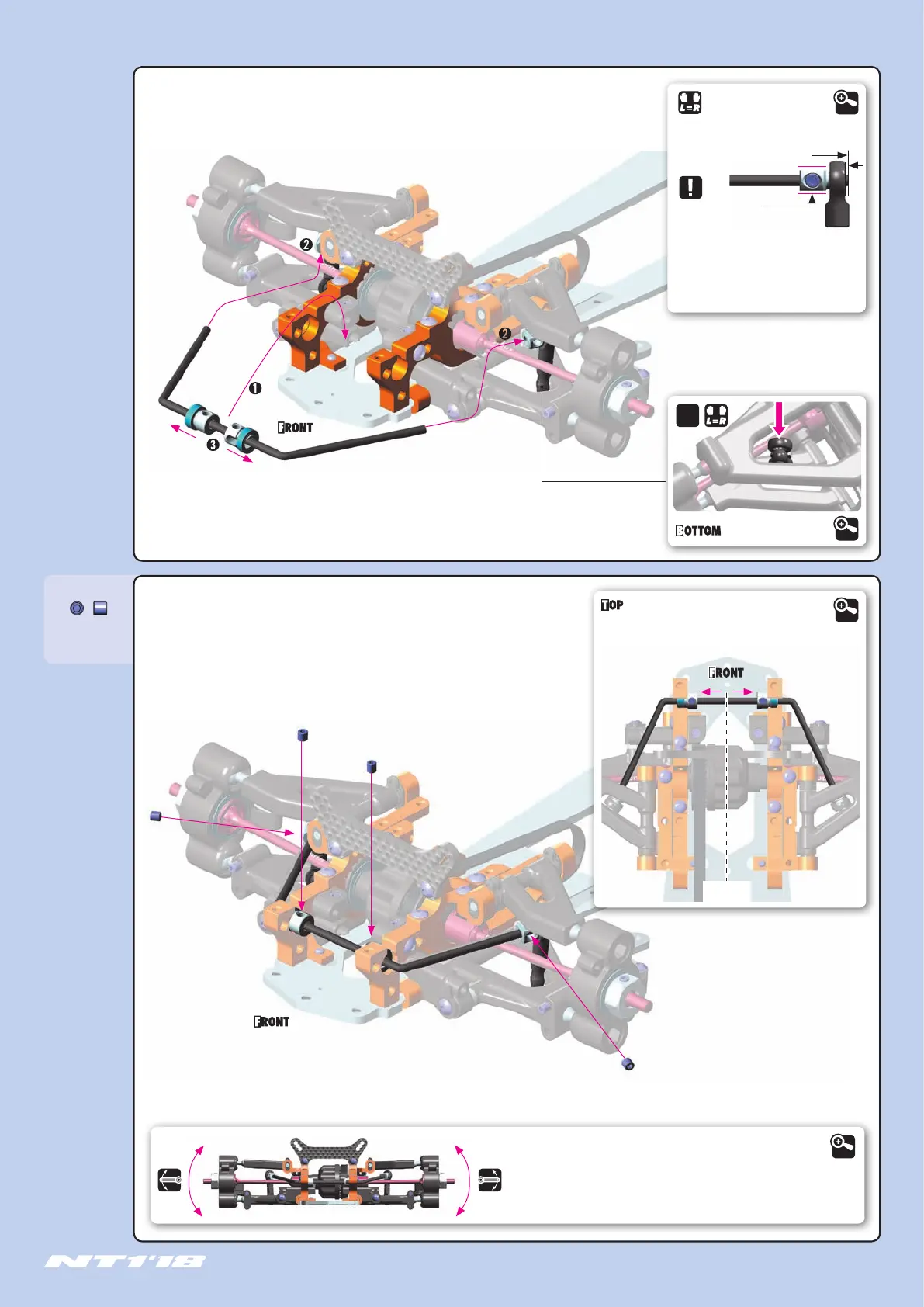

4. FRONT SUSPENSION

901303

SB M3x3

0mm

Wire should be ﬂush

with end of pivot ball.

The alu ball end must be parallel with the

upper arm in order to prevent the ball end

from touching the upper arm when the

suspension is lifted up.

NOTE ORIENTATION

Set the bar into the center, remove the play in the

bushings, and tighten the set-screws fully.

VIEW

CENTER

When the bars are set, verify that both sides move at the same time. If they do,

the bars are set up correctly. If not, make sure that both downstops are the same

and that the bar wire is ﬂat. If the sides still do not move at the same time, adjust

the length of the bar holders.

DETAIL
