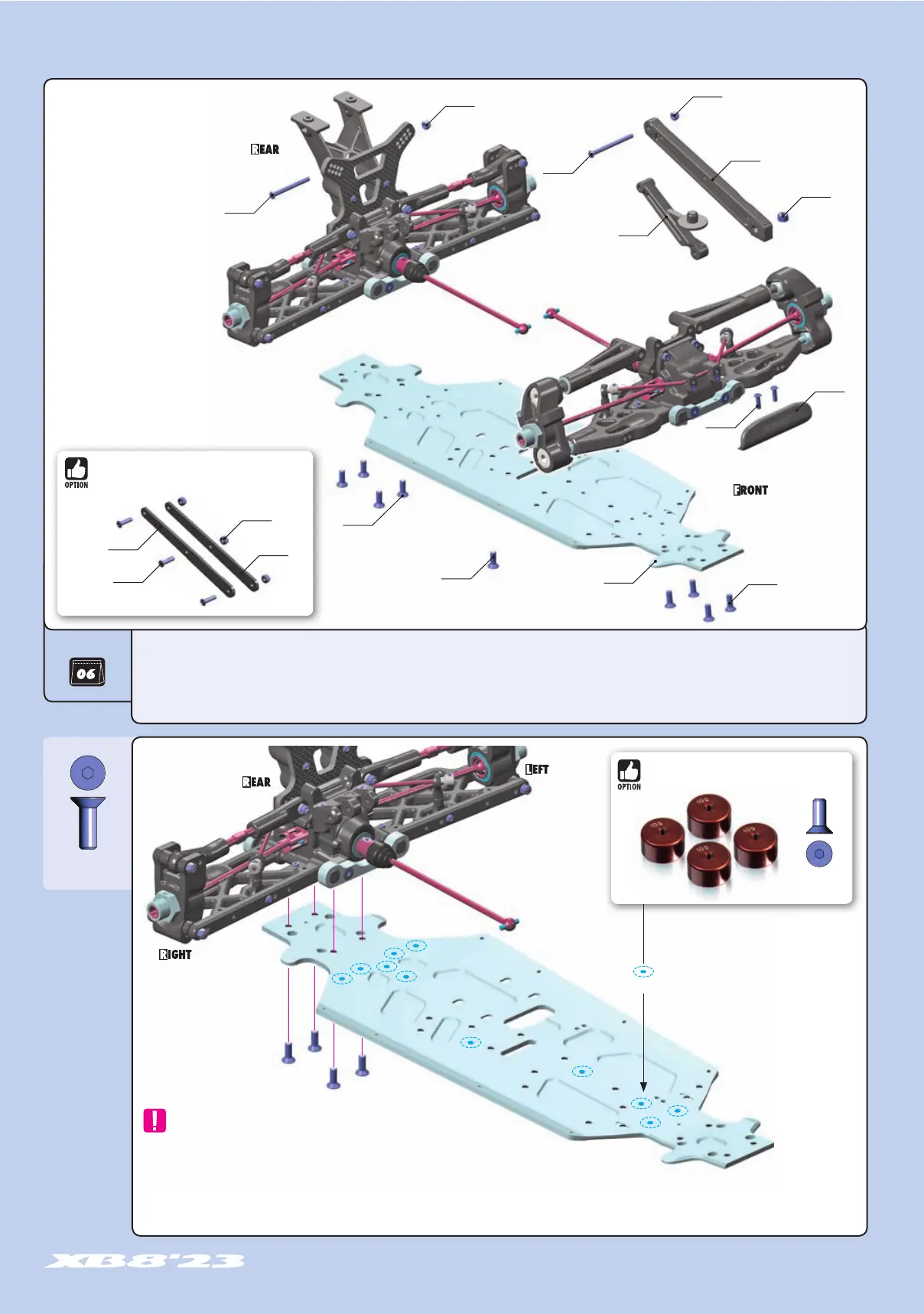

6. FRONT & REAR ASSEMBLY
351203 FRONT BUMPER
353082 COMPOSITE REAR BRACE - MEDIUM - M
353580 COMPOSITE WING HOLDER BRACE WITH REAR BODY POST
902308 HEX SCREW SH M3x8 (10)
902335 HEX SCREW SH M3x35 (10)
BAG
960040
353580
902335
960030
902340
353082
960030
903412
902308
903412
351118
903412
351203
902340 HEX SCREW SH M3x40 (10)
903412 HEX SCREW SFH M4x12 (10)
960030 NUT M3 (10)
960040 NUT M4 (10)
351118 XB8 ALU CHASSIS - SWISS 7075 T6 (3MM)
902312
#353280
GRAPHITE BRACES FOR REAR COMPOSITE BRACE - SET
960030
353280
353280
Locations for weights
During assembly, there is no need to check gear mesh or diff play. In particular,
DO NOT check gear mesh and diff play when the differential is installed only in
the gear box without the suspension holders and without being mounted to the
chassis. All parts have specifically designed play, and only when the car is fully
assembled will it have the proper amount of play where necessary. Only once you
build the entire car, then you can check for free movement of all rotational parts
and drivetrain as well a free non-binding operation of suspension parts.
903308
SFH M3x8
#293084
PRECISION BALANCING CHASSIS WEIGHTS 10G (4)
