EU150 Hybrid Elliptical Upright Bike
9
Pedal Tubes
4
Hardware Step 4
4 PVC Caps (#32)
2 Hex Head Bolts (#39)
2 Sleeves (#40)
6 Washers (#41)
6 Nylon Nuts (#42)
4 Carriage Bolts (#44)
1/1 Hinge Bolt (#45L/R)
2 Wave Washers (#46)
2 Washers (#47)
1/1 Lock Nut (#48L/R)

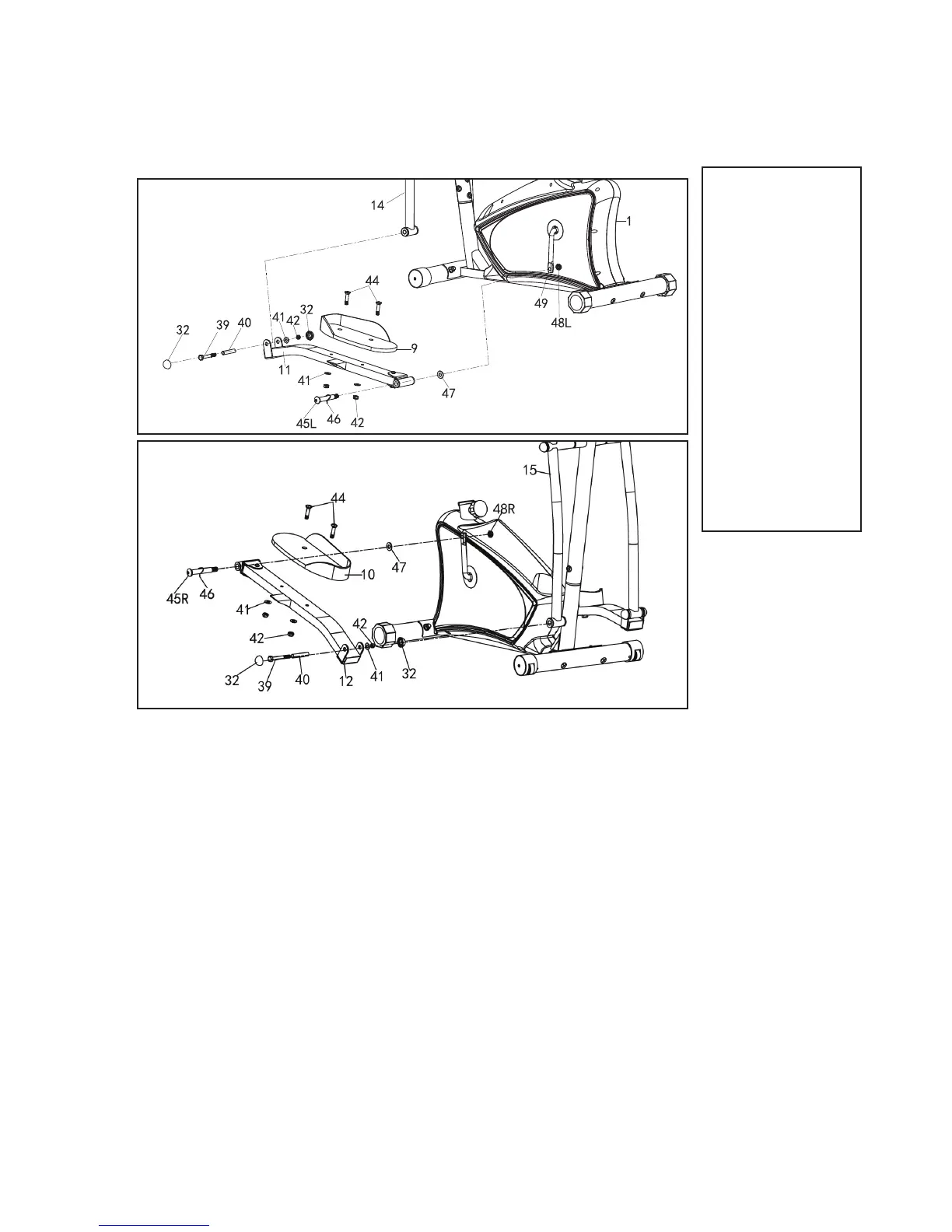

1. Attach the Left Pedal Tube (11) to the Left Side of Crank (49). Secure using one Left
Lock Nut (48L), one Washer (47), one Wave Washer (46) and one Left Hinge Bolt
(45L).
2. Attach the Left Pedal Tube (11) to the Left Bottom Handlebar (14). Line up the holes
and insert the Sleeve (40) then secure using one Nylon Nut (42), one Washer (41)
and one Hex Head Bolt (39). Attach the PVC Cap (32) onto the both side of Pedal
Tube (11).
3. Attach the Left Pedal (9) onto the Left Pedal Tube (11), secure using two Carriage
Bolts (44),two Washers (41) and two Nylon Nuts (42).
4. Repeat the procedure for the Right Pedal Tube (12) & Right Pedal (10).
To Next Page
