turning on the main switch to make sure all
segments come on.
NOTE:
The speedometer displays km/h, mph, or
knots, according to operator preference. Se-
lect the desired unit of measurement by set-
ting the selector switch on the back of the
gauge. See the illustration for settings.
EMU26610
Trim meter
This gauge shows the trim angle of your out-
board motor.
NOTE:
Memorize the trim angles that work best for
your boat under different conditions. Adjust
the trim angle to the desired setting with the
power trim and tilt switch.
EMU26620
Trim meter (digital type)
This meter shows the trim angle of your out-
board motor.
NOTE:
●
Memorize the trim angles that work best
for your boat under different conditions.
Adjust the trim angle to the desired using
the power trim and tilt switch.
●
If the trim angle of your motor exceeds the
trim operating range, the top segment on
the trim meter display will blink.
EMU26650
Hour meter (digital type)
This meter shows the number of hours the
engine has been run. It can be set to show
the total number of hours or the number of
hours for the current trip. The display can
also be turned on and off.

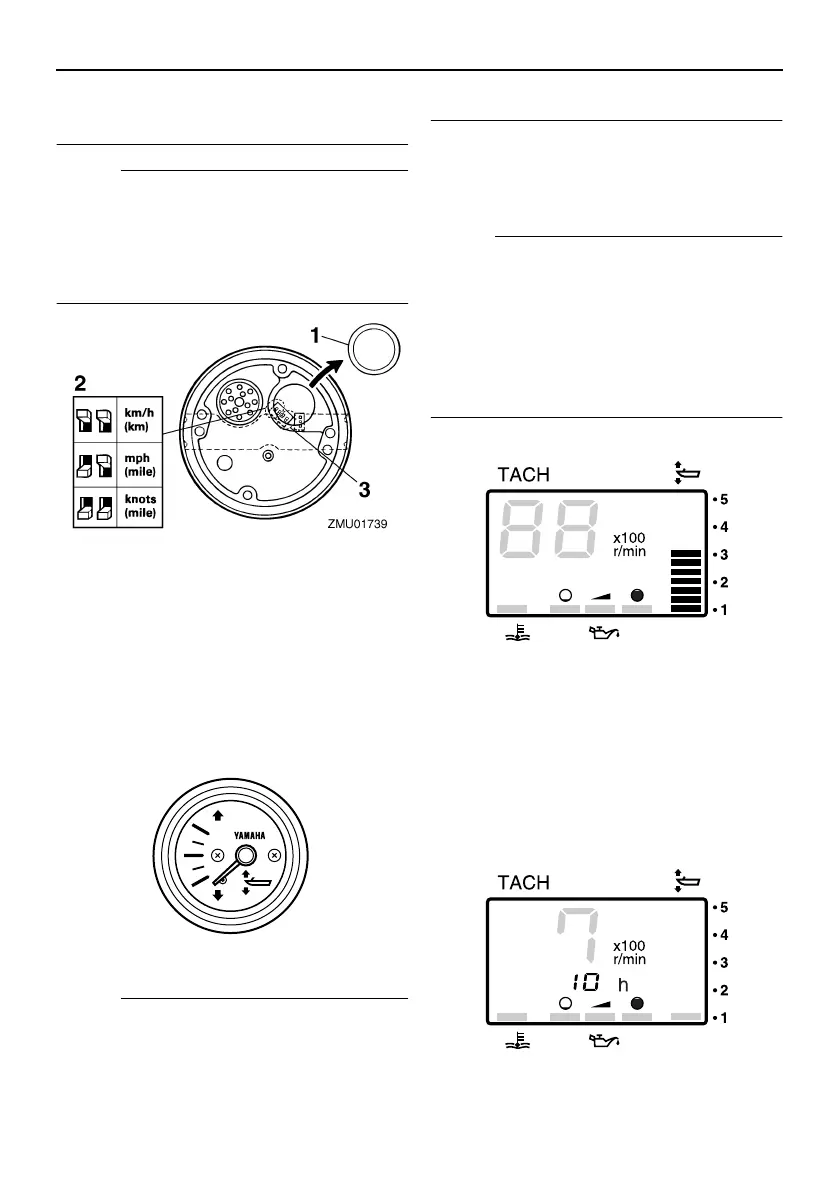

1. Cap
2. Selector switch (for speed unit)
3. Selector switch (for fuel sensor)
ZMU04581
ZMU01869
ZMU01870
