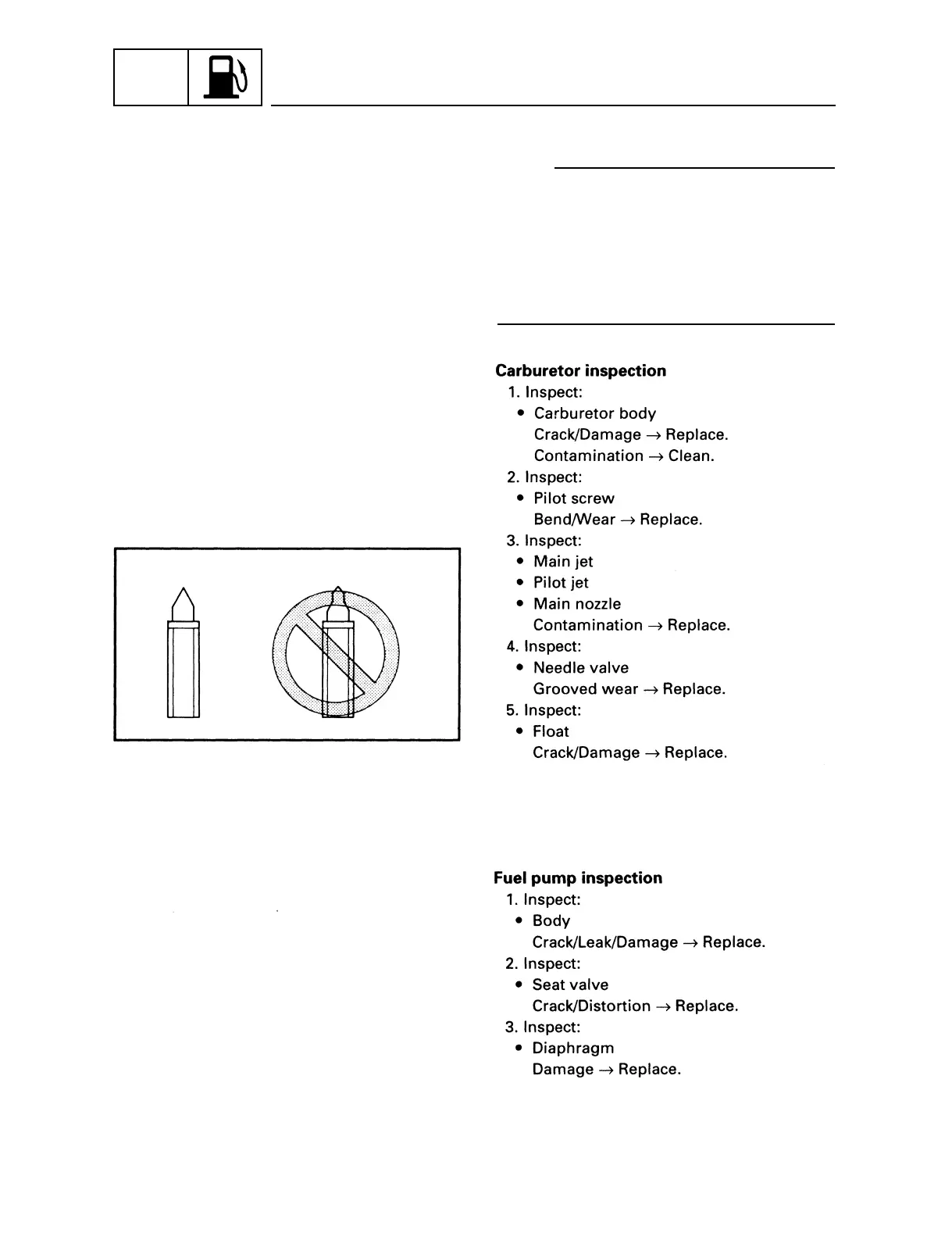

4-7
CARBURETOR
FUEL
SERVICE POINTS
NOTE:
8
Before disassembling the carburetor
, make
sure to note number of times the pilot screw
is turned out from the seated position to its
set position.
8
Do not use steelwire for cleaning the jets as
this may enlarge the jet diameters and seri-
ously affect performance.
Chapter4 03.11.14 20:08 Page 5
40
42
Table of Contents
Important Information
2
Symbols
6
Index
7
General Information
8
Identification
9
Serial Numbers
9
Safety While Working
10
Good Working Practices
11
Safe Disassembly and Assembly
12
Special Tools
13
Specifications
16
General Specifications
17
Maintenance Specifications
19
Electrical Specifications
21
Tightening Torque Table
22
Periodic Inspection and Adjustment
23
Maintenance Interval Chart
24
Fuel System Periodic Service
25
Control System Periodic Service
25
Ignition Timing Adjustment
25
Throttle Link Adjustment
27
Start-In-Gear Protection Adjustment
28
Idle Speed Adjustment
28
Lower Unit Periodic Service
29
Gear Oil Check
29
Lower Unit Leakage Check
30
General Periodic Service
30
Anode Inspection
30
Battery Service
31
Spark Plug Service
32
Greasing Point
33
Fuel System
34
Carburetor Removal
35
Fuel Joint and Fuel Filter Exploded Diagram
35
Fuel Joint and Fuel Filter Removal and Installation Chart
36
Carburetor Removal - Exploded Diagram
37
Carburetor Removal and Installation Chart
38
Carburetor Exploded Diagram
39
Carburetor Removal and Installation Chart (Cont)
40
Carburetor/Fuel Pump Inspection
41
Carburetor Assembly
42
Power Unit
43
Power Unit Removal - Exploded Diagram
45
Recoil Starter
47
Recoil Starter Service Points
49
Flywheel Magneto and Magneto Base Exploded Diagram
51
Flywheel Magneto and Magneto Base Removal and Installation Chart
52
Electrical Unit Exploded Diagram
54
Electrical Unit Removal and Istallation Chart
55
Control Unit Exploded Diagram
56
Reed Valve Exploded Diagram
58
Reed Valve - Removal and Istallation Chart
59
Cylinder Head, Thermostat and Exhaust Cover Exploded Diagram
60
Cylinder Head, Thermostat and Exhaust Cover Removal and Installation Chart
61
Crankcase and Cylinder Body Exploded Diagram
63
Crankcase and Cylinder Body Removal and Installation Chart
64
Piston to Cyinder Clearance
66
Cylinder Body and Crankcase Installation
66
Crank Shaft and Piston Exploded Diagram
67
Crank Shaft and Piston Removal and Installation Chart
68
Crank Shaft and Piston Service Points/Piston Inspection
69
Piston Ring Inspection
70
Crankshaft Inspection
71
Piston and Piston Ring Installation
72
Crankshaft and Piston Installation
72
Lower Unit
73
Lower Unit Removal Exploded Diagram
75
Lower Unit Removal and Installation Chart
76
Water Pump Exploded Diagram
77
Water Pump Removal and Installation Chart
78
Propeller Shaft and Reverse Gear Exploded Diagram
79
Propeller Shaft and Reverse Gear Removal and Installation Chart
80
Propeller Shaft and Reverse Gear Service Points
81
Propeller Shaft Housing Disassembly
81
Propeller Shaft and Reverse Gear
82
Drive Shaft, Forward Gear and Shift Rod Exploded Diagram
84
Drive Shaft, Forward Gear and Shift Rod Removal and Installation Chart
85
Drive Shaft, Forward Gear and Shift Rod Service Points
86
Drive Shaft, Forward Gear and Shift Rod - Lower Case Inspection/Assembly
88
Drive Shaft Oil Seal Housing Assembly
89
Forward Gear Assembly
89
Shimming Exploded Diagram
90
Shim Selection (for USA and Canada)
91
Shim Selection (Except for USA and Canada)
93
Forward Gear Shim
94
Reverse Gear Shim
95
Shimming - Backlash Measurement
96
Bracket Unit
99
Steering Handle and Shift Lever Exploded Diagram
100
Steering Handle and Shift Lever Removal and Installation Chart
101
Steering Handle and Shift Lever Service Points
102
Bottom Cowling Exploded Diagram
103
Bottom Cowling Removal and Installation Chart
104
Upper Case and Exhaust Manifold Exploded Diagram
105
Upper Case and Exhaust Manifold Removal and Installation Chart
106
Upper Case and Exhaust Manifold Service Points
107
Cramp Bracket Exploded Diagram
108
Cramp Bracket Removal and Installatoin Chart
109
Steering and Swivel Bracket Exploded Diagram
110
Steering and Swivel Bracket Removal and Installation Chart
111
Electrical Unit
112
Electrical Components
113
Manual Starter Model
113
Electrical Starter Model
114
Remote Control Model
115
Eletrical Analysis, Inspection
116
Peak Voltage Measurement
116
Ignition System Wiring Diagram
117
Ignition Spark Gap
118
CDI System Peak Voltage
119
Spark Plug Gap Inspection
121
Engine Stop Lanyard Switch
122
Main Switch
122
Starting System Wiring Diagram
123
Starting System Components
124
Starter Relay
125
Starter Motor Exploded Diagram
126
Starter Motor Removal and Installation Chart
127
Pinion Inspection
128
Armature Inspection
128
Brush Holder Inspection
129
Cover Inspection
129
Charging System Wiring Diagram
130
Charging System Peak Voltage
131
Trouble Analysis
132
Troubleshooting Chart
133
