PERIODIC MAINTENANCE AND MINOR REPAIR
6-7
2
3
4
5
6
7
8
9
To install the panel
1. Place the panel in the original po-
sition, and then install the collars
and bolts.
2. Install the seat.

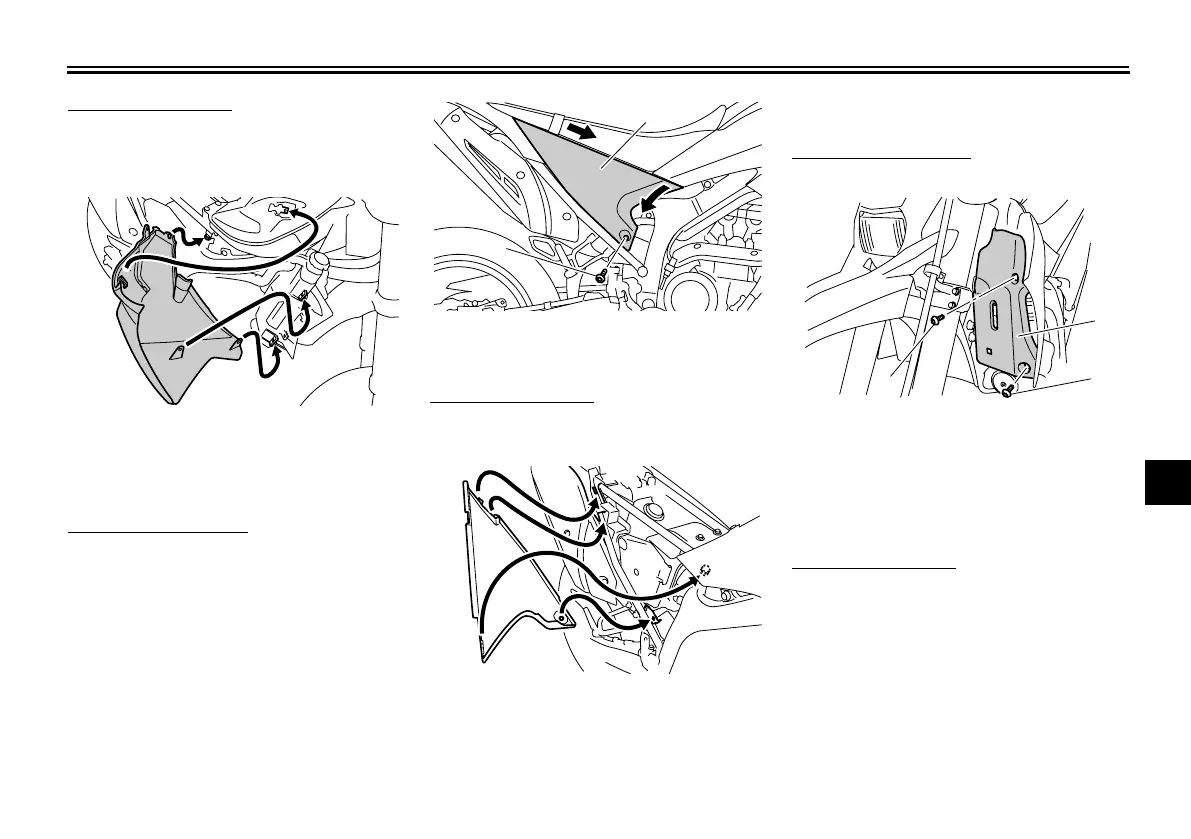

Panel B
To remove the panel
1. Remove the seat. (See
page 3-12.)
2. Remove the bolt, and then remove
the panel as shown.
To install the panel
1. Place the panel in the original po-
sition, and then install the bolt.
2. Install the seat.
Panel C
To remove the panel
1. Remove the bolts.
2. Lift the bottom of the panel slightly,
and then slide the panel forward.
To install the panel
Place the panel in the original position,
and then install the bolts.
1. Bolt
2. Panel B
1
2
1. Panel C
2. Bolt
1
2
2

Yamaha 2008 WR250R Specifications

General

Displacement	250cc
Bore x Stroke	77.0mm x 53.6mm
Compression Ratio	11.8:1
Fuel System	Fuel injection
Final Drive	Chain
Front Tire	80/100-21
Rear Tire	120/80-18
Fuel Capacity	2.0 gal
Seat Height	36.6 in
Wet Weight	295 lb
Engine Type	Liquid-cooled, DOHC, 4-valve single
Ignition	TCI (Transistor Controlled Ignition)
Transmission	6-speed
Front Suspension	Inverted fork, fully adjustable; 10.6-in travel
Rear Suspension	Single shock, fully adjustable; 10.6-in travel
Front Brake	Hydraulic disc, 250mm
Rear Brake	Hydraulic disc, 230mm
Wheelbase	55.9 in
Ground Clearance	11.8 in
