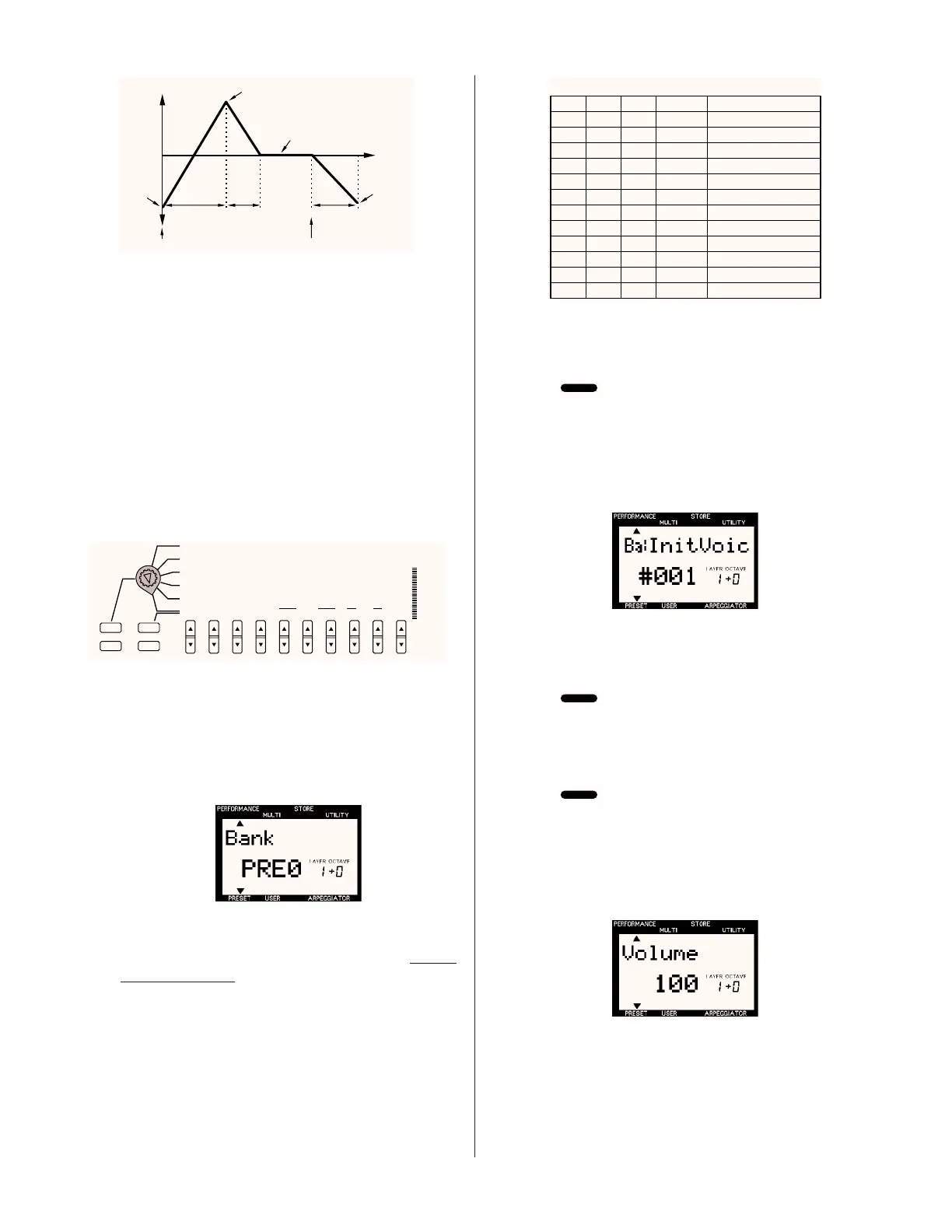

33
Settings:
INIT LEVEL (Initial Level): -64 ~ +63
ATK TIME (Attack Time): -63 ~ +63
ATK LEVEL (Attack Level: -64 ~ +63
DCY TIME (Decay Time): -63 ~ +63
REL TIME (Release Time): -63 ~ +63
REL LEVEL (Release Level): -64 ~ +63
Layer Edit 4 (independently applied to each Layer)
The functions in this row provide parameters which include
fundamental settings such as voice assignment, volume and
panning settings for each Layer. The parameters can be set for
each Layer in a Performance.
■ BANK
This lets you select a Bank, each of which contains up to 128
normal voices. To select a voice, you must first select a Bank
number, and then select a Program number in the PROGRAM
parameter, explained below.
Settings: off, XG000, 001, 003, 006, 008, 012, 014, 016~020, 024,
025, 027, 028, 032~043, 045, 064~072, 096~101, SFX, PRE 0~12
(for Performance only)
PERFORMANCE MULTI
DEMO
STORE UTILITY
BANK PROGRAM
SYSTEM MIDI ASSIGN
VOLUME PAN REV
SEND
CHO
SEND
EFFECT
VARI
SEND
CUTOFF
FILTER
REZ
POLY/
MONO
LAYER
UTILITY
Key On
PITCH
INIT LEVEL
ATK LEVEL
REL LEVEL
Key Off
ATK TIME REL TIME
DCY TIME
TIME
LEVEL
Basic Pitch
Each bank can be selected directly by inputting the corresponding
Bank number using the numeric keypad.
For more information about Banks and Programs (voices),
see the Voice List in the "Data List" book.
■ PROGRAM
This lets you select a voice, or program, from the Bank previously
selected with the BANK parameter, explained above.
Settings:
1~128
Note that the Program numbers here are 1~128 and the
MIDI Program Change numbers are 0~127. To match the MIDI
Program Change number when switching programs using an
external MIDI device, subtract a value of "1" from the Program
number.
For more information about Banks and Programs (voices),
see the Voice List in the "Data List" book.
■ VOLUME
This sets the volume of each Layer. It is possible to assign a
different volume setting for each Layer.
Settings:
0~127
MSB LSB Bank LCD Remarks
0 0 0 XG000 XG
0 1 1 XG001
0 101 101 XG101
64 0 102 SFX XG
63 0 103 PRE0 for Performance Only
63 1 104 PRE1
63 7 110 PRE7
63
63
8
12
111
115
PRE8
PRE12
- - 999 off
Bank Conversion Table for Voices Used in Performances
↓
↓
↓↓↓↓↓
↓↓↓↓
↓
↓
↓
↓
for Performance Only
To Next Page
