2-3
GB
qw
e
r
EMU00051

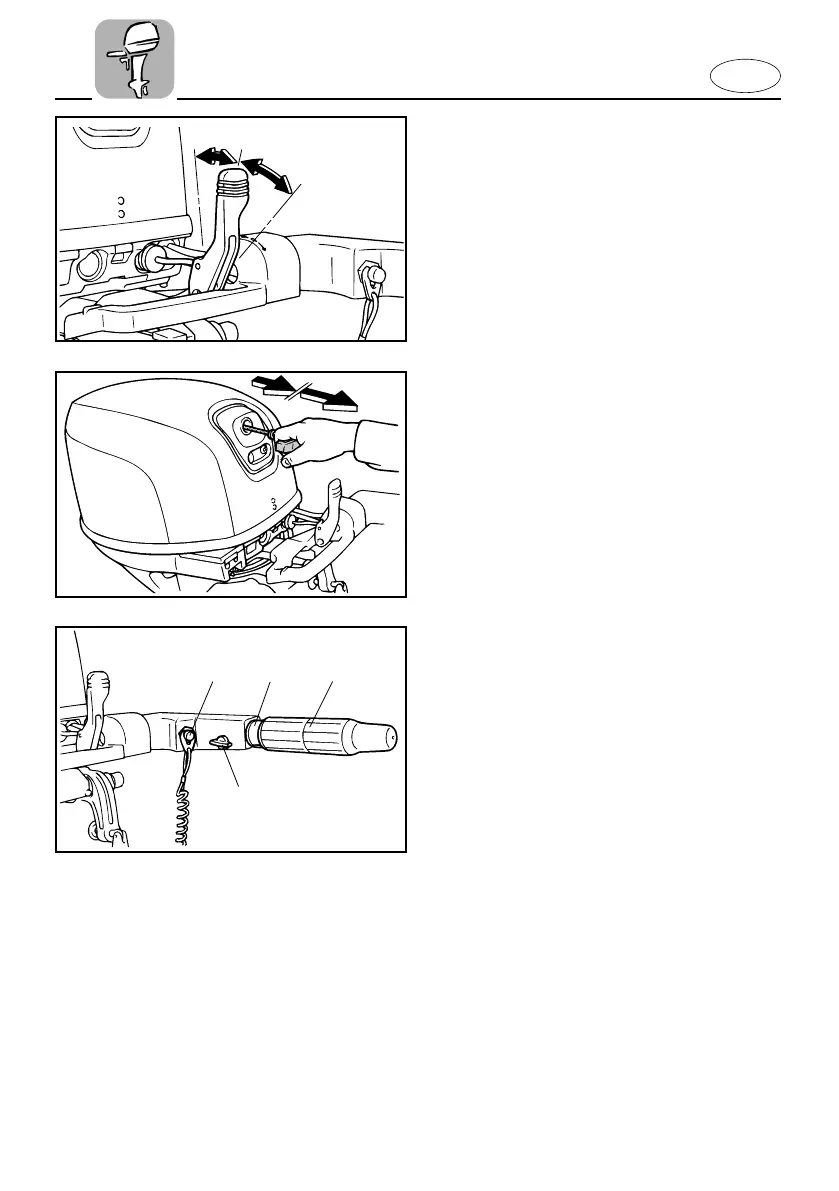

GEAR SHIFT LEVER
(for Tiller control model)
Turning the gear-shift lever towards you
engages the clutch with the forward gear
so that the boat moves ahead. Turning
the lever away from you engages the
reverse gear so that the boat moves
astern.
1 Neutral
2 Forward
3 Reverse
EMU00059
RECOIL STARTER HANDLE
(If equipped)
Pull the handle gently until resistance is
felt. Then vigorously pull the handle
straight out to crank the engine to start it.
EMU00064
TILLER HANDLE
(for Tiller control model)
Moving the tiller handle sideways to
adjust the steering direction. In addition,
this handle contains the functions as fol-
lows.
1 Throttle control grip
2 Throttle indicator
3 Throttle friction adjusting knob/screw
4 Engine stop button / Engine stop lanyard
switch
65W-9-77-2 (E,F,S) 3/25/02 7:36 PM Page 8
